MOXA EDS-P206A-4PoE Series
6-port unmanaged Ethernet switches with 4 IEEE 802.3af/at PoE+ ports
- IEEE 802.3af/at compliant PoE and Ethernet combo ports
- Up to 30 watts per PoE port
- 24/48 VDC wide range redundant power inputs
- Intelligent power consumption detection and classification
- Redundant dual VDC power inputs
- -40 to 75‹C operating temperature range (T models)
The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. The switches can be used to power IEEE 802.3af/at compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
Technology
Standards
IEEE 802.3af/at for Power-over-Ethernet
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
Processing Type
Store and Forward
Flow Control
IEEE 802.3x flow control, back pressure flow control
Switch Properties
MAC Table Size
1 K
Packet Buffer Size
512 KB
Interface
Fiber Ports
100BaseFX ports (SC/ST connector)
RJ45 Ports
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
PoE Pinout
V-, V-, V+, V+ for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A)
LED Indicators
PWR1, PWR2, 10/100M, PoE
Optical Fiber
100BaseFX | ||
Multi-mode | Single-mode | |
Wavelength | 1300 nm | 1310 nm |
Max. TX | -10 dBm | 0 dBm |
Min. TX | -20 sBm | -5 dBm |
RX Sensitivity | -32 dBm | -34 dBm |
Link Budget | 12 dB | 29 dB |
Typical Distance | 5 km (a) 4 km (b) | 40 km (c) |
Saturation | -6 dBm | -3 dBm |
a. 50/125 ƒÊm, 800 MHz*km fiber optic cable
b. 62.5/125 ƒÊm, 500 MHz*km fiber optic cable
c. 9/125 ƒÊm single-mode fiber optic cable
Power Requirements
Input Voltage
24/48 (20 to 60 V) VDC, redundant dual inputs
Input Current
Max 7.5 A @ 24 VDC (supports up to 4 ports at 30 watts per PoE port)
Overload Current Protection
Present
Connection
1 removable 4-contact terminal block
Reverse Polarity Protection
Present
Physical Characteristics
Housing
Metal, IP30 protection

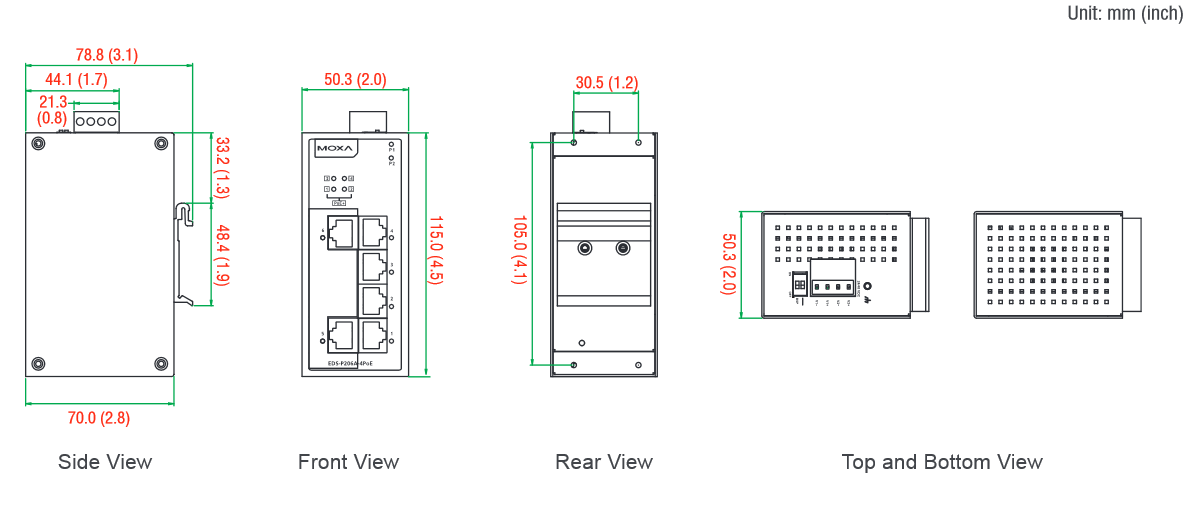

Dimensions
50.3 ~ 115 ~ 70 mm (1.98 x 4.53 x 2.76 in)
Weight 375 g
Installation
DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature
Standard Models: 0 to 60‹C (32 to 140‹F)
Wide Temp. Models: -40 to 75‹C (-40 to 167‹F)
Storage Temperature
-40 to 85‹C (-40 to 185‹F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Safety
UL 508
EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
MTBF (mean time between failures)
Time
645,138 hrs
Database
Telcordia (Bellcore), GB
Ordering Information
EDS-P206A-4PoE | Unmanaged Ethernet switch with 2 10/100BaseT(X) ports, and 4 PoE ports, 0 to 60‹C operating temperature |
EDS-P206A-4PoE-MM-SC | Unmanaged Ethernet switch with 4 PoE ports, and 2 100BaseFX multi-mode ports with SC connectors, 0 to 60‹C operating temperature |
EDS-P206A-4PoE-MM-SC-T | Unmanaged Ethernet switch with 4 PoE ports, and 2 100BaseFX multi-mode ports with SC connectors, -40 to 75‹C operating temperature |
EDS-P206A-4PoE-MM-ST | Unmanaged Ethernet switch with 4 PoE ports, and 2 100BaseFX multi-mode ports with ST connectors, 0 to 60‹C operating temperature |
EDS-P206A-4PoE-MM-ST-T | Unmanaged Ethernet switch with 4 PoE ports, and 2 100BaseFX multi-mode ports with ST connectors, -40 to 75‹C operating temperature |
EDS-P206A-4PoE-M-SC | Unmanaged Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE ports, and 1 100BaseFX multi-mode port with SC connector, 0 to 60‹C operating temperature |
EDS-P206A-4PoE-M-SC-T | Unmanaged Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE ports, and 1 100BaseFX multi-mode port with SC connector, -40 to 75‹C operating temperature |
EDS-P206A-4PoE-M-ST | Unmanaged Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE ports, and 1 100BaseFX multi-mode port with ST connector, 0 to 60‹C operating temperature |
EDS-P206A-4PoE-M-ST-T | Unmanaged Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE ports, and 1 100BaseFX multi-mode port with ST connector, -40 to 75‹C operating temperature |
EDS-P206A-4PoE-S-SC | Unmanaged Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE ports, and 1 100BaseFX single-mode port with SC connector, 0 to 60‹C operating temperature |
EDS-P206A-4PoE-S-SC-T | Unmanaged Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE ports, and 1 100BaseFX single-mode port with SC connector, -40 to 75‹C operating temperature |
EDS-P206A-4PoE-SS-SC | Unmanaged Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE ports, and 2 100BaseFX single-mode ports with SC connector, 0 to 60‹C operating temperature |
EDS-P206A-4PoE-SS-SC-T | Unmanaged Ethernet switch with 4 PoE ports, and 2 100BaseFX single-mode ports with SC connector, -40 to 75‹C operating temperature |
EDS-P206A-4PoE-T | Unmanaged Ethernet switch with 2 10/100BaseT(X) ports, and 4 PoE ports, -40 to 75‹C operating temperature |
