Multi-Tech MultiVOIP FX SIP gateway
Product is End of Life :
Voice over IP SIP Gateways
- 2, 4, or 8 ports for communication over an existing IP network or the Internet
- Ethernet connectivity and full IP compatibility with existing routers and WAN infrastructure
- Supports FXS/FXO on each channel for direct analog connection to phones, key telephones, fax machines, PBX extensions, PSTN lines or PBX trunks
- Supports SIP for sending voice over the Internet
- Voice compression to 5.3K bps per call with support for multiple algorithms, including ITU G.723 and G.729
- VAD and CNG support
- QoS via DiffServ or 802.1p
- PSTN failover automatically routes calls over the PSTN network if the IP network is down
- Supports SIP supplementary services including Call Forward, Call Transfer and Call Hold
- T.38 real-time fax relay for interoperability among other VOIP equipment
- Configuration and management using a web browser or Windows
- Two-year warranty

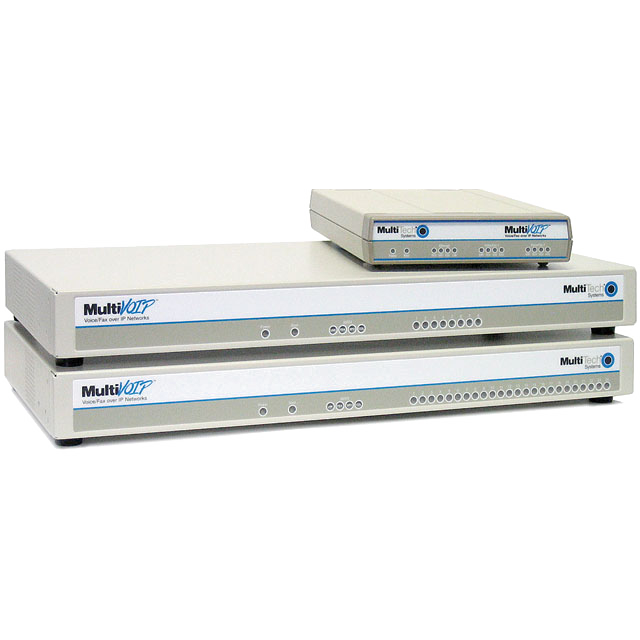

The MultiVOIP® FX SIP gateway provides toll-free voice and fax communications over the Internet or Intranet. Available in 2-, 4-, and 8-port models, the MultiVOIP FX gateway connects directly to phones, fax machines, key systems, PSTN lines, or a PBX to provide real-time, toll-quality voice connections to any office on your VOIP network. The MultiVOIP FX gateway is designed to maximize the investments you’ve already made in your data and voice network infrastructure.
Highlights
Toll Bypass Long Distance Calling

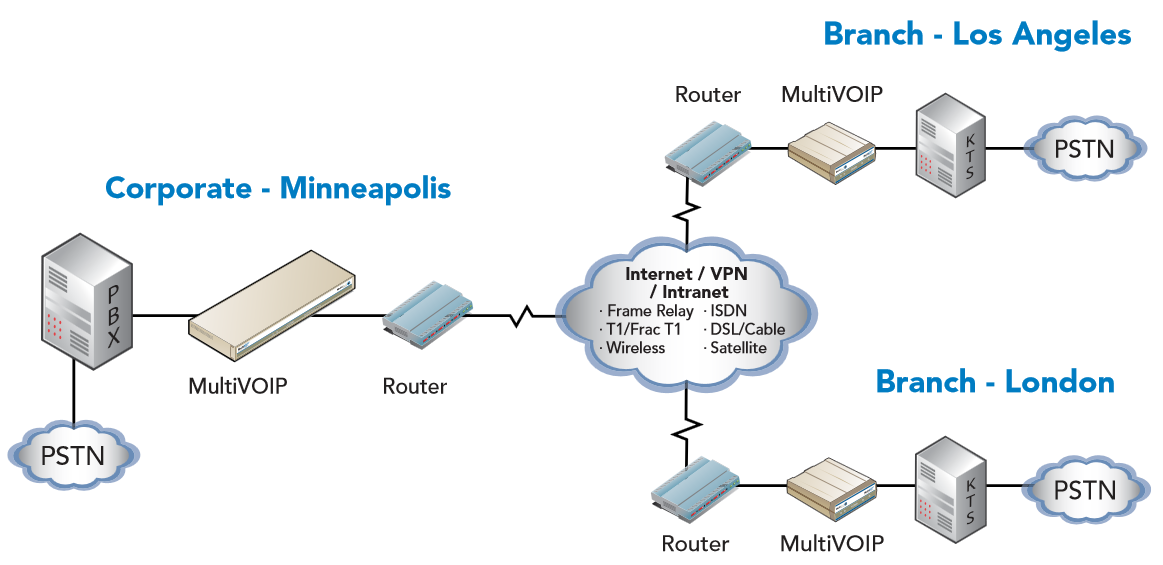

- The MultiVOIP FX gateway is targeted at multi-location businesses looking to reduce toll charges between frequently called sites. Typically inter-office calling represents 25-40% of a company`s total long distance bill. To bypass these charges, each office installs and configures a MultiVOIP FX gateway on their network and connects it to their existing phone equipment to place calls, send faxes or make modem connections to the other offices on the VOIP network.
Off-net Calling
- Telecommuters or customers off the IP network can make free long distance calls by dialing into a local MultiVOIP FX gateway and placing toll-free calls to any location on the VOIP network. You can even have a MultiVOIP FX gateway at a remote site dial a local phone number for a free person-to-person long distance call.
Off-premise Voice Extensions
- The MultiVOIP FX gateway extends the reach of a company`s PBX into remote office/SOHO locations without installing another PBX. Now, anyone can place calls to the remote office by simply dialing an extension number. With support for SIP supplementary services, the MultiVOIP FX gateway provides for call transfer, call forwarding and call hold.
Bandwidth Management
- Bandwidth is used only when someone is speaking. The silence suppression/Voice Activity Detection (VAD) feature is an option that frees unused call bandwidth for data traffic. This is significant, since callers are usually silent for 60 percent of the call. When using silence suppression, the gateway also offers Comfort Noise Generation (CNG) at the receiving end so the user knows the line has not dropped. In addition, the MultiVOIP FX gateway supports voice compression standards like G.729 (8:1) and G.723 (10:1). These standards help minimize the bandwidth required for voice.
Ordering Information
Product | Description | Includes |
MVP210-FX | MultiVOIP 2-Channel SIP Gateway | |
MVP210-FX-EU | 2-Channel VOIP SIP Gateway (FXS/FXO) | Includes: Gateway, DB9-to-RJ45 cable, power supply, cabling guide and product CD |
MVP410-FX | MultiVOIP 4-Channel SIP Gateway | |
MVP410-FX-EU | 4-Channel VOIP SIP Gateway (FXS/FXO) | Includes: Gateway, DB9-to-RJ45 cable, mounting brackets and screws, power supply, cabling guide and product CD |
MVP810-FX | MultiVOIP 8-Channel SIP Gateway | |
MVP810-FX-EU | 8-Channel VOIP SIP Gateway (FXS/FXO) | Includes: Gateway, DB9-to-RJ45 cable, mounting brackets and screws, power supply, cabling guide and product CD |
MVP428-FX | MultiVOIP FX 4-Channel Expansion Card | |
MVP428-FX | 4-Channel Expansion Card | For use with MVP410FX MultiVOIP Gateways |
