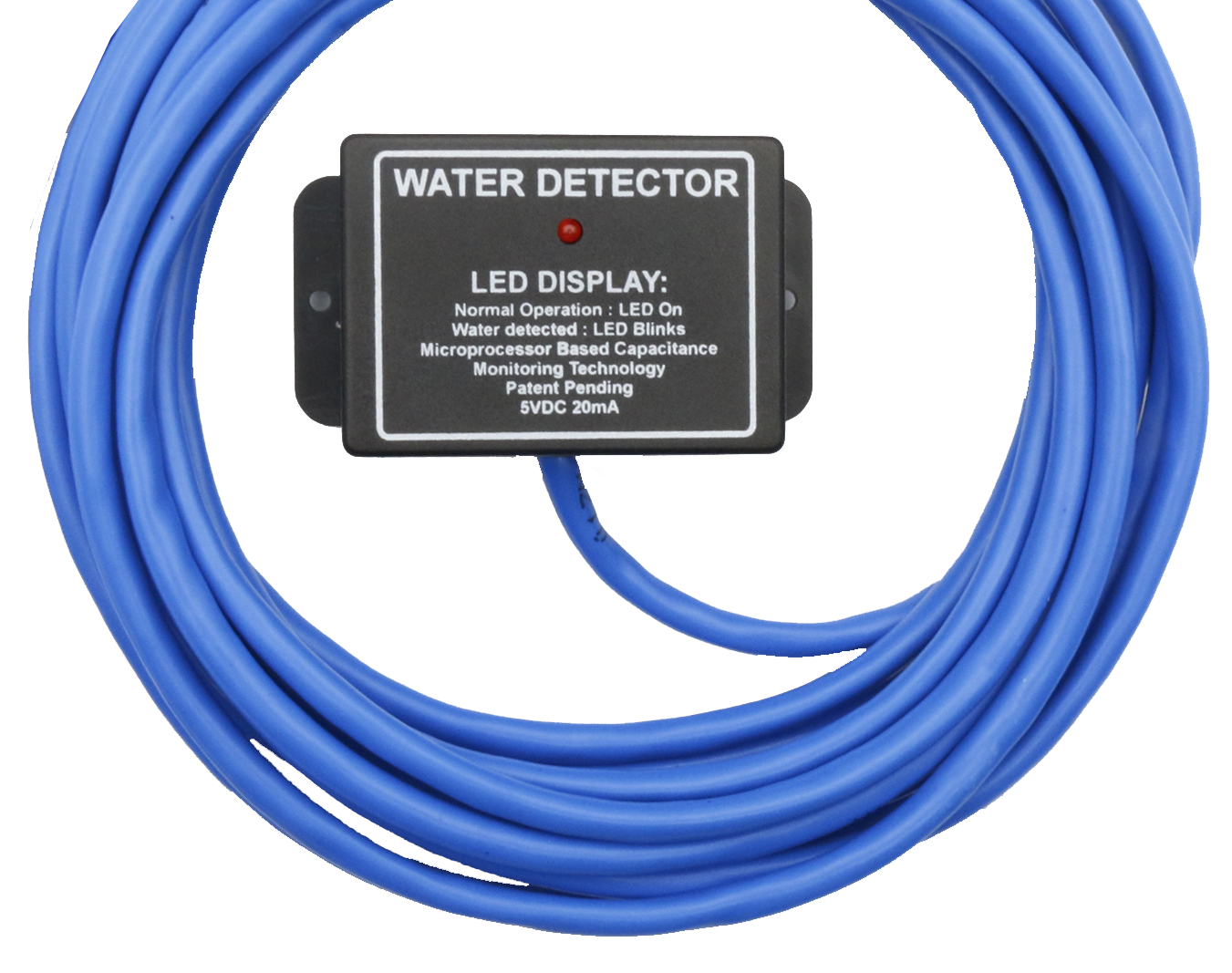

AKCP spotWater Detector
The spotWater detector is an advanced microprocessor based design capable of detecting distilled water.
- Detect presence of water
- Works with securityProbe and sensorProbe series base units
- Powered by the base unit, no additional power necessary
- Maximum cable extension of 150m (500ft)
- Even detects the presence of distilled water
The spotWater detector is an advanced microprocessor based design capable of detecting distilled water. Standard water detectors are unable to detect distilled water and water with other impurities due to them using a resistance type circuit. These resistance types rely on electrolytes present in the water, therefore being unable to detect distilled water due to it’s high resistance.
The entire circuit is encased in epoxy giving it a waterproof finish and able to withstand being submerged in water for prolonged periods. It has an SNMP OID for monitoring across a network, and will therefore report it’s critical condition at anytime before returning to it’s normal state.
Notifications can be sent to you via SNMP traps, or E-mail (sensorProbe base units) or using any of the wide range of alerts available on AKCP base units.
The entire circuit is encased in epoxy giving it a waterproof finish and able to withstand being submerged in water for prolonged periods. It has an SNMP OID for monitoring across a network, and will therefore report it’s critical condition at anytime before returning to it’s normal state.
Notifications can be sent to you via SNMP traps, or E-mail (sensorProbe base units) or using any of the wide range of alerts available on AKCP base units.
Specifications
Measurement Range
Measurement Accuracy
Sensor Type
Power source
Communications Cable
Measurement Rate
Note
Measurement Range
- Wet or Dry ( -20°C +60°C)
Measurement Accuracy
- Able to measure distilled water
Sensor Type
- Patent pending, microprocessor controlled, capacitance measurement technology
Power source
- Powered by the sensorProbe. No additional power needed
Communications Cable
- RJ-45 jack to sensor using UTP Cat 5 wire, Maximum extension cable length 150m (500 ft.) with approved low capacitance shielded cable or UTP
Measurement Rate
- Multiple readings every second
- sensorProbe auto detects the presence of the water sensor
- Up to 2 spotWater detectors per sensorProbe2, 8 per sensorProbe8 and securityProbe
- Full autosense including disconnect alarm
Note
- AKCP does not recommend the spotWater Sensor to be placed on a conductive surface. If this is required, add the Insulation Coating P/N : WSIC to each spotWater Sensor ordered.
