MOXA PT-7728-PTP Series
IEC 61850-3 modular IEEE 1588 v2 rackmount Ethernet switches
- IEEE 1588 PTP Features Substation Reference Book
- IEEE 1588v2 PTP (Precision Time Protocol) with hardware time stamping for precise time synchronization of networks
- Support for both IEEE 1588 Boundary Clock and Transparent Clock
- Support for both End to End (2-step) and Peer to Peer (2-step) modes in Transparent Clock
- High precision time accuracy (under 1 ìs)
- General Features and Benefits
- IPv6 Ready logo awarded (IPv6 Logo Committee certified)
- DHCP Option 82 for IP address assignment with different policies
- Modbus/TCP industrial Ethernet protocol supported
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
- IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
- IEEE 802.3ad, LACP for optimum bandwidth utilization
- Bandwidth management prevents unpredictable network status
- Multi-port mirroring for online debugging
- Automatic warning by exception through email, relay output
- RMON for efficient network monitoring and proactive capability
- Automatic recovery of connected device’s IP addresses
- Line-swap fast recovery
- Configurable by Web browser, Telnet/Serial console, CLI, Windows utility, and ABC-01 automatic backup configurator
- Cyber-security Features
- User passwords with multiple levels of security protect against unauthorized configuration
- SSH/HTTPS is used to encrypt passwords and data
- Lock switch ports with 802.1X port-based network access control so that only authorized clients can access the port
- Disable one or more ports to block network traffic
- 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports
- Secure switch ports so that only specific devices and/or MAC addresses can access the ports
- SNMPv3 provides encrypted authentication and access security
The PowerTrans PT-7728-PTP switches are designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-7728-PTP’s redundant ring, and dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. Moxa’s PT-7728-PTP IEC 61850-3 Fast Ethernet switches support the latest version of IEEE 1588 technology (IEEE 1588v2 PTP) to fulfill precision time synchronization requirements for protection and control applications. These Ethernet switches guarantee time-stamping accuracy within 1 ìs for the IEC 61850 process layer. They can be configured for 1588 v2 Master, Boundary Clock, and Transparent Clock functionality. The modular design of the PT-7728-PTP also makes network planning easy, and allows greater flexibility by letting you install up to 14 IEEE 1588 Fast Ethernet ports or up to 24 non-IEEE 1588 Ethernet ports and 4 Gigabit ports. Along with a choice of either front or rear wiring, these features together make the PT-7728-PTP suitable for a variety of industrial applications.
Technology
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Protocols
IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, LACP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588v2 PTP, IPv6
MIB
MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control
IEEE 802.3x flow control, back pressure flow control
Switch Properties
Priority Queues
4
Max. Number of Available VLANs
64
VLAN ID Range
VID 1 to 4094
IGMP Groups
256
Interface
IEEE 1588 PTP
Up to 12 10/100BaseT(X) or 14 100BaseFX
(multi-mode, ST or SC connector) IEEE 1588 ports with hardware time stamping
Fast Ethernet
- Slots 1, 2, and 3 for combinations of 2, 4, 6, or 8-port PM-7200 Fast Ethernet modules with 10/100BaseT(X) (TP/M12 interface), 100BaseFX (SC/ST/MTRJ connector), or 100BaseSFP
- Slot 4 for BNC port and 100BaseFX (ST connector)
Gigabit Ethernet
Slot 4 for 2 or 4-port PM-7200 Gigabit Ethernet combo module, 10/100/1000BaseT(X) or 1000BaseSFP
Console Port
RS-232 (RJ45)
System LED Indicators
STAT, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL
Mode LED Indicators
LNK/ACT, FDX/HDX, RING/CHAIN PORT, COUPLER PORT, SPEED
Alarm Contact
1 relay output with current carrying capacity of 3 A @ 30 VDC or 3 A @ 240 VAC
Power Requirements
Input Voltage
- 24 VDC (18 to 36 V)
- 48 VDC (36 to 72 V)
- 110/220 VDC/VAC (88 to 300 VDC, 85 to 264 VAC)
Input Current
(all ports are equipped with fiber)
- Max. 2.58 A @ 24 VDC
- Max. 1.21 A @ 48 VDC
- Max. 0.64/0.33 A @ 110/220 VDC
- Max. 0.53/0.28 A @ 110/220 VAC
Overload Current Protection
Present
Connection
10-pin terminal block
Reverse Polarity Protection
Present
Physical Characteristics
Housing
IP30 protection

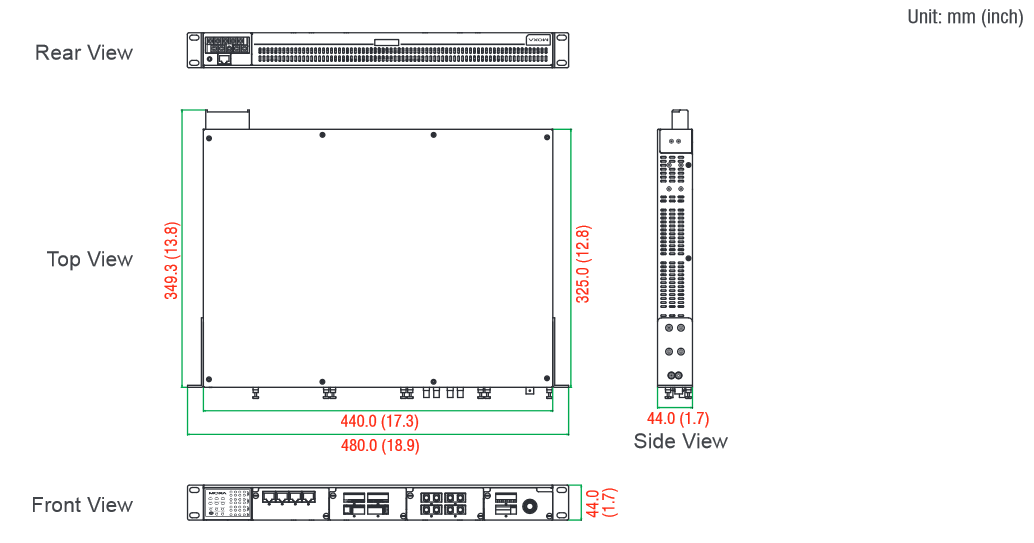

Dimensions
440 x 44 x 325 mm (17.32 x 1.73 x 12.80 in)
Weight
5900 g
Installation
19’’ rack mounting
Environmental Limits
Operating Temperature
-40 to 85°C (-40 to 185°F), cold start requires min. of 100 VAC at -40°C
Storage Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Safety
UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1
EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A
Power Automation
IEC 61850-3, IEEE 1613
Ordering Information | |
Available Models | |
PT-7728-PTP-F-24-HV | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on front panel, 2 isolated power supplies (24 VDC and 88-300 VDC or 85-264 VAC), -40 to 85?C operating temperature |
PT-7728-PTP-R-24-HV | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on rear panel, 2 isolated power supplies (24 VDC and 88-300 VDC or 85-264 VAC), -40 to 85?C operating temperature |
PT-7728-PTP-F-48 | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on front panel, 1 isolated power supply (48 VDC), -40 to 85?C operating temperature |
PT-7728-PTP-R-48 | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on rear panel, 1 isolated power supply (48 VDC), -40 to 85?C operating temperature |
PT-7728-PTP-F-48-48 | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on front panel, 2 isolated power supplies (48 VDC), -40 to 85?C operating temperature |
PT-7728-PTP-R-48-48 | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on rear panel, 2 isolated power supplies (48 VDC), -40 to 85?C operating temperature |
PT-7728-PTP-F-HV | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on front panel, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85?C operating temperature |
PT-7728-PTP-R-HV | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on rear panel, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85?C operating temperature |
PT-7728-PTP-F-HV-HV | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on front panel, 2 isolated power supplies (88-300 VDC or 85-264 VAC), -40 to 85?C operating temperature |
PT-7728-PTP-R-HV-HV | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on rear panel, 2 isolated power supplies (88-300 VDC or 85-264 VAC), -40 to 85?C operating temperature |
PT-7728-PTP-F-24 | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on front panel, 1 isolated power supply (24 VDC), -40 to 85?C operating temperature |
PT-7728-PTP-R-24 | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on rear panel, 1 isolated power supply (24 VDC), -40 to 85?C operating temperature |
PT-7728-PTP-F-24-24 | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on front panel, 2 isolated power supplies (24 VDC), -40 to 85?C operating temperature |
PT-7728-PTP-R-24-24 | IEC 61850-3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, 1 slot for a Gigabit Ethernet module, or 4 slots for fast Ethernet modules, for a total of up to 24+4G ports, cabling on rear panel, 2 isolated power supplies (24 VDC), -40 to 85?C operating temperature |
Compatible Modules
| |
SFP-1G10ALC | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature |
SFP-1G10ALC-T | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature |
SFP-1G10BLC | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature |
SFP-1G10BLC-T | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature |
SFP-1G20ALC | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature |
SFP-1G20ALC-T | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature |
SFP-1G20BLC | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature |
SFP-1G20BLC-T | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature |
SFP-1G40ALC | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature |
SFP-1G40ALC-T | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature |
SFP-1G40BLC | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature |
SFP-1G40BLC-T | WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature |
SFP-1GEZXLC | SFP module with 1 1000BaseEZX port with LC connector for 110 km transmission, 0 to 60°C operating temperature |
SFP-1GLHLC | SFP module with 1 1000BaseLH port with LC connector for 30 km transmission, 0 to 60°C operating temperature |
SFP-1GLHLC-T | SFP module with 1 1000BaseLH port with LC connector for 30 km transmission, -40 to 85°C operating temperature |
SFP-1GLHXLC | SFP module with 1 1000BaseLHX port with LC connector for 40 km transmission, 0 to 60°C operating temperature |
SFP-1GLHXLC-T | SFP module with 1 1000BaseLHX port with LC connector for 40 km transmission, -40 to 85°C operating temperature |
SFP-1GLSXLC | SFP module with 1 1000BaseLSX port with LC connector for 2 km transmission, 0 to 60°C operating temperature |
SFP-1GLSXLC-T | SFP module with 1 1000BaseLSX port with LC connector for 2 km transmission, -40 to 85°C operating temperature |
SFP-1GLXLC | SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, 0 to 60°C operating temperature |
SFP-1GLXLC-T | SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, -40 to 85°C operating temperature |
SFP-1GSXLC | SFP module with 1 1000BaseSX port with LC connector for 0.5 km transmission, 0 to 60°C operating temperature |
SFP-1GSXLC-T | SFP module with 1 1000BaseSX port with LC connector for 0.5 km transmission, -20 to 75°C operating temperature |
SFP-1GZXLC | SFP module with 1 1000BaseZX port with LC connector for 80 km transmission, 0 to 60°C operating temperature |
SFP-1GZXLC-T | SFP module with 1 1000BaseZX port with LC connector for 80 km transmission, -40 to 85°C operating temperature |
| |
SFP-1FELLC-T | SFP module with 100Base single-mode with LC connector for 80 km transmission, -40 to 85°C operating temperature |
SFP-1FEMLC-T | SFP module with 100Base multi-mode with LC connector for 4 km transmission, -40 to 85°C operating temperature |
SFP-1FESLC-T | SFP module with 100Base single-mode with LC connector for 40 km transmission, -40 to 85°C operating temperature |
| |
PM-7200-2GTXSFP | Gigabit Ethernet module with 2 10/100/1000BaseT(X) or 1000BaseSFP slot combo ports |
PM-7200-2MSC4TX | Fast Ethernet module with 2 100BaseFX multi-mode ports with SC connectors and 4 10/100BaseT(X) ports |
PM-7200-2MST4TX | Fast Ethernet module with 2 100BaseFX multi-mode ports with ST connectors and 4 10/100BaseT(X) ports |
PM-7200-2SSC | Fast Ethernet module with 2 100BaseFX single-mode ports with SC connectors |
PM-7200-2SSC4TX | Fast Ethernet module with 2 100BaseFX single-mode ports with SC connectors and 4 10/100BaseT(X) ports |
PM-7200-4GTXSFP | Gigabit Ethernet module with 4 10/100/1000BaseT(X) or 1000BaseSFP slot combo ports |
PM-7200-4M12 | Fast Ethernet module with 4 10/100BaseT(X) ports with M12 connectors |
PM-7200-4MSC2TX | Fast Ethernet module with 4 100BaseFX multi-mode ports with SC connectors and 2 10/100BaseT(X) ports |
PM-7200-4MST2TX | Fast Ethernet module with 4 100BaseFX multi-mode ports with ST connectors and 2 10/100BaseT(X) ports |
PM-7200-4SSC2TX | Fast Ethernet module with 4 100BaseFX single-mode ports with SC connectors and 2 10/100BaseT(X) ports |
PM-7200-6MSC | Fast Ethernet module with 6 100BaseFX multi-mode ports with SC connectors |
PM-7200-6MST | Fast Ethernet module with 6 100BaseFX multi-mode ports with ST connectors |
PM-7200-6SSC | Fast Ethernet module with 6 100BaseFX single-mode ports with SC connectors |
PM-7200-8SFP | Fast Ethernet module with 8 100BaseSFP slots |
PM-7200-8TX | Fast Ethernet module with 8 10/100BaseT(X) ports |
PM-7200-1BNC2MST-PTP | Fast Ethernet module for PT-7728-PTP series with 2 100BaseFX multi-mode ports with ST connectors, 1 PPS output with BNC connector, hardware-based IEEE 1588 PTP V2 protocol support |
PM-7200-8MTRJ | Fast Ethernet module with 8 100BaseFX multi-mode ports with MTRJ connectors |
PM-7200-4MST-FL | 10Base-FL Fast Ethernet with 4 10BaseFL multi-mode ports with ST connectors |
PM-7200-4TX-PTP | Fast Ethernet module for PT-7728-PTP series with 4 10/100BaseT(X) ports, hardware-based IEEE 1588 PTP V2 protocol support |
PM-7200-4MST-PTP | Fast Ethernet module for PT-7728-PTP series with 4 100BaseFX multi-mode ports with ST connectors, hardware-based IEEE 1588 PTP V2 protocol support |
PM-7200-4MSC-PTP | Fast Ethernet module for PT-7728-PTP series with 4 100BaseFX multi-mode ports with SC connectors, hardware-based IEEE 1588 PTP V2 protocol support |
