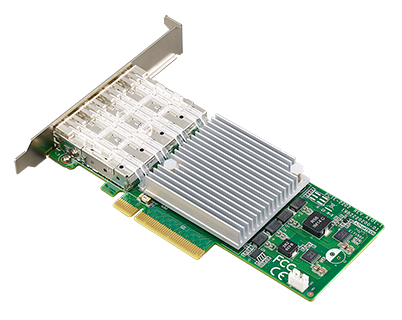

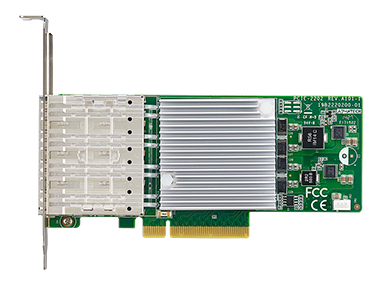

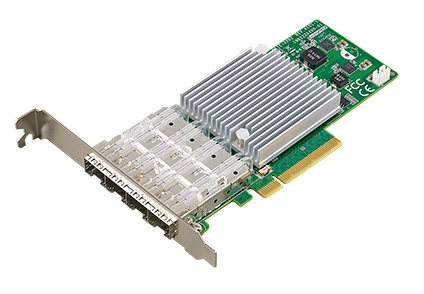

Advantech PCIE-2230
Quad Port Fiber 10GbE Ethernet PCI Express Server Adapter with Intel® XL710-BM1
- 1 x Intel® Ethernet Controller XL710-BM1
- 4 x 10GbE SFP+ ports
- Supports 10GBASE-SR and 10GBASE-LR transceivers
- PCIe gen. 3 x8 host interface
- Supports SR-IOV based virtualization
- Advanced virtualization and network overlay support
- Low profile and full height form factors
Advantech’s PCIE-2230 is a low-profile quad port 10GbE Ethernet PCI Express server adapter based on the Intel® Ethernet Controller XL710-BM1. By supporting a PCI Express gen. 3 x8 host interface, this adapter provides sufficient bandwidth for line rate traffic on all four 10GbE ports. Quad SFP ports can be configured to support a variety of optical transceivers such as 10GBASE-SR and 10GBASE-LR optical modules as well as direct attach cables. Improved support for virtualization, including VMDq, SR-IOV and VEB make the PCIE-2230 a perfect fit for virtualized environments and applications with network overlays. Packet filtering, load balancing and protocol offload capabilities further enhance efficiency by saving valuable processing time on the host.
PCIE-2230 is an ideal network interface solution for multi-tenant environments and Network Function Virtualization as well as networking applications such as WAN optimization and cyber security.
PCIE-2230 is an ideal network interface solution for multi-tenant environments and Network Function Virtualization as well as networking applications such as WAN optimization and cyber security.
Specifications
- Controller
- Intel® XL710-BM1 MAC+PHY
Physical Functions
4
Virtual Functions
128
Virtualization Support
VMDq, SRIOV, VEB
Host Interface
- PCI Express
8 lanes gen. 3
Network Interfaces
- Ports
4 SFP+ cages
Media
10GBASE-SR, -LR, -ER, -T transceivers, Direct Attach cables
LEDs (per port)
Link/Act (Green/ Green Blink)
Speed: 10GbE (Green), GbE (Amber)
Software support
- Operating Systems
Red Hat, CentOS Linux (Windows Server and FreeBSD under investigation)
Virtualization
KVM (VMWare under investigation)
others
Intel® DPDK
Power consumption
- +12V
9W
Environment
- Operating Humidity
0 ~ 90%, non-condensing
Operating Temperature
0 ~ 45° C (32 ~ 113° F)
Storage
-40 ~ 65° C (-40 ~ 149° F)
Mechanical Specifications
- Board Dimensions
167 x 68.9mm (PCIe low profile)
Bracket
Full height and low profile options available
Compliance
- EMC Certifications
FCC, CE Class A
