Icron USB 3.0 Spectra 3001-15
Short-range USB 3.0 active copper cable
- USB 3.0 extension for 15m
- Supports USB 3.0 throughputs up to 5Gbps
- Bus powered from host PC, no external power supply needed
- USB 3.0 device port provides 5V, 900mA power
- Second USB power connector for use if additional power is required

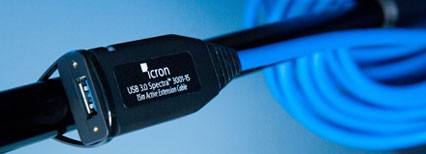

- Locking USB connector
- Slots on device port for convenient cable tie mounting
- Rugged grade cabling
- Status LED at device port with power, enumeration and over-current indication
- Works with AIA USB3 Vision™ compliant devices
- ExtremeUSB® suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, Mac OS X®, and Linux®

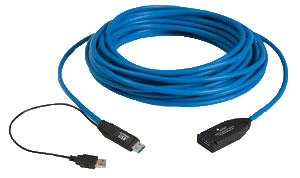

The USB 3.0 Spectra™ 3001-15 is a rugged grade single-port USB 3.0 SuperSpeed active copper extension cable, a perfect short-range extension solution when up to 15 meters distance is required for your application. The Spectra 3001-15 cable supports throughput of 5Gbps, features a locking USB 3.0 port delivering 900mA power, and is bus powered so no external power outlet is required. This cable is well suited for AIA USB3 Vision™ camera applications, and comes with a two year warranty. Note: backward compatibility to USB 2.0/1.1 is not supported.
USB 3.0’s distance limit is approximately 3 meters. When up to 15 meters is required, consider the USB 3.0 Spectra 3001-15 active copper cable. This rugged bus-powered active cable supports USB 3.0 5Gbps throughputs and provides 5V/900mA without the need for an external power source. A true plug-and-play solution, the Spectra 3001-15 cable is compatible with all leading operating systems and features a locking USB port as specified by AIA USB3 Vision™. Backward compatibility to USB 2.0/1.1 is not supported by this particular extender.
USB 3.0’s distance limit is approximately 3 meters. When up to 15 meters is required, consider the USB 3.0 Spectra 3001-15 active copper cable. This rugged bus-powered active cable supports USB 3.0 5Gbps throughputs and provides 5V/900mA without the need for an external power source. A true plug-and-play solution, the Spectra 3001-15 cable is compatible with all leading operating systems and features a locking USB port as specified by AIA USB3 Vision™. Backward compatibility to USB 2.0/1.1 is not supported by this particular extender.
Specifications
RANGE
- Active Copper Cable:
15m (49.21 ft)
SPEEDS
- USB 3.0:
Up to 5Gbps (Not backward compatible with USB 2.0/1.1)
PHYSICAL
- USB Connector on Device Side
1 x USB 3.0 Type A Locking Receptacle
USB Connectors on Host Side:
1 x USB 3.0 Type A Host Connector;
and 1 x USB Type A Power Connector (required for devices drawing more than 2.5W)
Cable Diameter:
6.9mm (0.27″)
Jacket Material:
PVC
Bend Radius:
28mm (1.10″)
Mounting Slots on Device Side:
Slots for Cable Tie
POWER
- Power Source:
Bus power
Available Current:
5V, 900mA
ENVIRONMENTAL
- Operating Temperature:
0°C to 50°C (32°F to 122°F)
Storage Temperature:
-20°C to 70°C (-4°F to 170°F)
Operating Humidity:
20% to 80% relative humidity, non-condensing
Storage Humidity:
10% to 90% relative humidity, non-condensing
COMPLIANCE
- EMC:
FCC (Class B), CE (Class B)
Environmental:
RoHS2 (CE)
Flammability:
VW-1 (UL 1581)
Machine Vision:
Works with AIA USB3 Vision™ compliant devices
The USB 3.0 Spectra 3001-15 active extender cable includes:
- 15 meter USB 3.0 Spectra 3001-15 Active Cable
- Cable Tie
- Quick Start Guide
