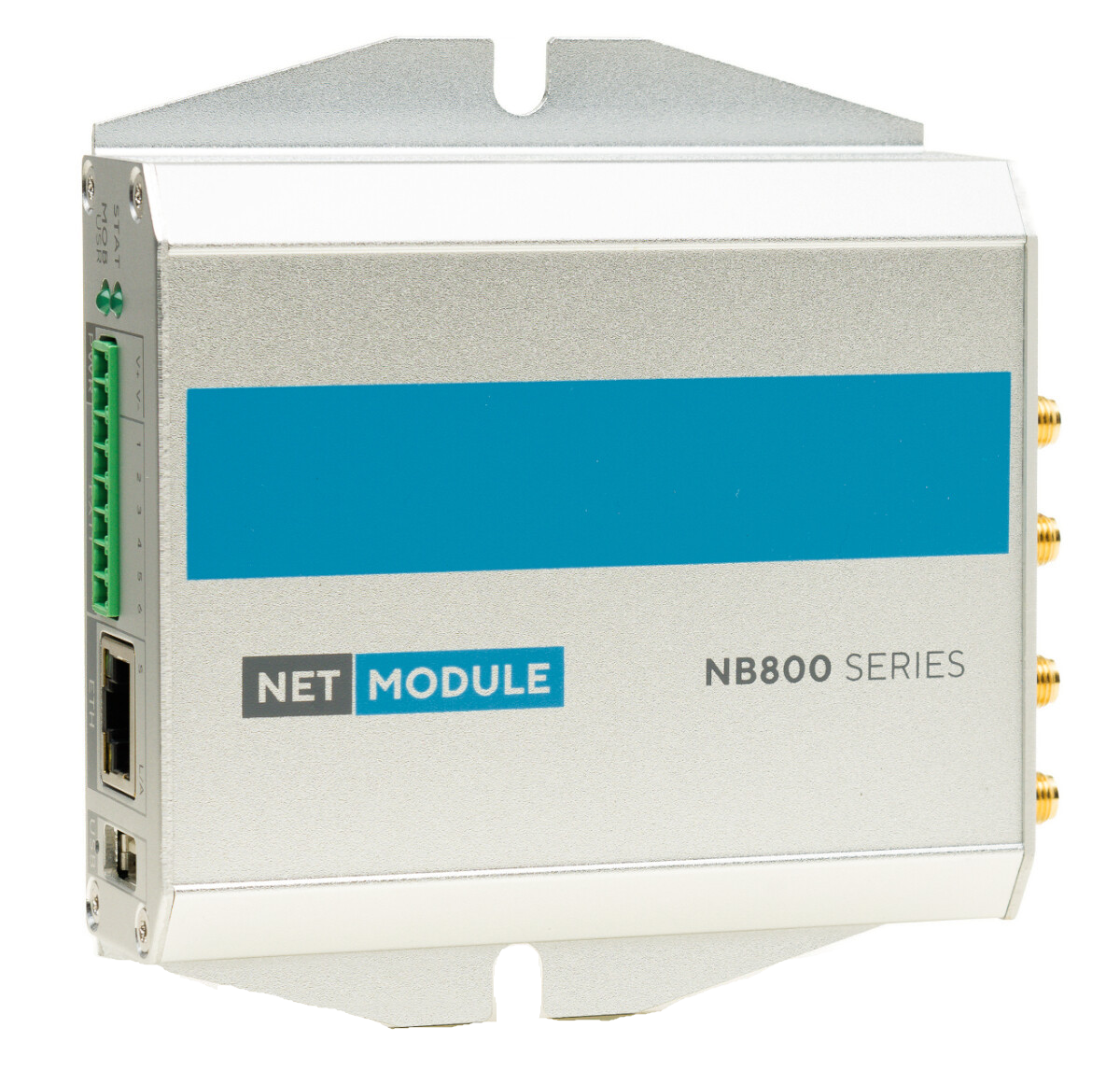

NetModule NB800-LWWtSu2C
IIoT Router with LTE + WLAN + BT/BLE + ETH + USB + 2x CAN
- 1x LTE, UMTS, GSM
- 1x Micro SIM
- 1x Dual-band IEEE 802.11a/b/g/n/ (Wi-Fi 4),1xBluetooth Low Energy
- 1x Fast Ethernet
- 2x CAN active (read and write)
- USB 2.0 Host
- -40° C to +70° C
- Routing, Network Sevices, VPN, Firewall, Link Management, Supervisior, SDK, free updates
- CE(RED)
- Extension on request
The compact NB800 is the cost-effective solution for a robust Internet connection in an industrial environment. The small form factor and reduced features make it ideal for simple connectivity task. Its features include an LTE Module for wireless Internet connection, a small WiFi access point with Bluetooth LE, two CAN interfaces and an Ethernet Port
The high-quality metal housing, which is suitable for DIN rail mounting, in combination with the supported temperature range of -40¡ÆC to +70¡ÆC, offers the ruggedness required for use in industrial environments. The NB800 withstands mechnical and thermal stress. This, and its features, amke the NB800 suitable for applications such Condition Monitoring, Smart Buildings, Environmental Monitoring, Industrial Security and Factory Automation.
The software is based on well proven components including an embedded Linux Operating System and a powerful communication protocol suite as well as VPN technologies as OpenVPN. Customer specific software extensions may be implemented via a sophisticated SDK.
Applications
- Coniditon Monitoring
- Factory Automation
- Remote Management
- Smart Buildings
- Intelligent Lighting Management
- Environmental Monitoring
- Industrial Security
Specifications
Mobile / Cellular | |
---|---|
Standard | 1x MultiMode LTE, UMTS, GSM for EMEA 4G - LTE B1(2100),B2(1900),B3(1800),B4(AWS),B5(850),B7(2600),B8(900),B20(800DD) 3G - DC-HSPA+/UMTS B1(2100),B2(1900),B5(850),B8(900), 2G - GSM/GPRS/EDGE B2(1900),B3(1800),B5(850),B8(900), Category LTE Cat 4 Antenna Ports 2x2 MIMO Datarate down / up (max) 150 Mbps / 50 Mbps Voice GSM |
Region | Europe, Middle East and Africa (EMEA) |

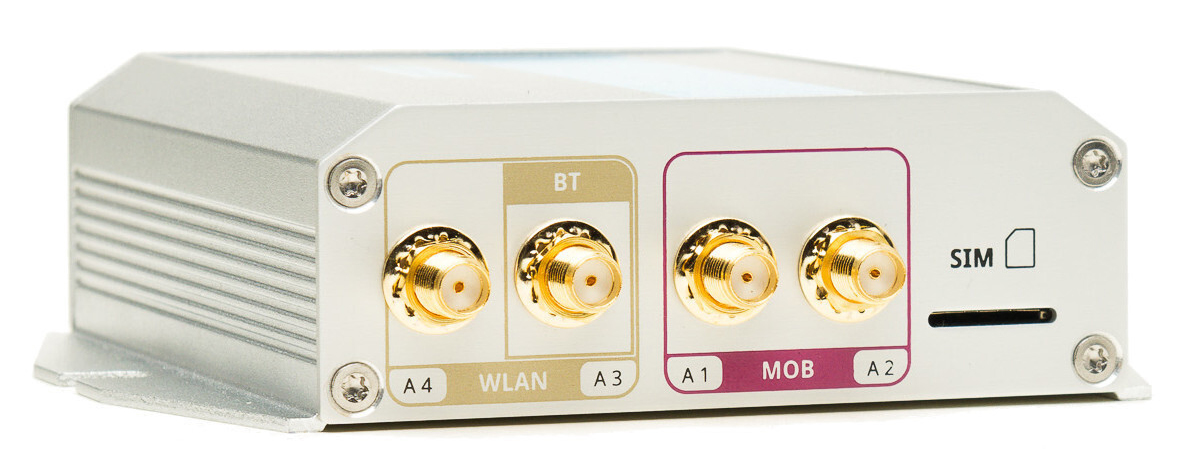

Connectors | 2x SMA female |
SIM | 1x Micro SIM - 3FF |
WiFi / WLAN | |
Standard | 1x Dual-band WLAN 2.4/5 GHz a/bb/gg/n (Wi-Fi 4)+ BT 4.2 Combo Wireless standard IEEE 802.11a/b/g/n (Wi-Fi 4) Bluetooth 4.2, Bluetooth Low Energy Frequency 2.4/5 GHz Antenna Ports 2x2 MIMO Datarate (max) 144 Mbps 2.5 GHz 2x2 MIMO, 150 Mbps 5 GHz SISO Modes Client or Access point (Up to 10 Clients) FCC ID Z64-WL18DBMOD |
Connector | 2x SMA female |
Ethernet | |
Standard | 1x Fast Ethernet Ethernet Standard 100BASE-TX, Auto MDIX Speed 10/100 Mbps |
Connector | 1x RJ45 |
USB | |
Standard | 1x USB 2..0 Host |
Connector | 1x Type A |
Serial, Fieldbus | |
Protocol | 2x CAN Protocol Controller Are Network V2.0B (ISO 11898) Signals CANH,CANL Signal Level High > 2.75V, low <2.0 V Bit rate Up to 1 Mbps Termination 120§Ù configurable by software Bus Access Active - read and wrtie access Module CAN Shield |
Connector | 1x Terminal block header 3.5mm |
System | |
Core | 600 MHz single core, 512 MB RAM, 4GB Flash |
Module Slots | 1x Shield |
Software | |
Features | NetMoudle Router Software Package The standard software package includes an intuitive user interface, covering all modern routing protocols and enables efficient mass deployment General Fail-safe update (FOTA), upgrade via USB, HTTP(S), (S)FTP or TFTP, remote CLI & WebGUI, RADIUS authentication, Simple certificate enrollment Protocol (SCEP), logging Remote Management Manage and monitor devices with SNMP, telnet, SSH, or HTTP/HTTPS Cellular Networking Multi-SIM / soft-SIM support, multi-APN support, signal strength monitoring, dedicated bearers, GSM/CSFB calls Wireless LAN Client or Acces Point Mode, multi client support, multi / hidden SSID, WPA-PSK/WPA2-PSK, WPA-RADIUS, WPA-EAP-TLS, IEEE 802.11w, RADIUS accounting, CAPWAP Link Management Link prioritisation, link aggregation, load balancing, multipath-TCP, IP-Passthrough, link supervision Network Services DHCP Client, DNS Server, email, SMS Service, NTP Client, NTP Server, DynDNS, SSH server, SNMP agent, HTTP/HTTPS/FTP server, voice gateway, SIP call routing, coovachili hotspot Routing Destination, policy, multipath, mobile-IP, OPSF, BGP, TCP_MSS clamping, STP/RSTP, bridging, LLDP, CDP, SONMP, EDP, FDP, IRDP, VRRP, VLAN, PPPoE VPN OpenVPN, IPsec, PPTP, GRE, CSD dial-in Firewall Statefull firewall, connection tracking, NAPT, masquerading, bridge filtering |
Power | |
Input Voltage | 12,24 VDC Nominal Voltages 12,24 VDC Absolute Voltages 12 VDC to 24 VDC (-20%/+20%) |
Connector | 1x Terminal Block header 3.5mm |
Consumption | 5W (average), 10W (max) |
Mounting | |
Bracket | |
Dimensions | |
W x H x D | Width 85/111 mm xheight 32 mm x depth 110 mm |
Weight | |
250 g | |
Environment | |
Operating Temperature | -40¡ÆC to +70¡ÆC |
Ingree Protection Level | IP40 |
MTBF | |
340¢¥000 h according SN29500 at environmental temperature 40¡ÆC | |
Certifications | |
Compliance | CE according to 2014/53/EU (RED), 2011/65/EU (RoHS) |
Domain | Industrial |
Order Code | |
NB800-LWWtSu2C |
