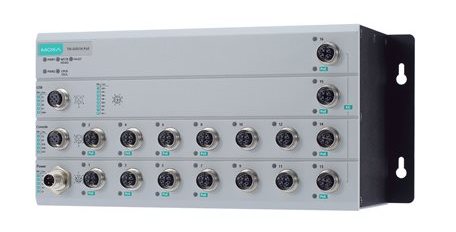

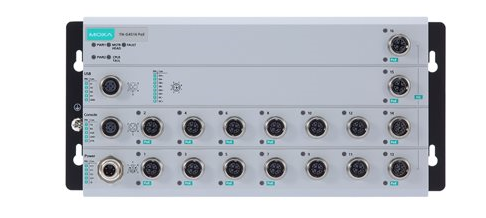

MOXA TN-G4500 Series
EN 50155 layer 2 multi-Gigabit switches
- 4 10G ports and 12 Gigabit ports with push-pull M12 connectors
- Isolated power with 24 to 110 VDC power supply range
- Complies with all EN 50155 mandatory test items
- -40 to 70°C operating temperature range
- Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and RSTP/STP for network redundancy
- 12 IEEE 802.3at/af compliant PoE and Ethernet combo ports
- Provides up to 30 W per PoE port
The ToughNet TN-G4500 Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. These switches are equipped with M12 and similar circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibrations and shock are commonplace. The TN-G4500 Series Ethernet switches provide 4 10G Ethernet M12 ports with PoE functionality, 16 Gigabit Ethernet M12 ports, and 8 ports with PoE functionality. These PoE switches are classified as power source equipment (PSE), capable of providing up to 30 watts of power per port to IEEE 802.3at/af-compliant powered devices (PDs), such as IP cameras and wireless access points. The TN-G4500 Series has M12 connectors that are tailor-made for push-pull cables to facilitate quick installation and allow M12 rotary cables to be utilized. The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 70°C wide operating temperature range allows deployment in harsh environments. The TN-G4500 Series complies with the essential sections of the EN 50155 standard, covering operating temperature, power input voltage, surge, ESD, vibration, power isolation, and features models with conformal coating to ensure suitability for a variety of industrial applications.
Additional Features and Benefits
- Provides up to 30 watts per PoE port with a total power budget of 120 watts per switch
- DHCP Option 82 for IP address assignment with different policies
- IGMP snooping and GMRP for filtering multicast traffic
- Supports the EtherNet/IP and Modbus/TCP industrial Ethernet protocols
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization
- IEEE 802.3ad LACP for optimal bandwidth utilization
- SNMPv1/v2c/v3 for different levels of network management
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- RMON for efficient network monitoring and proactive capability
- Bandwidth management prevents unpredictable network conditions
- Port locking to only allow access to authorized MAC addresses
- Port mirroring for online debugging
- Automatic warning notifications through email and relay output
- Line-swap fast recovery
- LLDP for automatic topology discovery in network management software
- Configurable by web browser, Telnet/serial console, CLI, and Windows utility
- Loop protection to prevent network loops
- Wall mounting installation
Specifications
- Ethernet Interface
- 10GBaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)
TN-G4516 BP models: 2
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)
4
PoE Ports (10GBaseT(X), M12 X-coded 8-pin female connector)
TN-G4516 non-BP models: 4
TN-G4516 BP models: 2
PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)
8
Standards
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3u for 100BaseT(X)
IEEE 802.3bz for 5GBaseT and 2.5GBaseT
IEEE 802.3an for 10GBaseT
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3af/at for PoE/PoE+ output
IEEE 802.3x for flow control
Ethernet Software Features
- Broadcast Forwarding
IP directed broadcast, broadcast forwarding
Configuration Options
Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
Filter
802.1Q, GMRP, GVRP, IGMP v1/v2, Port-based VLAN, Static Multicast
Industrial Protocols
SNMPv1/v2c/v3
Management
Account Management, Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, SNMP Trap
MIB
Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC
Security
TACACS+, Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, Port Lock, RADIUS, Rate Limit, SSH
Time Management
NTP Server/Client, SNTP
Switch Properties
- IGMP Groups
256
Max. No. of VLANs
256
Priority Queues
4
VLAN ID Range
VID 1 to 4094
LED Interface
- LED Indicators
PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE
Serial Interface
- Console Port
RS-232 (M12 B-coded 5-pin female connector)
Power Parameters
- Input Voltage
24/36/48/72/96/110 VDC
No. of Power Inputs
2
Operating Voltage
16.8 to 137.5 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
Total PoE Power Budget
120 W
Input Current
7.5 A @ 24 VDC
Power Connector
M12 K-coded 5-pin male connector
Physical Characteristics
- Housing
Metal
IP Rating
IP40
Dimensions
291.6 x 117.7 x 132.2 mm (11.48 x 4.63 x 5.20 in)
Weight
TN-G4516 without bypass: 2,730g(6.02lb)
TN-G4516 with bypass: 2,740g(6.04lb)
Installation
Wall mounting
Protection
-CT model with PCB conformal coating
Environmental Limits
- Operating Temperature
-40 to 70°C (-40 to 158°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
2000 m
Standards and Certifications
- EMC
EN 55032/24
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 6 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Freefall
IEC 60068-2-31
Radio Frequency
FCC
Railway
EN 50121-4, EN 50155, IEC 60571
Railway Fire Protection
EN 45545-2
Safety
IEC 62368-1, UL 62368-1
Shock
IEC 60068-2-27, IEC 61373, EN 50155
Vibration
IEC 60068-2-64, IEC 61373, EN 50155
Declaration
- Green Product
RoHS, CRoHS, WEEE
MTBF
- Time
TN-G4516 without bypass: 436,136 hrs
TN-G4516 with bypass: 435,764 hrs
Standards
Telcordia SR332
Ordering Information
TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-T | TN-G4516-8GPoE-4XGPoE-WV-T | TN-G4516-8GPoE-4XGPoE-WV-CT-T | TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-CT-T | |
10/100/1000BaseT(X) Ports, M12 X-coded 8-pin Female Connector | 4 | 4 | 4 | 4 |
10G BaseT(X) Ports, M12 X-coded 8-pin Female Connector With Bypass Relay | 2 | - | - | 2 |
100/1000BaseT(X) PoE Ports, M12 X-coded 8-pin Female Connector | 8 | 8 | 8 | 8 |
10G BaseT(X) PoE Ports, M12 X-coded 8-pin Female Connector | 2 | 4 | 4 | 2 |
Conformal Coating | No | No | Yes | Yes |
