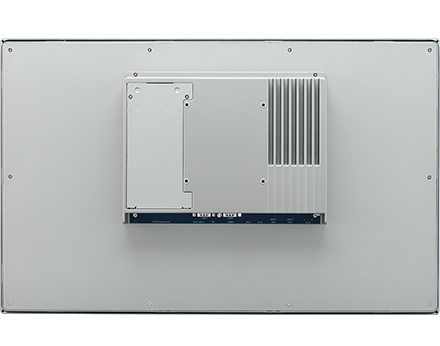

Advantech TPC-324W
23.8" FHD Touch Panel Computer with 8th Gen. Intel® Core™ i3/ i7 Processor, 8G DDR4 RAM
- Industrial-grade 24" FHD TFT LCD with 30K lifetime and LED backlight
- 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i7-8665UE quad-core processor with 8 GB DDR4 SO-DIMM
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with P-CAP multi-touch control and IP66-rated front panel
- Supports expansion via Full-size Mini PCIe and NVMe
- Diverse system I/O and isolated digital I/O via iDoor technology
- Supports fieldbus protocols via iDoor technology
- 5G/GPS/GPRS/Wi-Fi capabilities via iDoor technology
TPC-324W touch panel computer is equipped with 23.8" FHD TFT LED LCD, low-power 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i7-8665UE quad-core processor, and 8 GB DDR4 SO-DIMM delivering high performance yet compact and fanless computing system. To provide enhanced durability and satisfy diverse applications of industrial automation, TPC-324W features IP66-rated front panel protecting against dust and water ingress, and 2 extra expansion M.2 M Key, B Key slots supporting NVMe, SATA or 5G application. With Advantech's iDoor technology integrated via mini PCIe slot for function expansions such as additional I/O ports, isolated digital I/O, fieldbus protocols, GPS/GPRS/Wi-Fi communication and MRAM. The integrated DP and audio ports allow a secondary monitor and speakers to be attached for increased functionality.
Specifications
- General
- BIOS
AMI UEFI
Certification
BSMI, CCC, CE, FCC Class A, CB/UL
Cooling System
Fanless design
Dimensions (W x H x D)
595.9 x 374.1 x 70 mm (23.46 x 14.73 x 2.76 in)
Enclosure
Front bezel: Die cast aluminum alloy
Back housing: Die cast aluminum alloy
Mounting
VESA Mount, Desktop, Wall or Panel Mount
OS Support
Win 10, Android, Linux
Power Consumption
56.31W (Typical)
Power Input
24 VDC ± 20%
Watchdog Timer
15-255 sec (system)
Weight (Net)
9.3kg (20.5lbs)
System Hardware
- CPU
8th Gen. Intel® Core™ i3- 8145UE 2.20 GHz Dual-core/ i7-8665UE 1.70 GHz Quad-core processor
Memory
Dual channel DDR4 SO-DIMM (support up to 32G)
1 x 8G DDR4 SO-DIMM
LAN
2 x 10/100/1000BASE-T
Expansion Slot
1 x Full-size mini PCIe
Storage Slot
1 x M.2 M key 2280 (SATA or NVMe PCIe x4)
1 x M.2 B key 2242 (SATA / PCIe)
1 x 2.5" SSD (SATA)
I/O
2 x RS-232/422/485
1 x USB 2.0
4 x USB 3.1 (Gen.2)
1 x iDoor slot
1 x Displayport (Video output)
1 x Audio line out/ mic in
LCD Display
- Display Type
FHD TFT LED LCD
Display Size
23.8'' (16:9)
Max. Resoltuion
1920 x 1080
Max Colour
16.7M
Luminance cd/m
2350
Viewing Angle (H/V°)
178°/178°
Backlight Life
30,000hrs
Contrast Ratio
1000:1
Touchscreen
- Light Transmission
90% ± 3%
Type
PCAP
Environment
- Humidity
10 ~ 95% RH @ 40°C, non-condensing
Ingress Protection
Front panel: IP66
Operating Temperature
-10~50°C (14~122°F) (w/o air flow)
Storage Temperature
-20~70°C (-4~158°F)
Vibration Protection
With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
ORDERING INFORMATION
Available Modules | |
TPC-324W-P833A | 23.8" FHD Panel PC, Intel® Core™ i3-8145UE 2.20GHz Dual-core Processor, 8G DDR4 RAMƒ |
TPC-324W-P873A | 23.8" FHD Panel PC, Intel® Core™ i7-8665UE 1.70GHz Quad-core Processor, 8G DDR4 RAM |
Optional Accessories | |
96PSA-A120W24T2-3 | 120W 24VDC power supply |
1702002600 | Power cable (US) 1.8 M |
1702002605 | Power cable (EU) 1.8 M |
1702031801 | Power cable (UK) 1.8 M |
Embedded OS | |
Win10 | |
Android | |
Advantech Linux | |
iDoor Modules | |
PCM-24D2R4-BE | Isolated RS-422/485, DB9 x 2, (USB type) |
PCM-24D2R2-BE | Isolated RS-232, DB9 x 2, (USB type) |
PCM-24R1TP-AE | 1-Port Gigabit Ethernet, Intel® 82574L, mPCIe, RJ45 |
PCM-27D24DI-AE | Digital I/O, 16 DI / 8 DO, Isolation, DB37 x 1 |
PCM-24S2WF-BE | 802.11 a/b/g/n/ac 2T2R w/BT4.1, Atheros QCA6174A |
PCM-26D2CA-AE | 2-Port Isolated CANBus mPCIe, CANOpen, DB9 |
PCM-23U1DG-CE | Internal locked USB Slot for USB Dongle, mPCIe |
