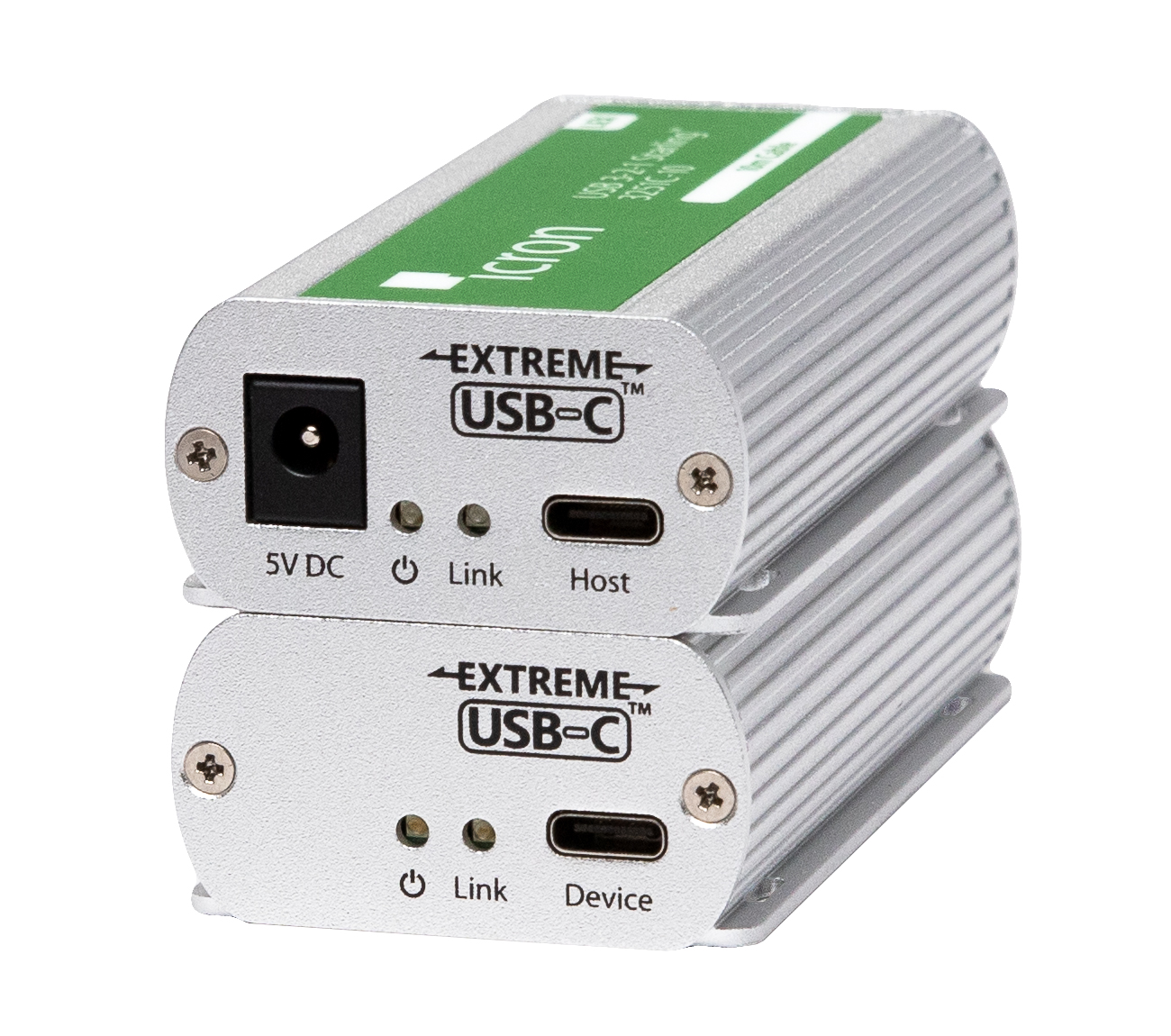

Icron USB 3-2-1 Starling 3251C Series
Port USB 3.2 Gen 1 Type-C 10m Extender System
- USB 3.2 Gen 1 data rate up to 5Gbps
- Supports all USB 3.2, 2.0, 1.1 devices simultaneously at full bandwidth
- USB-C port connectivity
- Bus-powered with optional DC input
- Single 10-meter CM or Plenum rated cable
- FCC and CE (Class A) compliant
- Transparent USB extension supporting USB 3, 2 and 1
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
The Icron USB 3-2-1 Starling 3251C Series provides short-distance extension with all USB 3.2 Gen 1 (5Gbps) device types across a point-to-point connection up to 10 meters and is backwards compatible to USB 2.0 and 1.1 Bus-powered, the 3251C is available with CM or Plenum rated cable.
Applications
Applications
- Remote Storage
- Security and Monitoring
- Conference Rooms
- Test and Measuremen
Icron USB 3-2-1 Starling 3251C Series Specification
PACKAGE CONTENTS
Ordering Information
The Icron USB 3-2-1 Starling 3251C system includes a LEX, REX, USB 3.2 Gen 1 USB-C Cable, 10m Link Cable (CM or Plenum rated depending on model), Cable Pulling Eye, Quick Start Guide and two-year warranty.
- EX (LOCAL EXTENDER) MECHANICAL DATA
- 1x USB 3.2 Type-C Port
- 1x ARJ45 Link Port
- 5V 3A DC Jack (Power supply sold separately)
- 86.0 x 45.0 x 24.0mm (3.4" x 1.8" x 0.9")
- Silver Anodized Aluminum
- 1x USB 3.2 Gen 1 Type-C Receptacle
- 1x ARJ45 Link Port
- 86.0 x 45.0 x 24.0mm (3.4" x 1.8" x 0.9")
- Silver Anodized Aluminum
REX (REMOTE EXTENDER) MECHANICAL DATA
RANGE
- Point-to-Point:
10 meters (32.8 feet)
USB SUPPORT
- USB Speeds:
SuperSpeed 5Gbps, High-Speed, Full-Speed, Low-Speed
USB Bandwidth:
Up to 5Gbps
Device Compatibility:
All Device Types and Classes (Control, Interrupt, Isochronous and Bulk)
Host Compatibility:
OHCI, UHCI, EHCI, xHCI
Available Current at REX:
900mA
Max Number of USB Devices:
30, including hubs
ENVIRONMENTAL
- Temperature:
Operating: 0 OC – 50 OC (32 OF – 122 OF) ,
Storage: -20 OC – 70 OC (-4 OF – 158 OF)
Humidity:
Operating 20-80% ,
Storage 10-90% Relative Humidity Non-Condensing
COMPLIANCE
- EMC
FCC (Class A), CE (Class A)
Environmental
RoHS2/3 (CE
PACKAGE CONTENTS
- LEX (Local Extender)
- REX (Remote Extender)
- 3.2 Gen 1 USB-C Cable (USB Only)
- Link Cable (10m, CM or Plenum Rated)
- Cable Pulling Eye
- Quick Start Guide
Ordering Information
The Icron USB 3-2-1 Starling 3251C system includes a LEX, REX, USB 3.2 Gen 1 USB-C Cable, 10m Link Cable (CM or Plenum rated depending on model), Cable Pulling Eye, Quick Start Guide and two-year warranty.
PART # | NAME | DESCRIPTION |
00-00456 | Icron USB 3-2-1 Starling 3251C-10 | 1-Port USB 3-2-1 Type-C 10m Extender, Icron Silver, CM Cable |
00-00457 | Icron USB 3-2-1 Starling 3251C-10-PL | 1-Port USB 3-2-1 Type-C 10m Extender, Icron Silver, Plenum Cable |
21-00111 | 5V 3A Power Adapter (Level VI) 1.7mm ID | AC Desktop Adapter, 5V 3A, Lvl6, Intnl, 1.7mm (ID) plug, IEC320-C7/C8 2-pin |
21-00115 | NA Ungrounded Power Cord | Cable Power IEC320-C7/C8 1.83m 2-pin NA |
21-00116 | EU Ungrounded Power Cord | Cable Power IEC320-C7/C8 1.83m 2-pin EU |
21-00117 | UK Ungrounded Power Cord | Cable Power IEC320-C7/C8 1.83m 2-pin UK |
21-00155 | Starling Silver USB Mounting Kit | USB Mounting Kit (Starling) SIlver - 4 Brackets |
