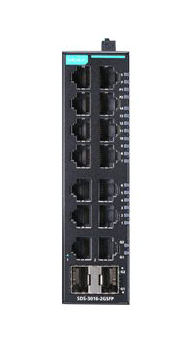

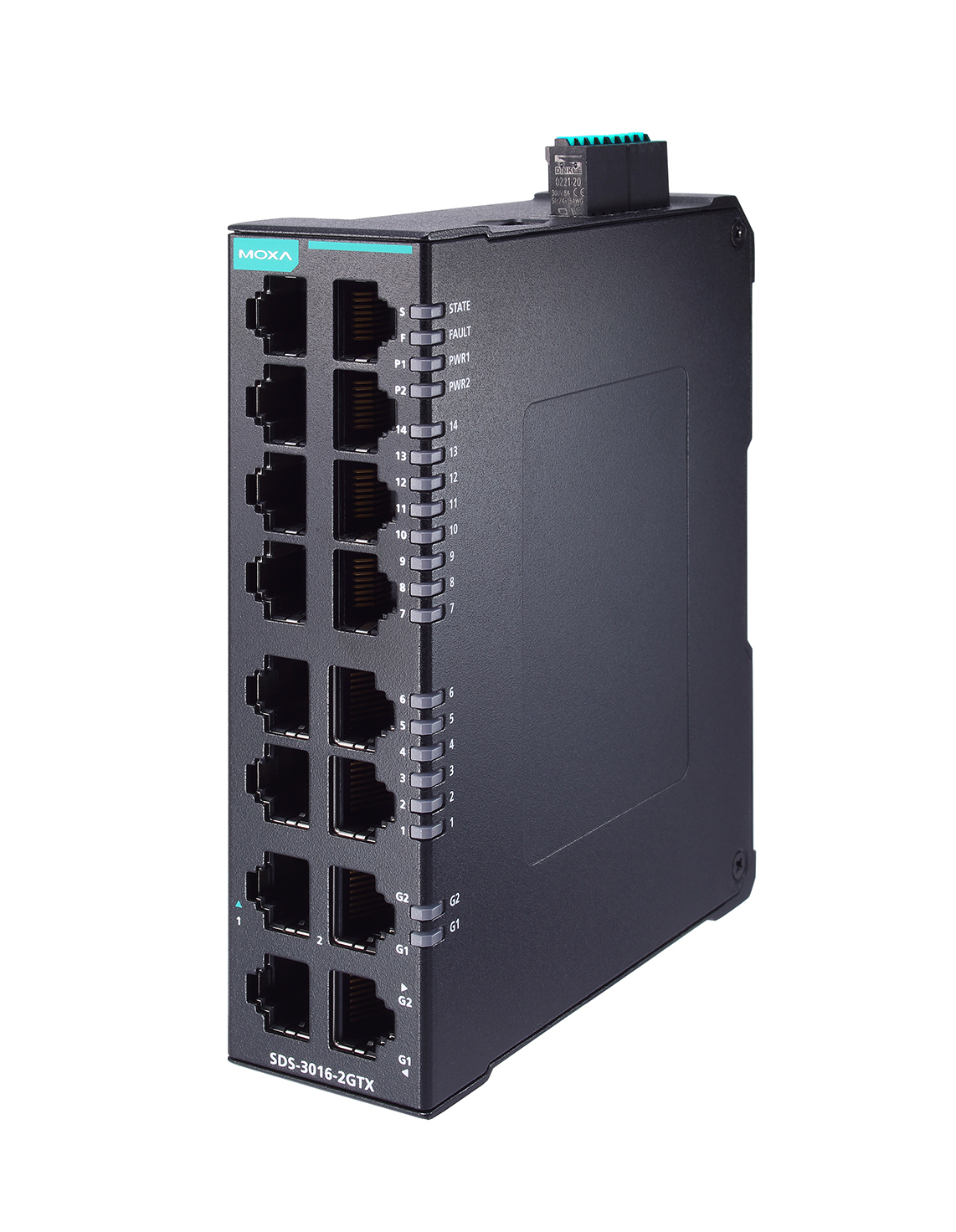

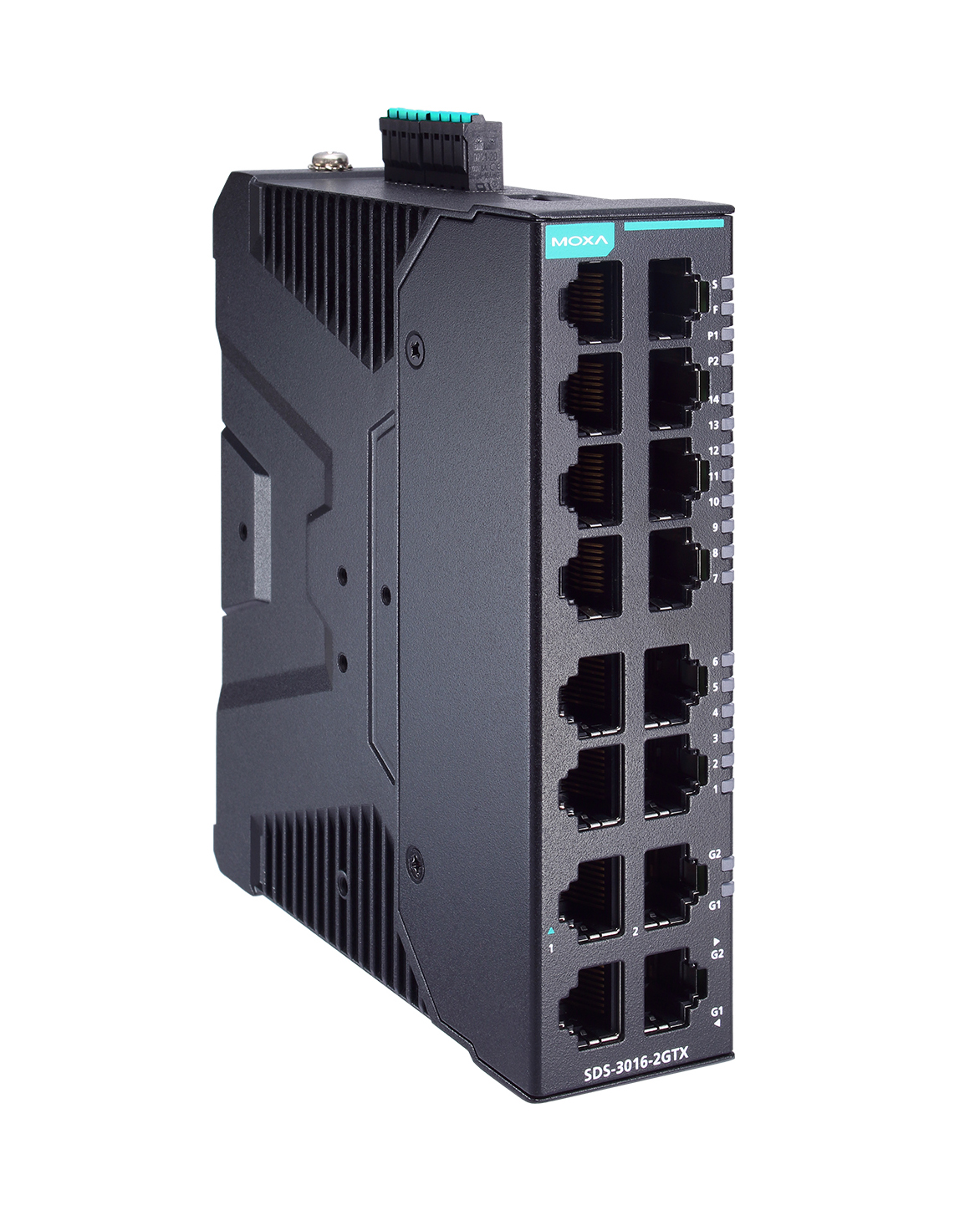

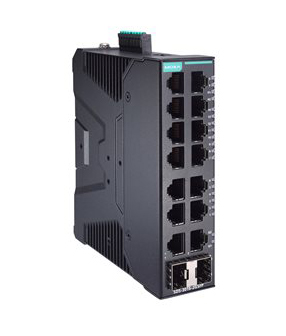

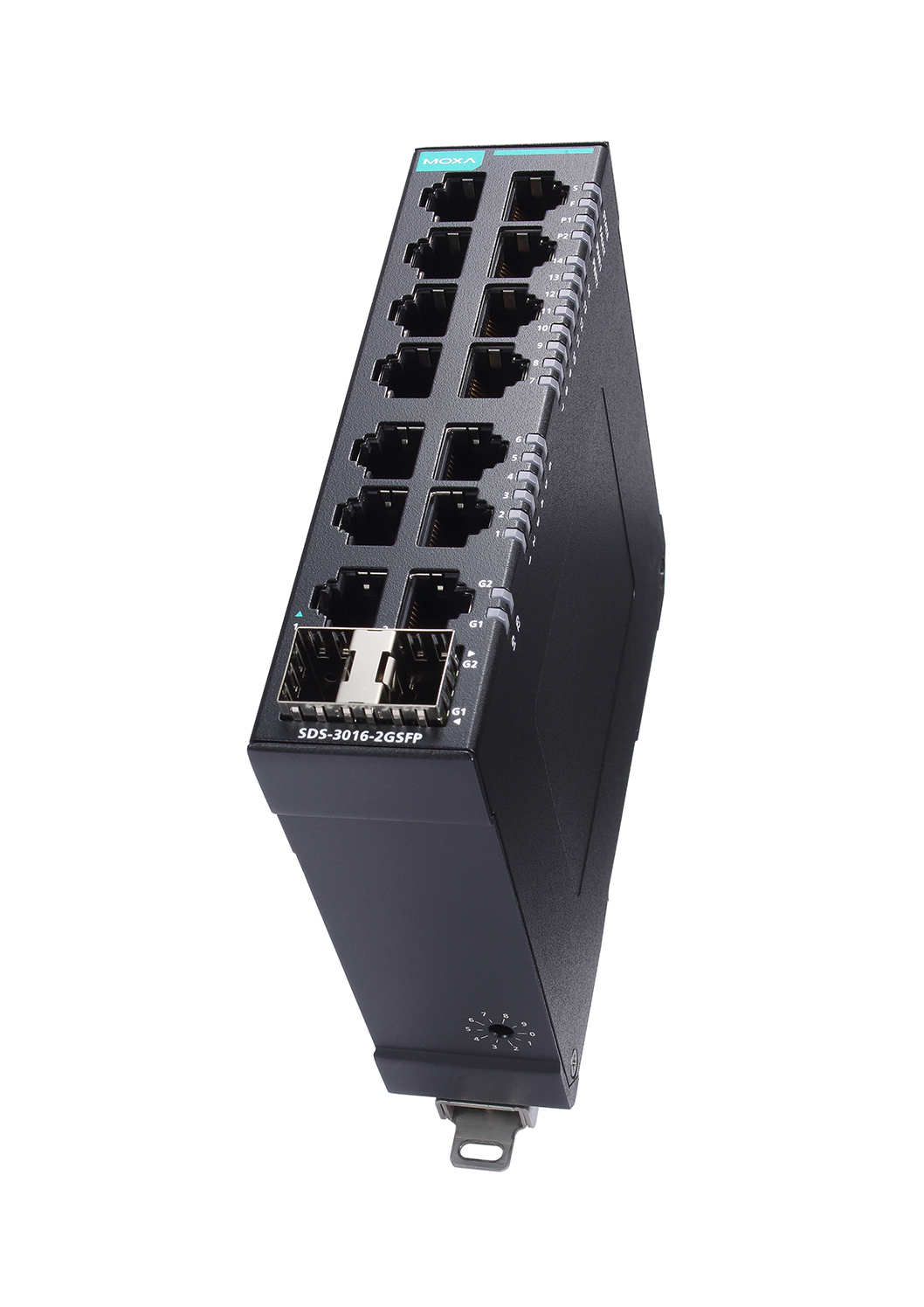

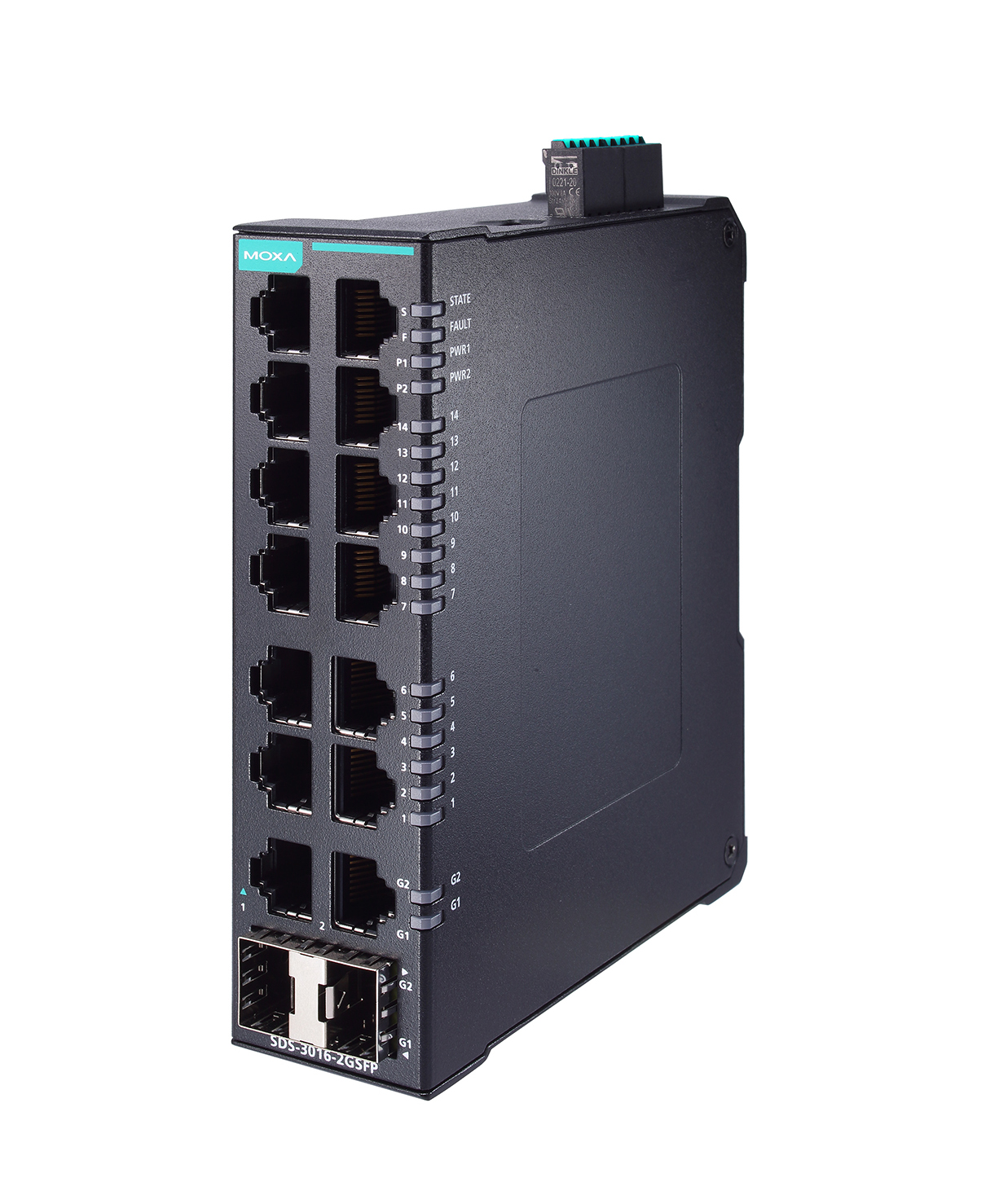

MOXA SDS-3016 Series
Industrial 14+2G-port Gigabit smart Ethernet switches
- Compact and flexible housing design to fit into confined spaces
- Web-based GUI for easy device configuration and management
- Web-based GUI for port diagnostics with statistics to detect and prevent issues
- Multi-language web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German, and French
- Supports RSTP/STP for network redundancy
- Supports MRP client redundancy based on IEC 62439-2 to ensure high network availability
- EtherNet/IP, PROFINET, and Modbus TCP industrial protocols supported for easy integration and monitoring in automation HMI/SCADA systems
- IP port binding to ensure critical devices can be replaced quickly without reassigning the IP Address
- Rotary DIP switch can perform profile-based settings without using a web browser
- Security features based on IEC 62443
The SDS-3016 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.
The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3016 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.
Additional Features and Benefits
The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3016 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.
Additional Features and Benefits
- Supports IEEE 802.1D-2004 and IEEE 802.1w STP/RSTP for rapid network redundancy
- IEEE 802.1Q VLAN to ease network planning
- Supports the ABC-02-USB automatic backup configurator for quick event log and configuration backup. Can also enable quick device switch over and firmware upgrade
- Automatic warning by exception through relay output
- Unused port lock, SNMPv3, and HTTPS to enhance network security
- Role-based account management for self-defined administration and/or user accounts
- Local log and the ability to export inventory files ease inventory management
Specifications
- Input/OutputInterface
- Alarm Contact Channels
1, Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons
Reset button
Digital Input Channels
1
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector)
14
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
10/100/1000BaseT(X) Ports (RJ45 connector)
2 (SDS-3016-2GTX Series)
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100/1000BaseSFP Ports
2 (SDS-3016-2GSFP Series)
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
Ethernet Software Features
- Industrial Protocols
EtherNet/IP, Modbus TCP, PROFINET IO Device
Management
Back Pressure Flow Control, DHCP Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, SNMP Inform, SNMPv1/v2c/v3, Syslog
MIB
RFC1213, Ethernet-like MIB, IF MIB, LLDP MIB, Bridge MIB, Q-BRIDGE MIB
Redundancy Protocols
RSTP, STP, MRP (Client)
Security
Broadcast storm protection, HTTPS/SSL, SNMPv3, Port Lock
Time Management
NTP Server/Client, SNTP
Filter
802.1Q VLAN
RotarySwitchConfiguratio
- Industrial Profile
Indicator | Mode |
0 | ModbusTCP profile(Default) |
1 | PROFINET profile enabled |
2 | PROFINET profile and DHCP client enabled |
3 | EtherNet/IP profile enabled |
4 | EtherNet/IP profile and DHCP client enabled |
Others | Reserved (has the same behavior as Indicator 0) |
SwitchProperties
- MAC Table Size
8 K
Max. No. of VLANs
8
VLAN ID Range
VID 1 to 4094
Packet Buffer Size
3 Mbits
USB Interface
- Storage Port
USB Type A
LED Interface
- LED Indicators
PWR1,PWR2,STATE,FAULT,10/100M,1000M(TP Port)
PowerParameters
- Connection
2 removable 4-contact terminal block(s)
Input Voltage
12/24/48/-48 VDC, Redundant dual inputs
Operating Voltage
9.6 to 60 VDC
Input Current
SDS-3016-2GTX series: 12-48 VDC, 0.858 A (max.)
SDS-3016-2GSFP series: 12-48 VDC, 0.99 A (max.)
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
Physical Characteristics
- Housing
Metal
IP Rating
IP40
Dimensions
36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
Weight
590 g (1.3 lb)
Installation
DIN-rail mounting
Environmental Limits
- Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standardsand Certifications
- EMC
EN 55032/35, EN 61000-6-2/-6-4
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF: 30 A/m
Safety
EN 62368-1, UL 61010-2-201
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
MTBF
- Time
1,109,179 hrs
Standards
Telcordia (Bellcore), GB
Package Contents
- Device
1 x SDS-3016 Series switch
Installation Kit
4 x cap, plastic,for RJ45 port
Documentation
1 x product certificates of quality inspection, Simplified Chinese
1 x product notice, Simplified Chinese
1 x quick installation guide
1 x warranty card
ORDERING INFORMATION
Model Name | 10/100/1000BaseT(X)Ports, RJ45 Connector | 100/1000Base SFP Ports | OperatingTemp. |
SDS-3016-2GTX | 2 | - | -10 to 60°C |
SDS-3016-2GTX-T | 2 | - | -40 to 75°C |
SDS-3016-2GSFP | - | 2 | -10 to 60°C |
SDS-3016-2GSFP-T | - | 2 | -40 to 75°C |
Accessories (sold separately) | |
SFP Modules | |
SFP-1FEMLC-T | SFP module with 1 100Base multi-mode,LC connectorfor 2/4 km transmission, -40 to 85°C operating temperature |
SFP-1FELLC-T | SFP module with 1 100Base single-modewith LC connectorfor 80 km transmission, -40 to 85° Coperating temperature |
SFP-1FESLC-T | SFP module with 1 100Base single-modewith LC connectorfor 40 km transmission, -40 to 85°C operating temperature |
SFP-1G10ALC | WDM-type (BiDi) SFP module with 1 1000Base SFP port with LC connectorfor 10 km transmission; TX1310 nm, RX 1550 nm, 0 to 60°C operating temperature |
SFP-1G10ALC-T | WDM-type (BiDi) SFP module with 1 1000Base SF Pport with LC connectorfor 10 km transmission; TX1310 nm, RX 1550 nm, -40 to 85°C operating temperature |
SFP-1G10BLC | WDM-type (BiDi) SFP module with 1 1000Base SFP port with LC connector for 10 km transmission; TX1550 nm, RX 1310 nm, 0 to 60°C operating temperature |
SFP-1G10BLC-T | WDM-type (BiDi) SFP module with 1 1000Base SFP port with LC connectorfor 10 km transmission;TX1550 nm, RX 1310 nm, -40 to 85°C operating temperature |
SFP-1G20ALC | WDM-type (BiDi) SFP module with 1 1000Base SFP port with LC connectorfor 20 km transmission;TX1310 nm, RX 1550 nm, 0 to 60°C operating temperature |
SFP-1G20ALC-T | WDM-type (BiDi) SFP module with 1 1000Base SFP port with LC connectorfor 20 km transmission;TX1310 nm, RX 1550 nm, -40 to 85°C operating temperature |
SFP-1G20BLC | WDM-type (BiDi) SFP module with 1 1000Base SFP port with LC connectorfor 20 km transmission;TX1550 nm, RX 1310 nm, 0 to 60°C operating temperature |
SFP-1G20BLC-T | WDM-type (BiDi) SFP module with 1 1000BaseSFPport with LC connectorfor 20 km transmission; TX1550 nm, RX 1310 nm, -40 to 85°C operating temperature |
SFP-1G40ALC | WDM-type (BiDi) SFP module with 1 1000BaseSFPport with LC connectorfor 40 km transmission; TX1310 nm, RX 1550 nm, 0 to 60°C operating temperature |
SFP-1G40ALC-T | WDM-type (BiDi) SFP module with 1 1000BaseSFPport with LC connectorfor 40 km transmission; TX1310 nm, RX 1550 nm, -40 to 85°C operating temperature |
SFP-1G40BLC | WDM-type (BiDi) SFP module with 1 1000BaseSFPport with LC connectorfor 40 km transmission; TX1550 nm, RX 1310 nm, 0 to 60°C operating temperature |
SFP-1G40BLC-T | WDM-type (BiDi) SFP module with 1 1000BaseSFPport with LC connectorfor 40 km transmission; TX1550 nm, RX 1310 nm, -40 to 85°C operating temperature |
SFP-1GEZXLC | SFP module with 1 1000BaseEZX port with LC connectorfor 110 km transmission,0 to 60°C operating temperature |
SFP-1GEZXLC-120 | SFP module with 1 1000BaseEZX port with LC connectorfor 120 km transmission,0 to 60°C operating temperature |
SFP-1GLHLC | SFP module with 1 1000BaseLH port with LC connectorfor 30 km transmission,0 to 60°C operating temperature |
SFP-1GLHLC-T | SFP module with 1 1000BaseLH port with LC connectorfor 30 km transmission,-40 to 85°C operating temperature |
SFP-1GLHXLC | SFP module with 1 1000BaseLHX port with LC connectorfor 40 km transmission,0 to 60°C operating temperature |
SFP-1GLHXLC-T | SFP module with 1 1000BaseLHX port with LC connectorfor 40 km transmission,-40 to 85°Coperating temperature |
SFP-1GLSXLC | SFP module with 1 1000BaseLSX port with LC connectorfor 1km/2kmtransmission,0 to 60°Coperating temperature |
SFP-1GLSXLC-T | SFP module with 1 1000BaseLSX port with LC connectorfor 1km/2kmtransmission,-40 to 85°Coperating temperature |
SFP-1GLXLC | SFP module with 1 1000BaseLX port with LC connectorfor 10 km transmission,0 to 60°C operating temperature |
SFP-1GLXLC-T | SFP module with 1 1000BaseLX port with LC connectorfor 10 km transmission,-40 to 85°C operating temperature |
SFP-1GSXLC | SFP module with 1 1000BaseSX port with LC connectorfor 300m/550mtransmission,0 to 60°Coperating temperature |
SFP-1GSXLC-T | SFP module with 1 1000BaseSX port with LC connectorfor 300m/550mtransmission,-40 to 85°Coperating temperature |
SFP-1GZXLC | SFP module with 1 1000BaseZX port with LC connectorfor 80 km transmission,0 to 60°C operating temperature |
SFP-1GZXLC-T | SFP module with 1 1000BaseZX port with LC connectorfor 80 km transmission,-40 to 85°C operating temperature |
SFP-1GTXRJ45-T | SFP module with 1 1000BaseT port with RJ45 connectorfor 100 m transmission,-40 to 75°C operating temperature |
Storage Kits | |
ABC-02-USB | Configuration backup and restoration tool, firmware upgrade,and log file storage tool for managed Ethernet switches and routers, 0 to 60°C operating temperature |
ABC-02-USB-T | Configuration backup and restoration tool, firmware upgrade,and log file storage tool for managed Ethernet switches and routers, -40 to 75°C operating temperature |
Power Supplies | |
DR-120-24 | 120W/2.5A DIN-rail 24 VDC power supply with universal 88 to 132 VAC or 176 to 264 VAC input by switch,or 248 to 370 VDC input, -10 to 60°C operating temperature |
DR-4524 | 45W/2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC or 120 to 370 VDC input, -10 to 50°C operating temperature |
DR-75-24 | 75W/3.2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC or 120 to 370 VDC input, -10 to 60°C operating temperature |
MDR-40-24 | DIN-rail 24 VDC power supply with 40W/1.7A,85 to 264 VAC, or 120 to 370 VDC input, -20 to 70°C operating temperature |
MDR-60-24 | DIN-rail 24 VDC power supply with 60W/2.5A,85 to 264 VAC, or 120 to 370 VDC input, -20 to 70°Coperating temperature |
Rack-Mounting Kits | |
RK-4U | 19-inch rack-mounting kit |
