Advantech IMC-480 Series
10/100Mbps PoE Media Converter
- Supports one fixed optical connector with single-mode, multi-mode, or SFP, and two RJ-45 ports
- One RJ-45 port serves as PoE-PSE
- Supports internal AC power
- IEEE802.3at/af compliant (IMC-490) or IEEE802.3af compliant (IMC-480)
- Supports jumbo frame functionality (up to 10240 bytes)
- Supports configurable PoE reset on fiber Loss of Signal (LOS)
- Support Link Fault Pass Through (LFPT)
IMC-480 and 490 are the perfect solutions for network applications that require Power-over-Ethernet (PoE) for locations inside buildings where PoE is required to power an Ethernet device. The IMC-480 and 490 series offer three ports: one fiber uplink for the network connection, one PoE/PSE copper port that provides Power-over-Ethernet, and one copper port to connect a non-PoE unit to the same fiber uplink.
As a fiber media converter, it provides both power (up to 15.4W with IMC-480 and 25.5W with IMC-490) and data to a single remote device over standard CAT5, eliminating the need for additional power to the end device at the remote site. Additionally, the IMC-480/490 media converters come with an internal AC power supply and support jumbo frames up to 10240 bytes. The IMC-480/490 series features Link Fault Pass Through (LFPT) with a DIP switch that has a diagnostic feature which can be enabled or disabled to assist the end user in troubleshooting a failed segment.
Specifications
Technical | |
IEEE 802.3, 802.3u (IMC-480 series) | |
IEEE 802.3, 802.3u, 802.3ab (IMC-490 series) | |
IEEE 802.3af Power over Ethernet 15.4W (IMC-480 series) | |
IEEE 802.3at/af Power over Ethernet 25.5W (IMC-490 series) | |
Plug-and-Play operation | |
Supports diagnostic LEDs | |
Supports AutoCross MDI/MDIX, LinkLoss and FiberAlert | |
Supports Auto Negotiation | |
Supports jumbo frame up to 10240 bytes | |
One PoE-PSE for RJ-45 | |
Power Input | |
100-240 VAC, 50/60Hz, 0.5A to 0.2A | |
Environment | |
Operating Temperature | 0 to +50 °C (+32 to +122 °F) |
Storage Temperature | -40 to +85 °C (-40 to +185 °F) |
Operating Humidity | 5 ~ 95% (non-condensing) |
0 ~ 10,000 ft. altitude | |
Mechanical | |

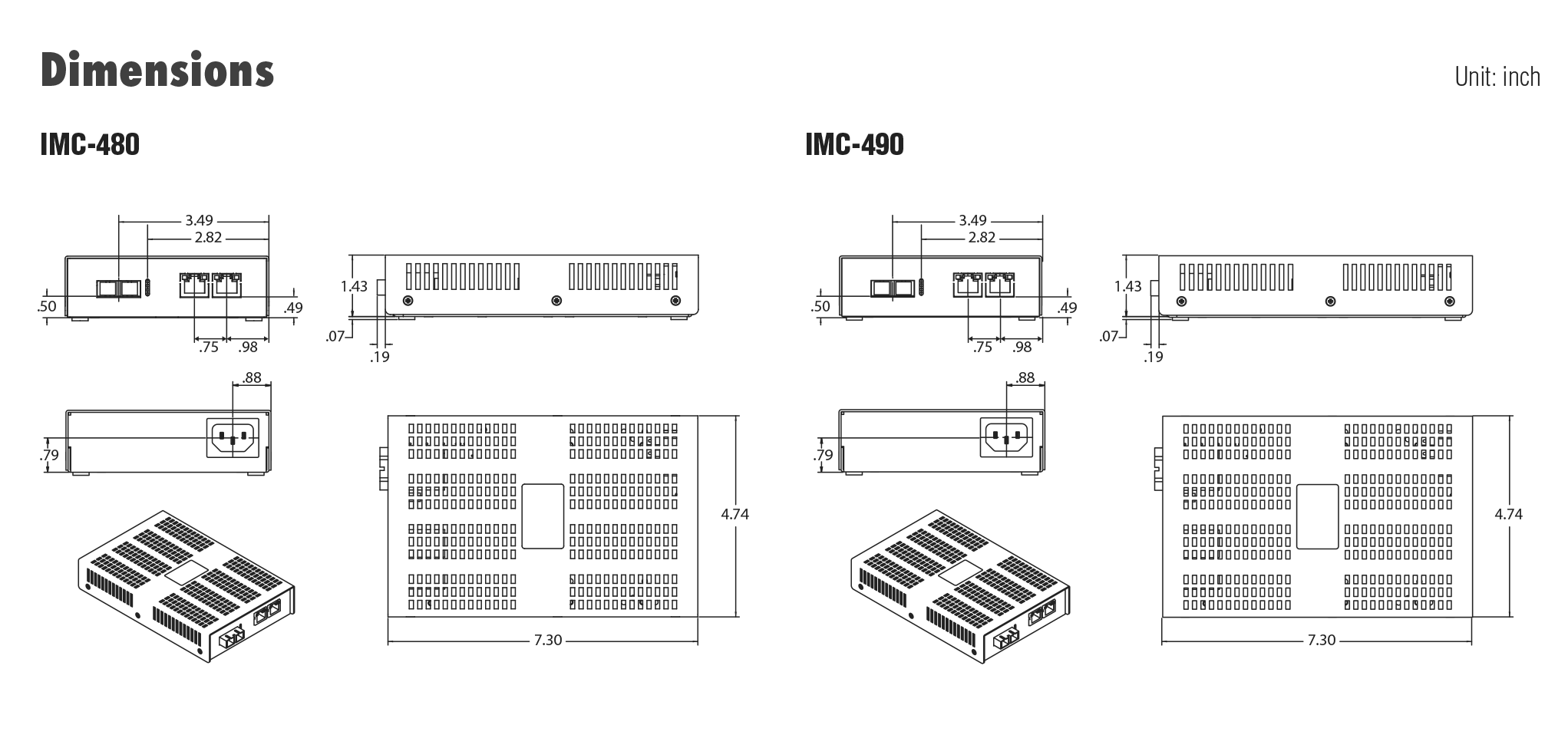

Dimensions (H x W x D) | 3.71 x 12.09 x 18.59 cm (1.46 x 4.76 x 7.32 in) |
Weight | 0.58 kg (1.3 lb) |
Certifications | |
CE, FCC Class A, UL/cUL, CSA |
Ordering Information
Media Converter w/ US power cord
Part Number | Also Known As | Ethernet Speed | PoE PSE | Optical Mode | Wavelength | Distance | Optical Connector | Ethernet Connector |
---|---|---|---|---|---|---|---|---|
IMC-480-M8-US | 852-11713 | 10/100 Mbps | PoE | Multi-Mode | 850 nm | 2 km | SC | 2 x RJ45 |
IMC-480-M8ST-US | 852-11712 | 10/100 Mbps | PoE | Multi-Mode | 850 nm | 2 km | ST | 2 x RJ45 |
IMC-480-MM-US | 852-11715 | 10/100 Mbps | PoE | Multi-Mode | 1300 nm | 5 km | SC | 2 x RJ45 |
IMC-480-MMST-US | 852-11714 | 10/100 Mbps | PoE | Multi-Mode | 1300 nm | 5 km | ST | 2 x RJ45 |
IMC-480-SE-US | 852-11717 | 10/100 Mbps | PoE | Single-Mode | 1300 nm | 40 km | SC | 2 x RJ45 |
IMC-480-SEST-US | 852-11716 | 10/100 Mbps | PoE | Single-Mode | 1300 nm | 40 km | ST | 2 x RJ45 |
IMC-490-M1-US | 852-11913 | 10/100/1000 Mbps | PoE+ | Multi-Mode | 1300 nm | 2 km | SC | 2 x RJ45 |
IMC-490-MM-US | 852-11912 | 10/100/1000 Mbps | PoE+ | Multi-Mode | 850 nm | 550 m | SC | 2 x RJ45 |
IMC-490-SM-US | 852-11914 | 10/100/1000 Mbps | PoE+ | Single-Mode | 1310 nm | 10 km | SC | 2 x RJ45 |
IMC-490-SFP-US | 852-11911 | 10/100/1000 Mbps | PoE+ | Various | Various | Various | SFP | 2 x RJ45 |
Media Converter w/o power cord
Part Number | Ethernet Speed | PoE PSE | Optical Mode | Wavelength | Distance | Optical Connector | Ethernet Connector |
---|---|---|---|---|---|---|---|
IMC-480-M8 | 10/100 Mbps | PoE | Multi-Mode | 850 nm | 2 km | SC | 2 x RJ45 |
IMC-480-M8ST | 10/100 Mbps | PoE | Multi-Mode | 850 nm | 2 km | ST | 2 x RJ45 |
IMC-480-MM | 10/100 Mbps | PoE | Multi-Mode | 1300 nm | 5 km | SC | 2 x RJ45 |
IMC-480-MMST | 10/100 Mbps | PoE | Multi-Mode | 1300 nm | 5 km | ST | 2 x RJ45 |
IMC-480-SE | 10/100 Mbps | PoE | Single-Mode | 1310 nm | 40 km | SC | 2 x RJ45 |
IMC-480-SEST | 10/100 Mbps | PoE | Single-Mode | 1310 nm | 40 km | ST | 2 x RJ45 |
IMC-490-M1 | 10/100/1000 Mbps | PoE+ | Multi-Mode | 1300 nm | 2 km | SC | 2 x RJ45 |
IMC-490-MM | 10/100/1000 Mbps | PoE+ | Multi-Mode | 850 nm | 550 m | SC | 2 x RJ45 |
IMC-490-SM | 10/100/1000 Mbps | PoE+ | Single-Mode | 1310 nm | 10 km | SC | 2 x RJ45 |
IMC-490-SFP | 10/100/1000 Mbps | PoE+ | Various | Various | Various | SFP | 2 x RJ45 |
Accessories
Part Number | Description |
---|---|
895-39226 | Rackmount Bracket |
895-39227 | Wallmount Bracket |
* SFP fibers sold separately - available at www.advantech.com
