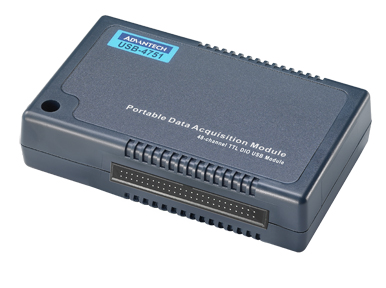

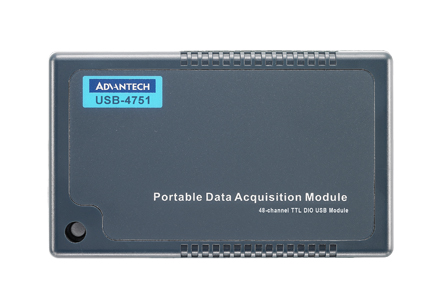

Advantech USB-4751
48-ch Digital I/O USB Module
- Compatible with USB 1.1/2.0
- Portable
- Bus-powered
- Emulates mode 0 of 8255 PPI
- 48 TTL digital I/O lines
- Buffered circuits for higher driving capacity than 8255
- Interrupt handling capability
- Timer/Counter interrupt capability
- Supports both dry and wet contact
- 50-pin Opto-22 compatible box header
- Suitable for DIN-rail mounting
- One lockable USB cable for secure connection included
The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It’s easy and efficient. USB-4751/4751L is a 48/24-bit digital I/O module for the USB bus. Its 48/24 bits are divided into six/three 8-bit I/O ports and users can configure each port as input or output via software. USB-4751/USB-4751L also provides one event counter and three 16-bit timers, which can be cascaded to become a 32-bit timer.
Digital Input
Channels
USB-4751: 48 (shared with output)
USB-4751L: 24 (shared with output)
Compatibility
5 V/TTL
Input Voltage
Logic 0: 0.8 V max.
Logic 1: 2 V min.
Digital Output
Channels
USB-4751: 48 (shared with input)
USB-4751L: 24 (shared with input)
Compatibility
5 V/TTL
Output Voltage
Logic 0: 0.5 V max.
Logic 1: 3.8 V min.
Output Capability
Sink: 12 mA @ 0.5 V
Source: 12 mA @ 3.8 V for single channels
5 mA @ 3.8 V for all channels in high status
Counter/Timer
Channels
2
Resolution
32-bit
Max. Input Frequency
8 MHz
General
Bus Type
USB 1.1/2.0
I/O Connector
50-pin box headers, pin assignments are fully compatible with Opto-22 I/O module racks
Dimensions (L x W x H)
132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Power Consumption
Typical: 5 V @ 200 mA
Max.: 5 V @ 500 mA
Operating Temperature
0 ~ 60°C (32 ~ 140°F)
Storage Temperature
-20 ~ 70°C (-4 ~ 158°F)
Storage Humidity
5 ~ 95% RH, non-condensing
Ordering Information
USB-4751-AE
USB-4751L-AE
Accessories
Channels
USB-4751: 48 (shared with output)
USB-4751L: 24 (shared with output)
Compatibility
5 V/TTL
Input Voltage
Logic 0: 0.8 V max.
Logic 1: 2 V min.
Digital Output
Channels
USB-4751: 48 (shared with input)
USB-4751L: 24 (shared with input)
Compatibility
5 V/TTL
Output Voltage
Logic 0: 0.5 V max.
Logic 1: 3.8 V min.
Output Capability
Sink: 12 mA @ 0.5 V
Source: 12 mA @ 3.8 V for single channels
5 mA @ 3.8 V for all channels in high status
Counter/Timer
Channels
2
Resolution
32-bit
Max. Input Frequency
8 MHz
General
Bus Type
USB 1.1/2.0
I/O Connector
50-pin box headers, pin assignments are fully compatible with Opto-22 I/O module racks
Dimensions (L x W x H)
132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Power Consumption
Typical: 5 V @ 200 mA
Max.: 5 V @ 500 mA
Operating Temperature
0 ~ 60°C (32 ~ 140°F)
Storage Temperature
-20 ~ 70°C (-4 ~ 158°F)
Storage Humidity
5 ~ 95% RH, non-condensing
Ordering Information
USB-4751-AE
- 48-ch Digital I/O USB Module
USB-4751L-AE
- 24-ch Digital I/O USB Module
Accessories
1960004544 | Wallmount Bracket |
1960005788 | VESA Mount Bracket |

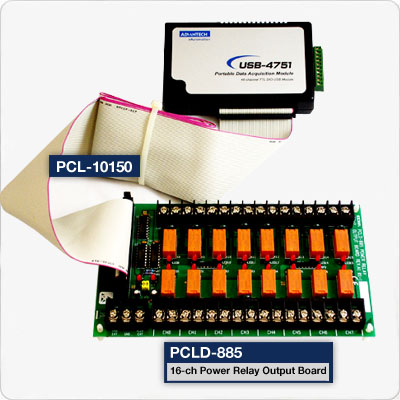

PCL-10150-1.2E | 50-pin Flat Cable, 1.2 m |

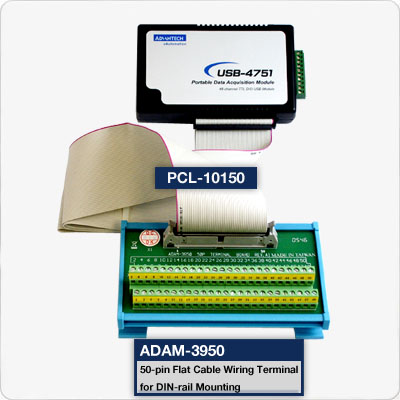

ADAM-3950-AE | 50-pin DIN-rail Flat Cable Wiring Board |
PCLD-782B-AE | 24-ch IDI Board w/ 20-pin & 50-pin Flat Cables |
PCLD-785B-AE | 24-ch Relay Board w/ 20- pin & 50-pin Flat Cables |
