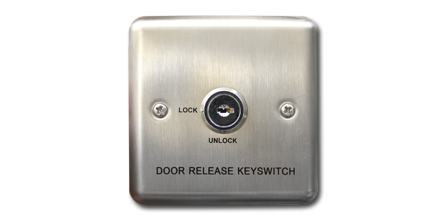

AKCP External Lock Override
This switch is mandatory for all Doors that are controlled by a AKCP Door Control Unit
Properties
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- Suitable for all AKCP Door Locks
- Finished in Stainless Steel
- Signal Enabled
- Weatherproof
- Tamperproof
This External Lock Override switch is mandatory for all Doors that are controlled by a AKCP Door Control Unit.
The override switch is waterproof, easy to install, tamper-proof and integrates seamlessly with the AKCess Pro Server application.
The override switch is waterproof, easy to install, tamper-proof and integrates seamlessly with the AKCess Pro Server application.
Specifications
- Size (mm) : 86L x 86W x 20H
- Standard Materials : Stainless Steel Panel and Key
- Output Contact : NC / COM
- Voltage : 12 / 24 V DC+10%
- Case / Key Type: Weatherproof, Non-Duplicate Keys
- Current Rating : 3 A @ 36 V DC Max
- Operating Temperature : 10 to +55°C (14-131F)
- Suitable Humidity : 0~90% (non-condensing)
- Weight : 0.18 kg
- Tamper Protection : Yes
