Product groups > Embedded PC > Advantech ARK-2121L

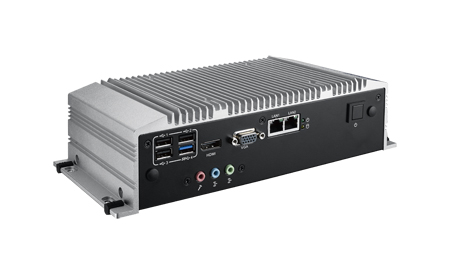

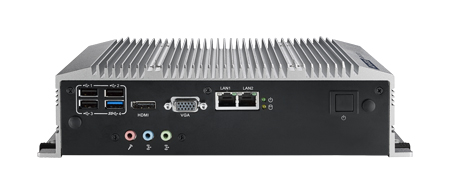

Advantech ARK-2121L

IntelŽ CeleronŽ Quad Core J1900 SoC with Multiple I/Os Fanless Box PC

Advantech ARK-2121L
  • PropertiesProperties
  • DescriptionDescription
  • Further InformationFurther Information
  • PDFPDF
  • IntelŽ CeleronŽ J1900 Quad Core 2.0 GHz SoC with Turbo boost support
  • VGA and HDMI dual independent display
  • 9 ~ 36 VDC wide range power input
  • 20 ~ 70° C extend temperature operating
  • Mini PCIe expansion with SIM holder for communication module
  • mSATA and 1 x 2.5" SATA storage device
  • Advantech iDoor module compatible
  • Advantech EMIO miniPCIe module compatible with all-in-one ordering
IntelŽ CeleronŽ Quad Core J1900 SoC with Multiple I/Os Fanless Box PC
ProdGrafik
Part Number           ARK-2121L-U0A1E


Processor

CPU
Intel Celeron Processor J1900 Quad Core

Core Number
4

Frequency
2.0 GHz, turbo boost up to 2.42 GHz

L2 Cache
2 MB

BIOS
AMI EFI


Memory

Technology
DDR3L 1333 MHz

Max. Capacity
8 GB

Socket
1 x 204-pin SO-DIMM


Graphics

Chipset
Intel Celeron J1900 SoC integrated, 7th Gen. Intel Graphic core

Graphic Engine
DirectX 11.1, OCL 1.2, OGL 3.2; Encode: H.264, MPEG2/4, VC1, WMV9; Decode: H.264, MPEG2

VGA
Up to 2048 x 1152 @ 60Hz

HDMI
HDMI 1.4a for HD video playback, 1080P at 60Hz

Display port
Up to 2048 x 1152 at 60Hz(by projuct only)

Dual Display
Yes, VGA + HDMI


Ethernet

LAN1
10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

LAN2
10/100/1000 Mbps Intel I210 GbE, support Wake on LAN


Audio

Interface
Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in

I/O Interface

Serial Port
2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control

USB Interface
1 x USB 3.0, 3 x USB 2.0


Other
Watchdog Timer
255 levels timer interval, setup by software


Expansion

Mini PCIe
1 x full size Mini PCIe with SIM holder

iDoor Module
Yes


Storage

HDD
Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)

SSD
1 x full size mSATA socket, with USB signal co-lay


Software Support

Microsoft Windows
WES8, Windows 8, WES7, Windows 7

Linux
Support by project


Power

Power Type
ATX

Input Voltage
9 ~ 36 VDC

Power Adaptor
AC to DC, DC19 V/3.42 A, 65 W (Optional)

Consumption
Typical 7.3 W, Max. 13.3 W


Mechanical

Construction
Aluminum housing

Mounting
Din-Rail mounting, Desk/wall-mounting, VESA mounting

Dimensions
264.5 x 69.2 x 133.0 mm (10.41" x 2.72" x 5.24")

Weight
2.3 kg (5.07 lb)


Environment

Operating Temperature
With extended temperature peripherals: -20 ~ 70° C (-4 ~ 158° F) with 0.7m/s air flow;With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow

Storage Temperature
-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity
95% @ 40° C (non-condensing)

Vibration during Operation
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock During Operation
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

EMC
CE/FCC Class A, CCC, BSMI

Safety Certifications
UL, CCC, BSMI
