MOXA TN-5518A Series

prodgraf

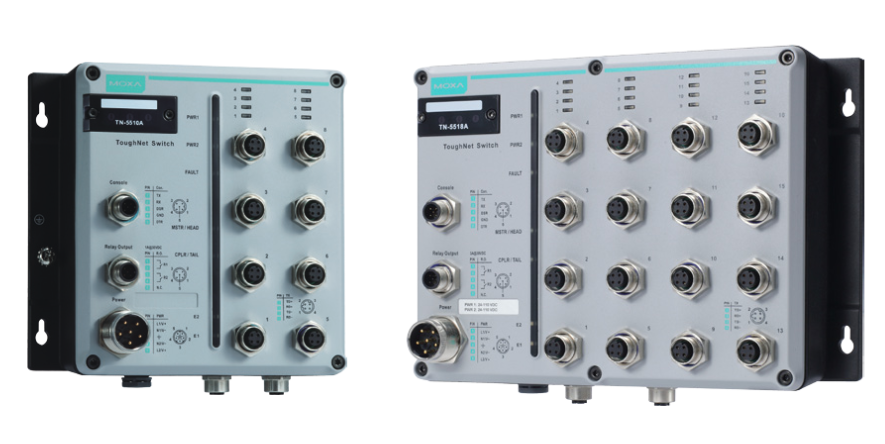

EN 50155 16+2G-port managed Ethernet switches



Properties


Description

The TN series switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5500A series Ethernet switches provide 8 or 16 Fast Ethernet M12 ports with or without 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports. The PoE switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones. In addition, the 24 to 110 VDC wide power input range and isolated power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. In addition, the -40 to 75°C operating temperature and IP54-rated waterproof enclosure allow deployment in harsh environments. Moreover, the TN-5500A series is compliant with the essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD and vibration, making the switches suitable for a variety of industrial applications.





ProdGrafik

Further Information


Technology

Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP

Protocols
IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, SNMP Inform, LLDP, IEEE 1588 PTP v2, IPv6, NTP Server/Client, EtherNet/IP, Modbus/TCP

MIB
MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control
IEEE802.3x flow control, back pressure flow control


Switch Properties

Priority Queues
4

Max. Number of Available VLANs
64

VLAN ID Range
VID 1 to 4094

IGMP Groups
256


Interface Fast Ethernet
Front cabling, M12 D-coded 4-pin female connector, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection

Gigabit Ethernet
Down cabling, M12 X-coded 8-pin female connector, 10/100/1000BaseT(X) auto negotiation speed, F/H duplex mode, auto MDI/MDI-X connection, with or without bypass relay function

Console Port
M12 A-coding 5-pin male connector

System LED Indicators
PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL

Port LED Indicators
10/100M (Fast Ethernet port), 10/100/1000M (Gigabit Ethernet port), PoE

Alarm Contact
2 relay outputs in one M12 A-coding 5-pin male connector with current carrying capacity of 1 A @ 30 VDC


Power Requirements

Input Voltage
WV: 24-110 VDC (16.8 to 137.5 VDC)

Overload Current Protection
Present

Connection
M23 connector

Reverse Polarity Protection
Present


Physical Characteristics

Housing
Metal, IP54 protection (optional protective caps available for unused ports)

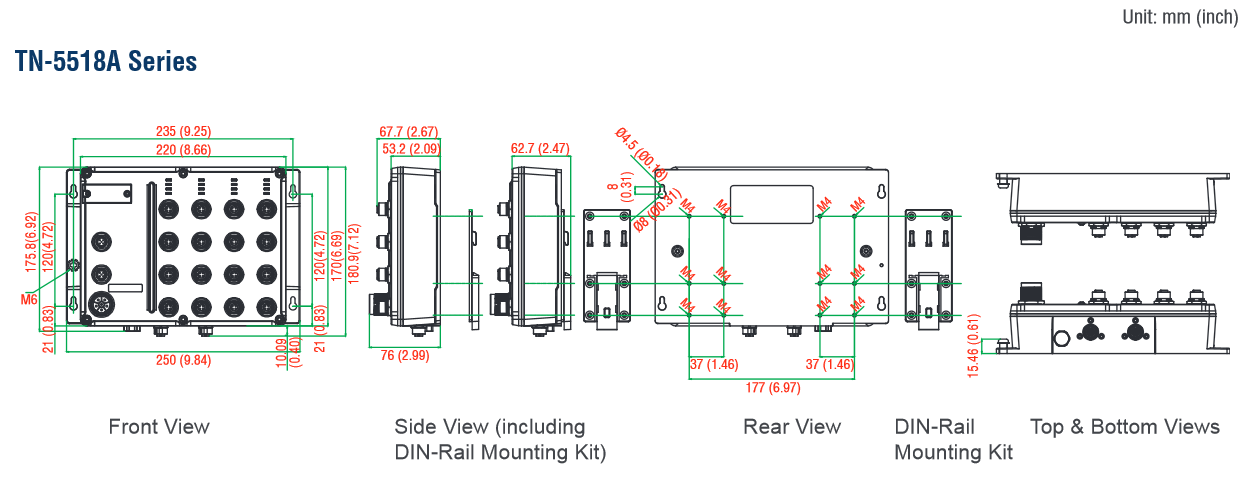

Dimensions
TN-5518A non-PoE Sseries: 250 x 180.9 x 76.0 mm (9.84 x 7.12 x 2.99 in)
TN-5518A-8PoE Series: 250 x 180.9 x 115 mm (9.84 x 7.12 x 4.53 in)

Installation
Panel mounting, DIN-Rail mounting (with optional kit: DK-DC50131)


Environmental Limits

Operating Temperature
-40 to 75°C (-40 to 167°F)

Storage Temperature
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

Altitude
Up to 2000 m

Note Please contact us if you require products guaranteed to function at higher altitudes


Standards and Certifications

Safety
UL/cUL 508 (Pending)

EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS
EN 61000-4-2 (ESD) Level 3
EN 61000-4-3 (RS) exceeds Level 3
EN 61000-4-4 (EFT) Level 3
EN 61000-4-5 (Surge) Level 3
EN 61000-4-6 (CS) Level 3
EN 61000-4-8

Rail Traffic
(for panel mounting installations)
EN 50155, EN 50121-4, EN 50121-3-2

Shock
IEC 61373

Freefall
IEC 60068-2-32

Vibration
IEC 61373




Ordering Information
Available Models
TN-5518A-2GTX-WV-T Managed Ethernet switch with 16 10/100BaseT(X) ports, and 2 10/100/1000BaseT(X) ports with M12 connectors, dual redundant power inputs (24 - 110 VDC), -40 to 75°C operating temperature
TN-5518A-2GTX-WV-CT-T Managed Ethernet switch with 16 10/100BaseT(X) ports, and 2 10/100/1000BaseT(X) ports with M12 connectors, dual redundant power inputs (24 - 110 VDC), -40 to 75°C operating temperature, conformal coating model
TN-5518A-2GTXBP-WV-T Managed Ethernet switch with 16 10/100BaseT(X) ports, and 2 10/100/1000BaseT(X) ports with M12 connectors, 2 Gigabit ports with bypass relay function support, dual redundant power inputs (24 - 110 VDC), -40 to 75°C operating temperature
TN-5518A-2GTXBP-WV-CT-T Managed Ethernet switch with 16 10/100BaseT(X) ports, and 2 10/100/1000BaseT(X) ports with M12 connectors, 2 Gigabit ports with bypass relay function support, dual redundant power inputs (24 - 110 VDC), -40 to 75°C operating temperature, conformal coating model



PDF

PDF description MOXA TN-5518A Series Datasheet (984.7 kB)
