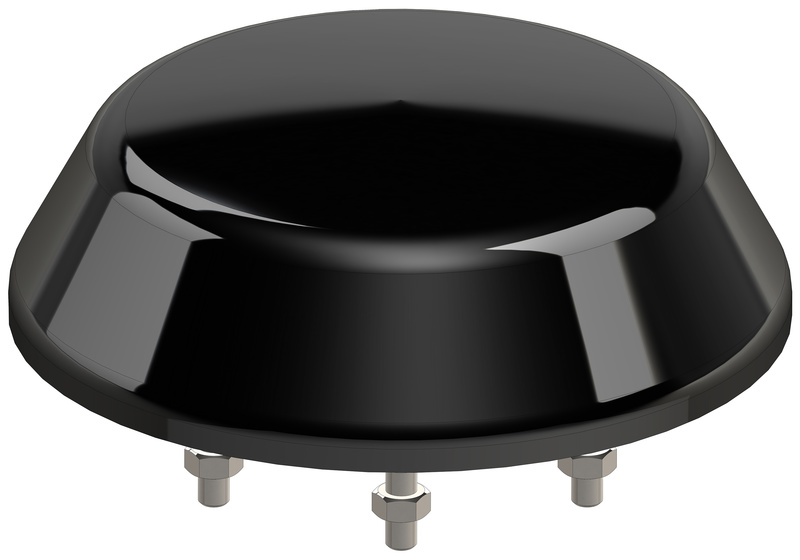

Antonics OmPlecs-TOP 200 AMR MF-05 -4-

Multiband-Train Antenna with certification / approval according to train standard EN 50155 for mounting on trains and vehicles

Antonics OmPlecs-TOP 200 AMR MF-05 -4-
  • DescriptionDescription
  • Further InformationFurther Information
  • PDFPDF
Multiband-Train Antenna with certification / approval according to train standard EN 50155 for mounting on trains and vehicles


HF-Ports:

    ⓐ / ⓒ- WLAN / WiFi kreuzpolarisiert
    ⓑ / ⓓ - WLAN / WiFi vertikal



Frequenzen

  • 2400 - 2500 (WLAN 2.4)
  • 5180 - 5835 (WLAN 5.8)


ProdGrafik

Technical data / Technische Daten
RF-Port ⓐ / ⓒ ⓑ / ⓓ
Spectrum WLAN / WiFi WLAN / WiFi
Frequency [MHz] 2400 -2500
5180 -5835
2400 -2500
5180 -5835
Polarization cross polarized vertical
Pattern omnidirectional omnidirectional
Gain 8 dBi (WLAN 2.4)
10 dBi (WLAN 5.8)
10,3 dBi (WLAN 2.4)
9,6 dBi (WLAN 5.8)
Average gain 4,5 dBi 4,5 dBi
Efficiency 96,5 % 97 %
VSWR ≤ 1,8 typ. ≤ 1,8 typ.
Impedance 50 Ω 50 Ω
Antenna type Patch antenna Patch antenna
Power / DC Voltage 50 W 50 W
RF-Connection N(f) N(f)
Ground-plane integrated integrated
Mechanical properties / Mechanische Eigenschaften
Size D: 200 mm / H: 60 mm
Mounting 6 bolts on pitch circle 110 mm, M8 x 40 mm, 60° Torque: 12 Nm
Color Black or customized (all RAL types)
Weight ca. 1500 g
Proof of Voltage 25 kV AC / 3kV DC
Temp. range -60°C to +80°C
Degree of Protection Plastic case UV-resistance, waterproof IPX 9k
Certification EN 50155, EN 50122, EN 50124, IEC 60068, IEC 61373, ISO 20653, ISO 9227, EN 45545-2, DIN 5510-2, NF F 16-102 2014/30/EU; 2006/28/EC; 2002/95/EC
Drilling pattern on demand
Drilling template on demand
Article number 100-58-80-04
