Antonics OmPlecs 30 WA 900/1800/2000
Automotive antenna - GSM 900 -GSM 1800 -UMTS 2100
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Description
Further Information
PDF

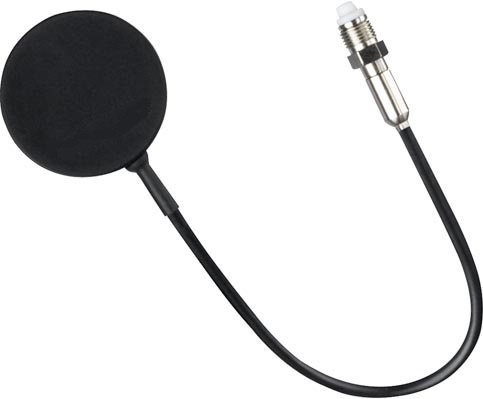

Dualband transmitting and receiving antenna forsticking on inside glass.
Frequenzen
Frequenzen
- 1710 - 1990 (GSM 1800/PCS)
- 1885 - 2170 (UMTS)
| Technical data / Technische Daten | |
| RF-Port | ⓐ |
| Spectrum | GSM 900 / GSM 1800 / UMTS 2100 |
| Frequency [MHz] | 890 - 960 1710 - 1890 1885 - 2170 |
| Polarization | vertical |
| Pattern | omnidirectional |
| Gain | 2 dBi typ. |
| Average gain | 0 dBi |
| Efficiency | 85 % |
| VSWR | ≤ 1,8 typ. |
| Impedance | 50 Ω |
| Antenna type | Patch-antenna |
| Power / DC Voltage | 50 W |
| RF-Connection | 2,2 m RG174 with FME(f) straight connector or customized |
