Legrand Power Distribution Units (PDUs)

prodgraf


ZERO-U AND 19’’ 1-U PDUs



Description

Legrand has leveraged its expertise to develop its new range of PDUs designed to function at the heart of your installations. Available in 2 formats - standard and customized configurations - the versatility of our range offers you greater flexibility and responsiveness.

Further Information

CUSTOMIZED CONFIGURATIONS - ZERO-U AND 19’’ 1-U PDUs



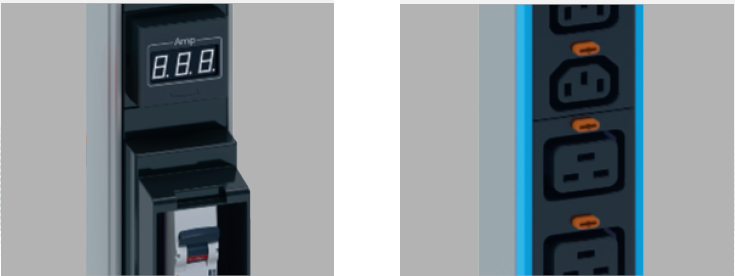

CHOICE OF FUNCTIONS ON DEMAND
16/32 A power supply - for single-phase or three-phase PDUs

Wide choice of outlet standards:
Additional functions:

EXAMPLES OF CUSTOMIZED SOLUTIONS
The modular designmeans we can build PDUs to specific configurations.

19’’ 1U PDU with 2 French standard 2P+E outlets, 1 C19 outlet and 6 C13 outlets. Powered via a 3m power supply cord and a C20 plug.

Zero-U PDU with 12 French standard 2P+E outlets. Red colour coding for identification of PDU. Powered through rotating cable entry via 4.5mcord and a 16 A IEC 60309 plug.



Energy Distribution
1U Power Distribution Units (PDU)





To provide A electric power for IT equipments in enclosures. 230 V - 50/60 Hz power supply. 1U aluminium profile. End cap with metallic brackets and cable holder shape.Quick fixing (no screws) on 19" fixing centres. Can also be installed vertically by reverting the brackets (no screws). 2P+E outlets: Blackmodules (outlets and functions)





To provide A electric power for IT equipments in 19" enclosures Single phase 230 V - 50/60 Hz power supply
Zero-U PDU for vertical mounting in the cabinet (see p. 18-19 for dimensions) PDU with 2 circuits protected by 16 A uni+neutral MCB in a support with projecting edges to avoid accidental breakdown
Each circuit is identified by color coding
The total number of outlets is distributed equally between the 2 circuits 330° rotating cable input for a perfect orientation of the cable and no interference in the cabinet
2P+E outlets:
- C13 and C19 standard outlets are equipped with cord locking system to avoid any accidental disconnection. Universal solution compatible with all the cords (C14 plugs for C13 and C20 plugs for C19)
- French, German and British standard outlets are equipped with shutters - French and German standard outlets are inclined at 55°
Delivered with 2 sets of metallic mounting brackets (see details p. 18-19):
- Button brackets. For quick fixing and variable pitch
- Standard brackets. For screw fixing
Blackmodules (outlets and functions). Aluminium profile
To provide A electric power for IT equipments in 19" enclosures Three phase 380 V - 50/60 Hz power supply

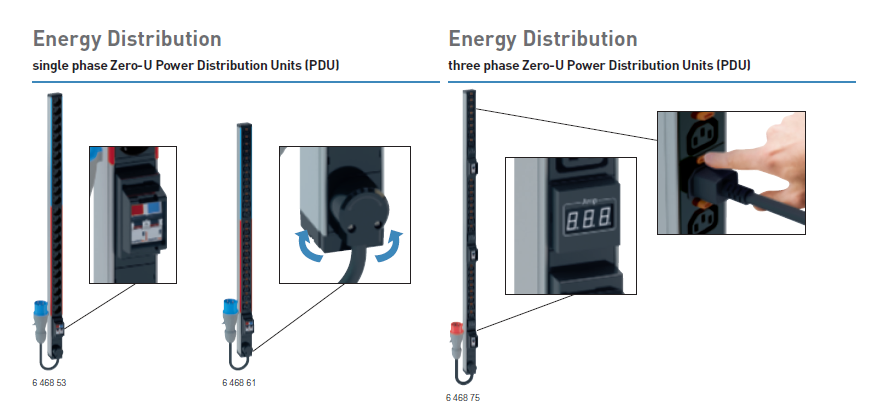

Zero-U PDU for vertical mounting in the cabinet (see p. 18-19 for dimensions)
Each circuit is protected by 16 A single pole MCB in a support with projecting edges to avoid accidental breakdown
1 circuit per phase, each with 6 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets
330° rotating cable input for a perfect orientation of the cable and no interference in the cabinet
C13 and C19 standard outlets are equipped with cord locking system to avoid any accidental disconnection. Universal solution compatible with all the cords (C14 plugs for C13 and C20 plugs for C19)
Delivered with 2 sets of metallic mounting brackets:
- Button brackets. For quick fixing and variable pitch
- Standard brackets. For screw fixing
Blackmodules (outlets and functions)
Aluminium profile



Customized solutions
zero-U PDU and 1U 19"


CHOICE OF FUNCTIONS
16/32 A power supply - for single phase or three phase PDU

Wide choice of outlets standards
- German
- British
- French
- C13
- C19

Termination:
- on terminal block
- on fast or C20 connector
- with power supply cord (lengths, sheath types and plug types to be selected)

Additional functions:

- MCB, RCBO, fuse, surge protector
- switch
- power indicator
- ammeter
- identification of sources or circuits by color coding


EXAMPLES OF CUSTOMIZED SOLUTIONS


19’’ 1U PDU with 2 French standard 2P+E outlets, 1 C19 outlet and 6 C13 outlets. Powered with a 3 m power supply cord and a C20 plug

Zero-U PDU with 12 French standard 2P+E outlets. Red color coding for identification of PDU. Powered through rotating cable input via 4.5 m cord and a 16 A IEC 60309 plug



PDF

PDF description EXB16039_Brochure PDU_EN (8034.4 kB)
