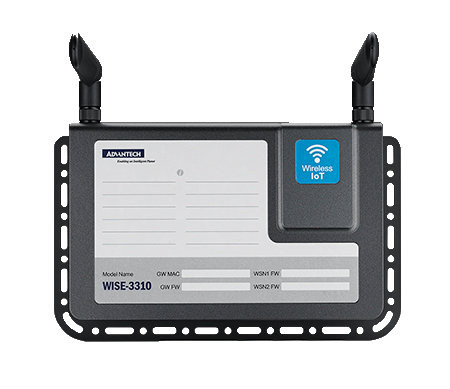

Advantech WISE-3310

Advantech RISC-based WPAN Network Controller, WISE-3310, is powered by the Freescale i.MX6 Dual Cortex-A9 1.0 GHz processor, Linux 3.10.17 BSP and Linear Dust LTC5800 Cortex M3 MCU with Smartmesh core technology for IEEE 802.15.4e standards. With changeable embedded modules and feature-rich protocol, WISE-3310 creates a cost-effective open platform for easy integration and development in different M2M/IoT applications. Also, it is integrated with WISE-PaaS/RMM for IoT Software platform to complete and streamline the IoT solution, from sensor to cloud.

Product Specifications

Part Number	WISE-3310-D100L1E	WISE-3310-D200L1E
Memory
Technology	DDR3 1066 MHz
Capacity	On-board DDR3 1 GB
Flash	4GB eMMC forO.S and 4MB NOR flash for Advantech boot loader
Processor
CPU	NXP ARM® Cortex®-A9 i.MX6 Dual core
Ethernet
Chipset	NXP i.MX6 integrated RMII
Speed	1 10/100/1000 Mbps
PoE	N/A
WSN
Standard	Complaint 6LoWPAN and IEEE802.15.4e
Network Topology	Mesh
WSN Network size	100 nodes	200 nodes
Frequency Band	2.400 ~ 2.4800 GHz
Number of Channel	15
Channel Separation	5 MHz
Raw Data Rate	250 Kbps
Output Power	Hight setting: 8 dBm/ Low seeting: 0 dBm
Wireless
WiFi	IEEE 802.11bgn (option)
Cellular	N/A
Graphics
HDMI	N/A
VGA	N/A
RTC
RTC	Yes
Watchdog Timer
Watchdog Timer	Yes
Indicator and Button
Audio	N/A
GPIO	N/A
USB	N/A
CANBus	N/A
I2C	N/A
Button	1 reset button for system reboot
LED	2, for WSN status
Mini PCIe Socket	1 half-size Mini PCIe slot
Serial Port	1 x RS-232 (CTS, RTX, Tx, Rx)
SD Socket	1x SD slot
Switch	1 Power Switch
Expansion
Antenna Hole	Reserved 3 (SMA)	Reserved 2 (SMA)
SIM Socket	N/A
Power
DC-input	DC 9~24V
Power Consumption (Max)	3.96W
Power Type	DC-in
Environment
Operational Temperature	Operating Humidity
0 ~ 40° C (32 ~ 104° F)	5% ~ 95% Relative Humidity, non-condensing
Mechanical
Dimensions (with a metal plate)	205 x 126 x 31 mm
Dimensions (without a metal plate)	180 x 114 x 31 mm
Mounting	Metal bracket wall mount
Weight	312g
Operating System
Linux	V3.10.17
Certification
EMC	CE, FCC Class B
