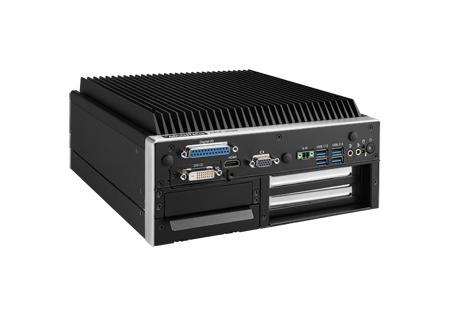

Advantech ARK-3520L
6th Gen. Intel® Core™ i3/ i5/ i7 Modular Expansion Fanless Box PC
- 6th Gen. Intel® Core™ i3/i5/i7 mobile processor (BGA)
- Triple independent display: VGA + HDMI + Optional Display
- DDR4 SO-DIMM memory support up to 32 GB
- Option 9-36V power module compatible with all-in-one ordering
- Optional modular design for 2.5" hard drive bays : internal /removable (support up to 2 sets)
- Advantech iDoor module compatible
- Advantech EMIO miniPCIe module compatible with all-in-one ordering
- Advantech ARK Plus AMO-3xxx series module compatible
6th Gen. Intel® Core™ i3/ i5/ i7 Modular Expansion Fanless Box PC
Specifications
Processor System
- CPU
Intel Core i7-6820EQ
Intel Core i5-6440EQ
Intel Core i3-6100E (support by T-P/N)
Frequency
2.8 GHz (Quad Core)
2.7 GHz (Quad Core)
2.7 GHz (Dual Core)
L3 Cache
8 MB
6 MB
3 MB
Watts
45W
45W
35W
System Chipset
Intel QM170
BIOS
AMI EFI 128Mbit
Memory
- Technology
DDR4 2133 MHz
Max. Capacity
32 GB
Socket
2 x 260-pin SO-DIMM
Graphics
- Chipset
Intel QM170 Integrated GFX Gen 9
Graphic Engine
Direct x 12, OpenGL 4.4
HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.
HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
VGA
1920x1200@ 60Hz
HDMI
1 HDMI port, HDMI 1.4b for HD video playback, 3840x2160@30Hz
Optional 3rd Display module
DVI-D / DP / HDMI Display Port
Triple Display
VGA+HDMI + 3rd display module
Ethernet
- LAN1
10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN2
10/100/1000 Mbps Intel I210 GbE, support Wake On Lan
Audio
- Interface
Realtek ALC888S, High Definition Audio, Line-out, Mic-in
Others
- Watch dog Timer
255-level timer interval, setup by software
TPM
TPM 2.0 (Optional by project support)
I/O Interface
- Serial Port
4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control; COM 1,2 support 5V/12V power supply (by jumper)
USB
6 x USB 3.0 ports; 2 x USB 2.0 ports
DIO
16 bit DIO
P/S2
1 Port support by cable and bracket (Optional)
Parallel Port
D-sub 25pin connector (Optional)
Expansions
- Mini PCIe
2 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder)
M.2
1 x E key for WiFi
i Door
1 set (Optional)
ARK Plus
AMO-3501E 3 Slot Riser Card for 2x PCI+1xPCIx4
Storage
- HDD
1 x 2.5" SATAIII HDD Bay with Max Height 15mm, (1 internal 2.5" HDD Bay with one optional removable HDD Bay)
mSATA
1 x mSATA socket (Share 1 Mini PCIe)
Software Support
- Microsoft Windows
Windows 10, Windows 8.1, Windows 7
Linux
By Project Support
Power Requirements
- Power Type
AT/ATX
Power Input Voltage
12V (9-36V as optional)
Power Adapter
AC to DC, 150W (Optional)
Power Consumption
- Typical
11.4W
Max.
68.4W
46.5W
42.75W
Mechanical
- Construction
Aluminum housing
Mounting
Desk/wall-mounting
Dimensions (W x H x D)
220 x 101 x 233 mm (8.66" x 3.98" x 9.17")
Weight
4.8 kg (10.58 lb)
Environment
- Operating Temperature
with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
with HDD: 0 ~ 40° C with 0.7m/s air flow
Storage Temperature
-40 ~ 85° C
Relative Humidity
95% @ 40° C (non-condensing)
Vibration During Operation
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock During Operation
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMC
CE/FCC Class B, CCC, BSMI
Safety
CB, UL, CCC, BSM
Packing List
- ARK-3520 Unit
- User Manual (Simplified Chinese)
- China RoHS
- 2pin power switch terminal block
- 2 x mounting bracket
