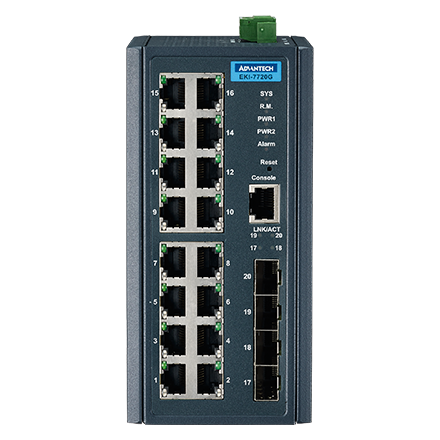

Advantech EKI-7720G-4F

16GE+4G SFP Managed Ethernet Switch

Advantech EKI-7720G-4F
  • PropertiesProperties
  • DescriptionDescription
  • Further InformationFurther Information
  • PDFPDF
  • 16 Gigabit Ethernet ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • -40 ~ 75°C wide-range operating temperature (EKI-7720G-4FI)
  • Dual 12~48 VDC power input and 1 relay output

EKI-7720G-4F/4FI supports 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advan-tech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7720G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7720G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7720G-4FI).
ProdGrafik

Specifications

    Interface

      I/O Port
      16 x 10/100/1000BASE-T/TX RJ-45
      4 x SFP (mini-GBIC) port

      Console port
      RS-232 (RJ45)

      Power Connector
      6-pin screw Terminal Block (including relay)



    Physical

      Enclosure
      Metal Shell

      Protection Class
      IP 30

      Installation
      DIN-Rail

      Dimensions (W x H x D)
      74 x 152 x 105 mm (2.91" x 5.98" x 4.13")



    LED Display

      System LED
      PWR1, PWR2, SYS, Alarm and R.M.

      Port LED
      Link / Speed / Activity



    Environment

      Operating Temperature
      -40 ~ 75°C (-40 ~ 167°F) (7720G-4FI)
      -10 ~ 60°C (-40 ~ 140°F) (7720G-4F)

      Storage Temperature
      -40 ~ 85°C

      Ambient Relative Humidity
      10 ~ 95% (non-condensing)

      Humidity
      10 ~ 95% (non-condensing)



    Power

      Power Consumption
      TBC

      Power Input
      12 ~ 48 VDC, redundant dual power input

      Fault Output
      1 Relay Output



    Certification

      EMI
      CE, FCC Class A

      Safety
      UL61010-2-201 IEC60950*

      EMC
      EN 61000-4-2
      EN 61000-4-3
      EN 61000-4-4
      EN 61000-4-5
      EN 61000-4-6
      EN 61000-4-8
      EN50121-4

      Shock
      IEC 60068-2-27

      Freefall
      IEC 60068-2-32

      Vibration
      IEC 60068-2-6

      Traffic control
      NEMA TS2
      *= Compliant



    L2 Features

      L2 MAC Address
      8K

      Jumbo Frame
      9216 Bytes

      VLAN Group
      256 (VLAN ID 1 ~ 4094)

      VLAN Arrange
      Port based VLAN, Q-in-Q (VLAN Stacking), GVRP

      Port Mirroring
      Per port, Multi-source port,

      IP Multicast
      IGMP Snooping v1/v2/v3, MLD Snooping, IGMP Immediate leave

      Storm Control
      Broadcast, Multicast, Unknown unicast

      Redundancy
      IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP,
      X-Ring Pro, with ultra high-speed recovery time less than 20ms



    QoS

      Priority Queue Scheduling
      WRR (Weighted Round Robin), SP (Strict Scheduling Priority) Hybrid Priority

      Class of Service
      IEEE 802.1p Based CoS, IP TOS, DSCP based CoS

      Rate Limiting
      Ingress Rate limit, Egress Rate limit

      Link Aggregation
      IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking



    Security

      Port Security
      Static, Dynamic IP Source Guard, ARP Spoofing
      Prevention, Access Control List, DHCP Snooping,

      Authentication
      802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), TACACS+



    Management

      DHCP
      Client, Server, Option66/67/82

      Access
      SNMP v1/v2c/v3, WEB, Telnet, RMON, Standard MIB, Private MIB

      Security access
      SSH2.0, SSL

      Software upgrade
      TFTP, HTTP, Dual Image

      NTP
      SNTP client




    ORDERING INFORMATION

    Available Modules
    EKI-7720G-4F 16GE + 4SFP Port Managed Ethernet Switch
    EKI-7720G-4FI 16GE + 4SFP Port Managed Ethernet Switch w/Wide Temp
