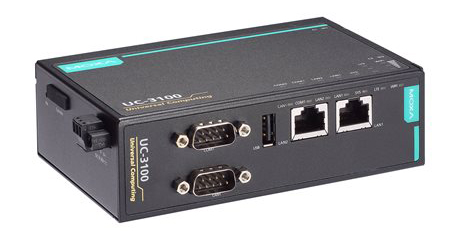

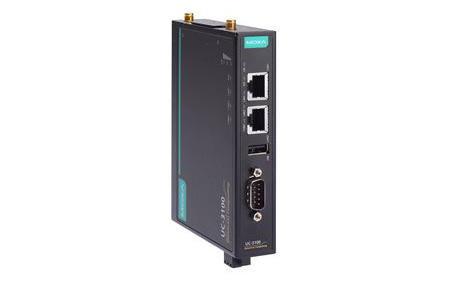

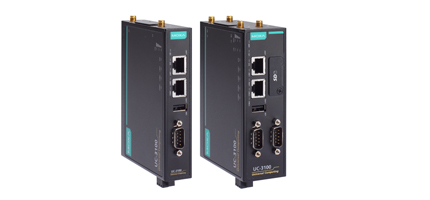

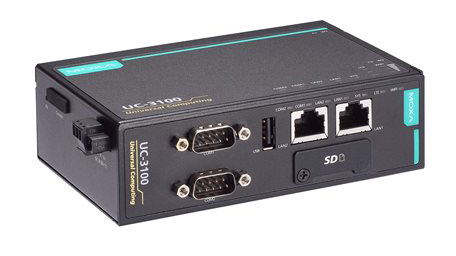

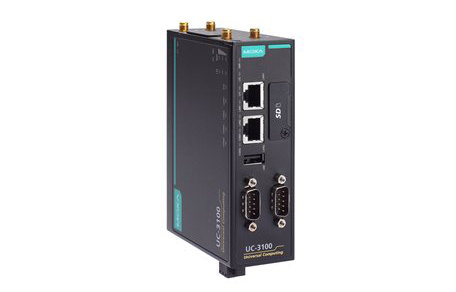

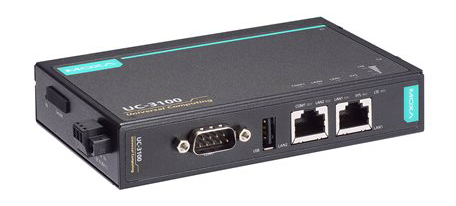

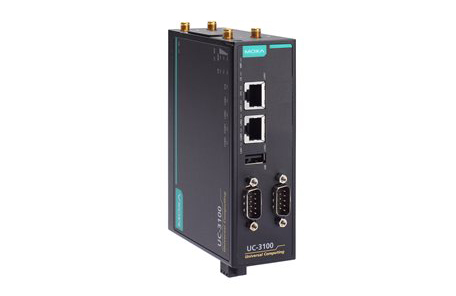

MOXA UC-3100 Series

Arm-based wireless-enabled DIN-rail industrial computer with 2 serial ports, 2 LAN ports, and 1 CAN ports

MOXA UC-3100 Series
  • PropertiesProperties
  • DescriptionDescription
  • Further InformationFurther Information
  • PDFPDF
  • Armv7 Cortex-A8 1000 MHz processor
  • Integrated Wi-Fi 802.11a/b/g/n and LTE Cat. 1 for the US, EU, and APAC regions
  • Bluetooth 4.2 support
  • LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
  • Industrial CAN 2.0 A/B protocols supported
  • -40 to 70°C operating temperature range
  • Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
  • Long-term Linux support until 2027; includes bug fixes and security patches

Moxa's UC-3100 Series computers can be used as smart gateways in the field for data pre-processing and transmission, as well as for other embedded data-acquisition applications. The series includes a diverse set of models, each supporting different wireless options and protocols. The UC-3100?s advanced heat-dissipation design makes it suitable for use in temperatures ranging from -40 to 70°C. In fact, the Wi-Fi and LTE connections can be used simultaneously in both cold and hot environments, allowing you to maximize data pre-processing and transmission capabilities of your applications in harsh operating environments.

The UC-3100 is more than just a hardware solution. In order to offer a better user experience with a Moxa Arm-based computer, the UC-3100 comes equipped with Moxa Industrial Linux, a high-performance industrial-grade Linux distribution with long-term support that is developed by Moxa.


Applications
  • Remote Terminal Unit (RTU)
  • Data acquisition
  • M2M communication (smart gateway)
  • Digital signage
  • Factory automation
  • In-vehicle monitor/data logger (transportation)
  • Programmable router
  • Energy usage optimization
  • Predictive maintenance
  • Asset management

ProdGrafik

Specifications


Computer
CPU Armv7 Cortex-A8 1 GHz
DRAM 1 GB DDR3
Supported OS Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL
See www.moxa.com/MIL
Storage Pre-installed 8 GB eMMC
Storage Slot UC-3111/3121 models:
SD slots x 1
Computer Interface
Ethernet Ports Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
Serial Ports UC-3101/3121 models:
RS-232/422/485 ports x 1, software-selectable (DB9 male)
UC-3111 models:
RS-232/422/485 ports x 2, software-selectable (DB9 male)
CAN Ports UC-3121 models:
CAN 2.0 A/B x 1 (DB9 male)
Wi-Fi Antenna Connector UC-3111/UC-3121 models:
RP-SMA x 2
Cellular Antenna Connector SMA x 2
SIM Format Nano
Number of SIMs 2
GPS Antenna Connector SMA x 1
USB 2.0 USB 2.0 hosts x 1, type-A connectors
Console Port RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
TPM TPM v2.0
Ethernet Interface
Magnetic Isolation Protection 1.5 kV (built-in)
Serial Interface
No. of Ports UC-3101/3121 models: 1
UC-3111 models: 2
Baudrate 50 bps to 921.60 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, xON/xOFF
ADDC (automatic data direction control) for RS-485
RTS Toggle (RS-232 only)
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
CAN Interface
No. of Ports UC-3121 models: 1
Baudrate 10 to 1000 kbps
Connector DB9 male
Isolation 2 kV (built-in)
Signals CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
Cellular Interface
Band Options US Band:
LTE Bands: Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 12 (700 MHz) /
Band 13 (700 MHz) / Band 14 (700 MHz) / Band 66 (1700 MHz) / Band 71 (600 MHz)
UMTS Bands: 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz)
Carrier Approval: Verizon, AT&T

EU Band:
LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 7 (2600 MHz) /
Band 8 (900 MHz) / Band 20 (800 MHz) / Band 28A (700 MHz)
UMTS Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) Band 8 (900 MHz)

APAC Bands:
LTE Bands: Band 1 (2100 MHz) / 3 (1800 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) /
Band 9 (1700 MHz) / Band 18 (850 MHz) / Band 19 (850 MHz) / Band 26 (850 MHz) / Band 28 (700 MHz)
UMTS Bands: 1 (2100 MHz) / Band 5 (850 MHz) / Band 6 (800 MHz) / Band 8 (900 MHz) / Band 19 (800 MHz)
WLAN Interface
Frequency Band UC-3111-T-Lx/UC-3121-T-Lx: 2.4 GHz/5 GHz
LED Indicators
System Power x 1
CAN UC-3121 models:
1 per port (Tx, Rx)
Serial 1 per port (Tx, Rx)
LAN 1 per port (10/100 Mbps)
Wireless Signal Strength UC-3101 models:
Cellular x 3
UC-3111/UC-3121 models:
Cellular x 3 and Wi-Fi x 3
Power Parameters
Input Current UC-3101 models: 0.75 A @ 9 VDC, 0.18 A @ 36 VDC
UC-3111 models: 0.87 A @ 9 VDC, 0.21 A @ 36 VDC
UC-3121 models: 0.83 A @ 9 VDC, 0.21 A @ 36 VDC
Input Voltage 9 to 36 VDC
Power Consumption UC-3101 models: 6.75 W
UC-3111 models: 7.83 W
UC-3121 models: 7.56 W
Physical Characteristics
Housing Metal
Dimensions (without ears) UC-3101 models:
128.5 x 89.1 x 26 mm (5.06 x 3.51 x 1.02 in)
UC-3111/UC-3121 models:
128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in)
Weight Product Only: 550 g (1.22 lb)
Installation DIN-rail mounting
Wall mounting (with optional kit)
Environmental Limits
Operating Temperature -40 to 70°C (-40 to 158°F)
Storage Temperature
(package included)		 -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
EMC EN 61000-6-2/-6-4
EN 55032/35
UKCA
RCM
UC-3101 models:
KC
EMI FCC Part 15B Class A
ICES-003 Class A
EN 55032 Class A
EN 61000-6-4 Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Radio Frequency CE
FCC
UKCA
RCM
UC-3101 models:
KC
Carrier Approvals UC-3101/3111/3121-T-US-Lx:
AT&T, Verizon, and PTCRB
International Approval CE
FCC
UKCA
RCM
UC-3101 models:
KC
UC-3111 models:
ANATEL
ENACOM
IFETEL/NOM
NBTC
SUBTEL
WPC
Safety IEC 60950-1
UL 60950-1
IEC 62368-1
UL 62368-1
Shock IEC 60068-2-27
Vibration IEC 60068-2-64
2 grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached)
Hazardous Locations Class I Division 2
ATEx
IECEx
Green Product RoHS, CRoHS, WEEE
MTBF
Time UC-3101-T-US-Lx: 702,846 hrs
UC-3101-T-EU-Lx/T-AP-Lx: 585,775 hrs
UC-3111-T-US-Lx: 465,569 hrs
UC-3111-T-EU-Lx/T-AP-Lx: 416,081 hrs
UC-3121-T-US-Lx: 474,796 hrs
UC-3121-T-EU-Lx/T-AP-Lx: 428,931 hrs
Standards Telcordia (Bellcore) Standard
Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
Package Contents
Device 1 x UC-3100 Series computer
Cable 1 x terminal block to power jack converter
Documentation 1 x quick installation guide
1 x warranty card


Ordering Information

Model Name Carrier
 Approval  		   CPU     SD Slot    Serial     CAN   LTE   Wi-Fi     BLT
UC-3101-T-US-LX AT&T,
Verizon 		  Arm Cortex-A8
1 GHz 		- 1 -   Cat. 1   - -
UC-3111-T-US-LX AT&T,
Verizon		 Arm Cortex-A8
1 GHz 		1 2 - Cat. 1 ✓ ✓
UC-3111-T-US-LX-NW AT&T,
Verizon 		Arm Cortex-A8
1 GHz 		1 2 - Cat. 1 - -
UC-3121-T-US-LX AT&T,
Verizon 		Arm Cortex-A8
1 GHz 		1 1 1 Cat. 1 ✓ ✓
UC-3101-T-EU-LX - Arm Cortex-A8
1 GHz 		- 1 - Cat. 1 - -
UC-3111-T-EU-LX - Arm Cortex-A8
1 GHz 		1 2 - Cat. 1 ✓ ✓
UC-3111-T-EU-LX-NW     - Arm Cortex-A8
1 GHz 		1 2 - Cat. 1 - -
UC-3121-T-EU-LX - Arm Cortex-A8
1 GHz 		1 1 1 Cat. 1 ✓ ✓
UC-3101-T-AP-LX - Arm Cortex-A8
1 GHz 		- 1 - Cat. 1 - -
UC-3111-T-AP-LX - Arm Cortex-A8
1 GHz 		1 2 - Cat. 1 ✓ ✓
UC-3111-T-AP-LX-NW - Arm Cortex-A8
1 GHz 		1 2 - Cat. 1 - -
UC-3121-T-AP-LX - Arm Cortex-A8
1 GHz 		1 1 1 Cat. 1 ✓ ✓
