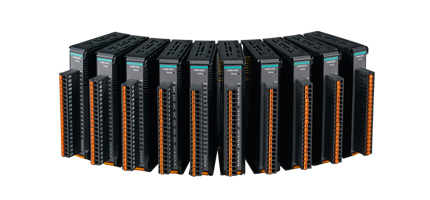

MOXA ioThinx 4500 Series (45MR) Modules
Modules for ioThinx 4500 Series
Properties
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- I/O modules include DI/Os, AI/Os, relays, and other I/O types
- Power modules for system power inputs and field power inputs
- Easy tool-free installation and removal
- Built-in LED indicators for IO channels
- Wide operating temperature range: -40 to 75°C (-40 to 167°F)
- Class I Division 2 and ATEX Zone 2 certifications
Moxa?s ioThinx 4500 Series (45MR) Modules are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.
Easy Tool-Free Installation and Removal
The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.
Specification
-
Digital Input Channels
45MR-1600: 16
45MR-1601: 16
45MR-2606: 8 -
Digital Output Channels
45MR-2600: 16
45MR-2601: 16
45MR-2606: 8 -
Analog Input Channels
45MR-3800: 8
45MR-3810: 8 -
Relay Channels
45MR-2404: 4
-
Analog Output Channels
45MR-4420: 4
-
RTD Channels
45MR-6600: 6
-
Thermocouple Channels
45MR-6810: 8
-
System Power Input Channels
45MR-7210: 1
-
Field Power Input Channels
45MR-7210: 1
-
Field Potential Output Channels
45MR-7820: 8
-
Isolation
3k VDC or 2k Vrms
-
Connector
Spring-type Euroblock terminal
-
Sensor Type
Dry contact
Wet contact (NPN or PNP) -
I/O Mode
45MR-1600/1601: DI or event counter (only supports the first 4 channels)
45MR-2606: DI or event counter (only supports the first 2 channels) -
Dry Contact
On: short to FP+/FP-
Off: open -
Wet Contact (DI to FP-)
On: 10 to 30 VDC
Off: 0 to 3 VDC -
Wet Contact (DI to FP+)
On: 10 to 30 VDC
Off: 0 to 3 VDC -
Counter Frequency
1 kHz
-
Digital Filtering Time Interval
Software configurable
-
Connector
Spring-type Euroblock terminal
-
I/O Type
45MR-2600: Sink
45MR-2601/2606: Source -
I/O Mode
45MR-2600/2601: DO or pulse output (only supports the first 4 channels)
45MR-2606: DO or pulse output (only supports the first 2 channels) -
External Power
12/24 VDC
-
Pulse Output Frequency
1 kHz
-
Over-Voltage Protection
45 VDC
-
Over-Temperature Shutdown
175°C (typical), 150°C (min.)
-
Current Rating
500 mA per channel
-
Connector
Spring-type Euroblock terminal
-
Type
Form A (N.O.) power relay
-
I/O Mode
DO
-
Contact Current Rating
Resistive load: 2 A @ 30 VDC
Resistive load: 2 A @ 250 VAC -
Relay On/Off Time
10 ms (max.)
-
Initial Insulation Resistance
1000 mega-ohms (min.) @ 500 VDC
-
Mechanical Endurance
5,000,000 operations
-
Electrical Endurance
45MR-2404 Models: 50,000 operations @ 2 A resistive load
-
Contact Resistance
100 milli-ohms (max.)
-
Connector
Spring-type Euroblock terminal
-
I/O Mode
Voltage/Current
-
I/O Type
Differential
-
Resolution
16 bits
-
Input Range
45MR-3800: 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (burnout detection)
45MR-3810: 0 to 10 VDC or -10 to 10 VDC -
Over-Voltage Protection
-25 to +30 VDC (power on)
-35 to +35 VDC (power off) -
Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C -
Sampling Rate
All channels: 100 samples/sec
Per channel: 12.5 samples/sec
Single channel: 100 samples/sec -
Input Impedance
45MR-3800: 120 ohms
45MR-3810: 10 mega-ohms (min.)
-
Connector
Spring-type Euroblock terminal
-
I/O Mode
Voltage/Current
-
Output Range
0 to 10 VDC
0 to 20 mA
4 to 20 mA -
Resolution
12-bit
-
Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -40 to 75°C -
Load (Current Mode)
Internal power: 500 ohms (max.)
-
Load (Voltage Mode)
1000 ohms (min.)
-
Connector
Spring-type Euroblock terminal
-
Sensor Type
PT50, PT100, PT200, PT500 (-200 to 850°C)
PT1000 (-200 to 350°C)
JPT100, JPT200, JPT500 (-200 to 640°C)
JPT1000 (-200 to 350°C)
NI100, NI200, NI500 (-60 to 250°C)
NI1000 (-60 to 150°C)
NI120 (-80 to 260°C) -
Resistance Type
310, 620, 1250, and 2200 ohms
-
Input Connection
2- or 3-wire
-
Sampling Rate
All channels: 12 samples/sec
Per channel: 2 samples/sec -
Resolution
0.1°C or 0.1 ohms
-
Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C -
Input Impedance
625 kilo-ohms (min.)
-
Connector
Spring-type Euroblock terminal
-
Sensor Type
J, K, T, E, R, S, B, N
-
Millivolt Type
±19.532 mV
±39.062 mV
±78.126 mV -
Resolution
16 bits
-
Millivolt Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C -
Sampling Rate
All channels: 12 samples/sec
Per channel: 1.5 samples/sec -
Input Impedance
1 mega-ohms (min.)
-
Power Connector
Spring-type Euroblock terminal
-
No. of Power Inputs
1
-
Input Voltage
12 to 48 VDC
-
Output Current
1 A (max.)
-
Power Consumption
800 mA @ 12 VDC
-
Over-Voltage Protection
55 VDC
-
Over-Current Protection
1 A @ 25°C
-
Power Connector
Spring-type Euroblock terminal
-
No. of Power Inputs
1
-
Input Voltage
12/24 VDC
-
Output Current
2 A (max.)
-
Over-Current Protection
2.5 A @ 25°C
-
Over-Voltage Protection
33 VDC
-
Potential Output Mode
45MR-7820: 0 VDC, 12/24 VDC
-
System Power
45MR-1600: 59.4 mA @ 3.3 VDC
45MR-1601: 59.4 mA @ 3.3 VDC
45MR-2404: 44 mA @ 3.3 VDC
45MR-2600: 57.2 mA @ 3.3 VDC
45MR-2601: 63.8 mA @ 3.3 VDC
45MR-2606: 62.7 mA @ 3.3 VDC
45MR-3800: 197.3 mA @ 3.3 VDC
45MR-3810: 187 mA @ 3.3 VDC
45MR-4420: 44 mA @ 3.3 VDC
45MR-6600: 131.7 mA @ 3.3 VDC
45MR-6810: 148.1 mA @ 3.3 VDC
45MR-7210: 45m A @ 24 VDC -
Field Power
45MR-1600: 19.3 mA @ 12 VDC, 25.3 mA @ 24 VDC
45MR-1601: 19.3 mA @ 12 VDC, 25.3 mA @ 24 VDC
45MR-2404: 31.2 mA @ 12 VDC, 24.7 mA @ 24 VDC
45MR-2606: 15.4 mA @ 12 VDC, 18.7 mA @ 24 VDC
45MR-4420: 220.2 mA @ 12 VDC, 122.3 mA @ 24 VDC
-
Housing
Plastic
-
Dimensions
19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
-
Weight
45MR-1600: 77 g (0.17 lb)
45MR-1601: 77.6 g (0.171 lb)
45MR-2404: 88.4 g (0.195 lb)
45MR-2600: 77.4 g (0.171 lb)
45MR-2601: 77 g (0.17 lb)
45MR-2606: 77.4 g (0.171 lb)
45MR-3800: 79.8 g (0.176 lb)
45MR-3810: 79 g (0.175 lb)
45MR-4420: 79 g (0.175 lb)
45MR-6600: 78.7 g (0.174 lb)
45MR-6810: 78.4 g (0.173 lb)
45MR-7210: 77 g (0.17 lb)
45MR-7820: 73.6 g (0.163 lb) -
Installation
DIN-rail mounting
-
Strip Length
I/O cable, 9 to 10 mm
-
Wiring
45MR-2404: 18 AWG
45MR-7210: 12 to 18 AWG
45MR-2600/45MR-2601/45MR-2606: 18 to 22 AWG
All Other 45MR Models: 18 to 24 AWG
-
Operating Temperature
Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) -
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
5 to 95% (non-condensing) The relays of the 45MR-2404 may malfunction when operating in high condensation environments below 0°C.
-
Altitude
Up to 4000 meters Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
-
EMC
EN 55032/35
-
EMI
CISPR 32, FCC Part 15B Class A
-
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF -
Shock
IEC 60068-2-27
-
Vibration
IEC 60068-2-6
-
Safety
UL 61010-2-201
-
Hazardous Locations
ATEX, Class I Division 2
-
Green Product
RoHS, CRoHS, WEEE
-
Time
45MR-1600: 661,247 hrs
45MR-1601: 661,247 hrs
45MR-2404: 1,955,805 hrs
45MR-2600: 647,334 hrs
45MR-2601: 660,179 hrs
45MR-2606: 638,652 hrs
45MR-3800: 2,085,426 hrs
45MR-3810: 2,478,459 hrs
45MR-4420: 1,450,453 hrs
45MR-6600: 2,291,755 hrs
45MR-6810: 1,649,892 hrs
45MR-7210: 2,550,077 hrs
45MR-7820: 256,886,914 hrs -
Standards
Telcordia SR332
Ordering Information
| Model Name | Input/Output Interface | Digital Input |
Digital Output | Relay | Analog Input Type |
Analog Output Type | Power | Operating Temp. |
|---|---|---|---|---|---|---|---|---|
| 45MR-1600 | 16 x DI | PNP 12/24VDC | - | - | - | - | - | -20 to 60°C |
| 45MR-1600-T | 16 x DI | PNP 12/24VDC | - | - | - | - | - | -40 to 75°C |
| 45MR-1601 | 16 x DI | NPN 12/24 VDC | - | - | - | - | - | -20 to 60°C |
| 45MR-1601-T | 16 x DI | NPN 12/24 VDC | - | - | - | - | - | -40 to 75°C |
| 45MR-2404 | 4 x Relay | - | - | Form A 30 VDC/250 VAC, 2 A | - | - | - | -20 to 60°C |
| 45MR-2404-T | 4 x Relay | - | - | Form A 30 VDC/250 VAC, 2 A | - | - | - | -40 to 75°C |
| 45MR-2600 | 16 x DO | - | Sink 12/24 VDC | - | - | - | - | -20 to 60°C |
| 45MR-2600-T | 16 x DO | - | Sink 12/24 VDC | - | - | - | - | -40 to 75°C |
| 45MR-2601 | 16 x DO | - | Source 12/24 VDC | - | - | - | - | -20 to 60°C |
| 45MR-2601-T | 16 x DO | - | Source 12/24 VDC | - | - | - | - | -40 to 75°C |
| 45MR-2606 | 8 x DI, 8 x DO | PNP 12/24VDC | Source 12/24 VDC | - | - | - | - | -20 to 60°C |
| 45MR-2606-T | 8 x DI, 8 x DO | PNP 12/24VDC | Source 12/24 VDC | - | - | - | - | -40 to 75°C |
| 45MR-3800 | 8 x AI | - | - | - | 0 to 20 mA 4 to 20 mA |
- | - | -20 to 60°C |
| 45MR-3800-T | 8 x AI | - | - | - | 0 to 20 mA 4 to 20 mA |
- | - | -40 to 75°C |
| 45MR-3810 | 8 x AI | - | - | - | -10 to 10 VDC 0 to 10 VDC |
- | - | -20 to 60°C |
| 45MR-3810-T | 8 x AI | - | - | - | -10 to 10 VDC 0 to 10 VDC |
- | - | -40 to 75°C |
| 45MR-4420 | 4 x AO | - | - | - | - | 0 to 10 V 0 to 20 mA 4 to 20 mA | - | -20 to 60°C |
| 45MR-4420-T | 4 x AO | - | - | - | - | 0 to 10 V 0 to 20 mA 4 to 20 mA | - | -40 to 75°C |
| 45MR-6600 | 6 x RTD | - | - | - | RTD | - | - | -20 to 60°C |
| 45MR-6600-T | 6 x RTD | - | - | - | RTD | - | - | -40 to 75°C |
| 45MR-6810 | 8 x TC | - | - | - | TC | - | - | -20 to 60°C |
| 45MR-6810-T | 8 x TC | - | - | - | TC | - | - | -40 to 75°C |
| 45MR-7210 | 1 x system power input 1 x field power input | - | - | - | - | - | 1 x SP+ 1 x SP- 1 x FP+ 1 x FP- 1 x FP GND | -20 to 60°C |
| 45MR-7210-T | 1 x system power input 1 x field power input | - | - | - | - | - | 1 x SP+ 1 x SP- 1 x FP+ 1 x FP- 1 x FP GND | -40 to 75°C |
| 45MR-7820 | 8 x field power output | - | - | - | - | - | 8 x FP+ 8 x FP- | -20 to 60°C |
| 45MR-7820-T | 8 x field power output | - | - | - | - | - | 8 x FP+ 8 x FP- | -40 to 75°C |
