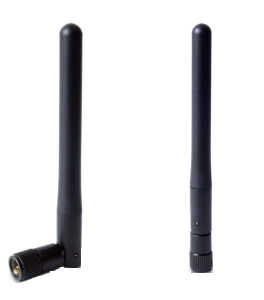

NetModule Antenna-Port-L
Direct mountable stick antenna for LTE
Properties
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- LTE
- UMTS
- GSM
- 704-960 MHz
- 1710-2620 MHz
Antenna-Port-L is an omnidirectional indoor antenna for use in telematics, monitoring applications and also testing. The antenna supports GSM, UMTS and also LTE and can be used in a temperature range from -20 °C to +65 °C. A joint allows flexible orientation of the antenna, which can be mounted directly to the router.
Specification
- Supported Technologies
GSM
UMTS
LTE
Cellular
Frequencies: 704 - 960 MHz / 1710 - 2620 MHz
Gain: 4.5 dBi (peak)
VSWR: <2.0
Impedance: 50 Ohm
Radiation: Omnidirectional
Temperature range
-20 to +65 °C
Environment
Indoor
Color
Black
Dimensions
Ĝ9.4 × 27 (W) × 87.5/105(H) mm
Mounting
Device mounting
Connectors
SMA(P) swivel
Order number
- Antenna-Port-L
