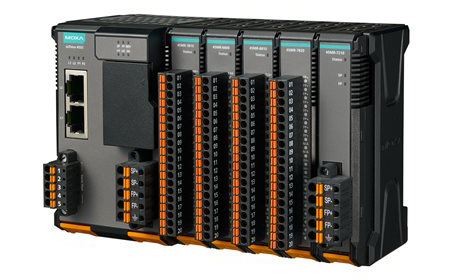

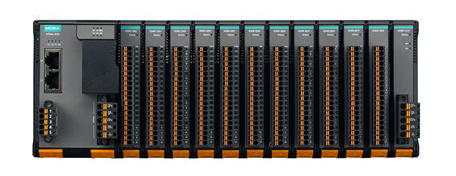

MOXA ioThinx 4530 Series

The ioThinx 4530 Series is an advanced modular controller product with a unique hardware design, making it an ideal solution for a variety of industrial data acquisition applications. The ioThinx 4530 Series has a unique mechanical design that reduces the amount of time required for installation and removal, simplifying deployment and maintenance. In addition, the ioThinx 4530 Series supports Moxa Industrial Linux and a built-in Azure/AWS/Alibaba cloud SDK so that users can easily save field data to different cloud accounts.

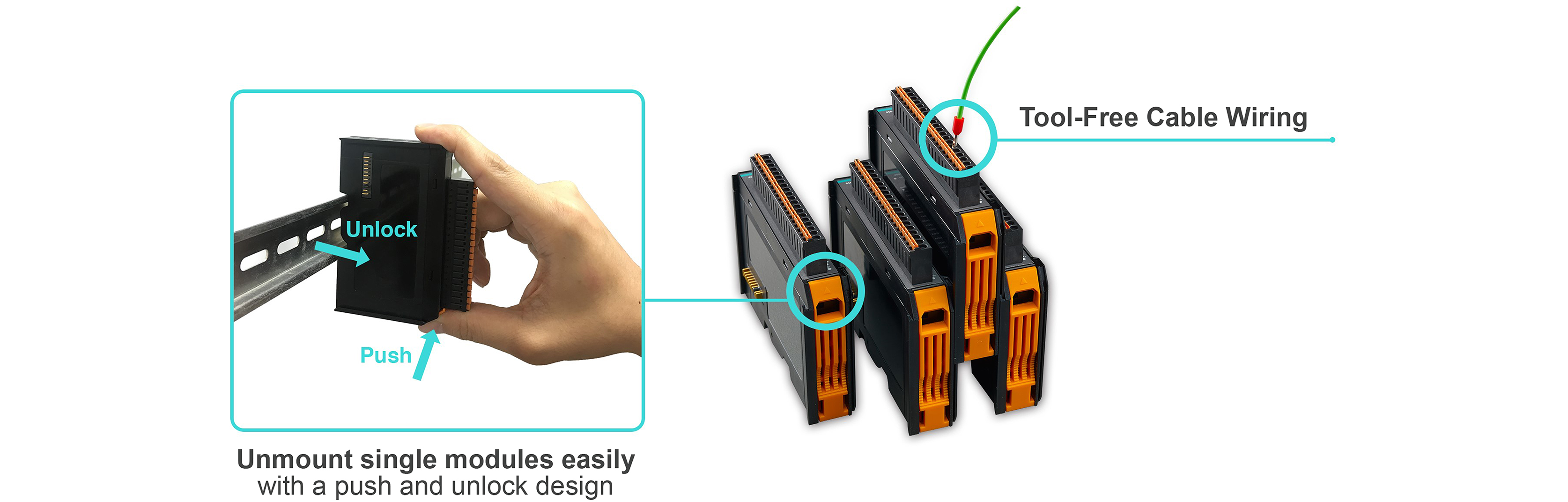

Easy Tool-free Installation and Removal

The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.

Built-in Azure/AWS/Alibaba Cloud Library

Saving field site data to the cloud to improve Overall Equipment Effectiveness (OEE) or implement predictive maintenance is an important aspect of IIoT or Industry 4.0 applications. To help users to connect to the cloud more easily, the ioThinx 4530 series has Azure/AWS/Alibaba cloud SDKs built in, saving engineers a lot of time on developing cloud connectivity applications.

Specification

Computer


CPU
NXP i.MX7D 1 GHz

OS
Linux kernel 4.4 (CIP, PREEMPT_RT), Debian 9

Clock
Real-time clock with capacitor backup

DRAM
512 MB DDR3

MRAM
128 kB

Storage Pre-installed
8 GB eMMC (6 GB reserved for the user)

Storage Slot
microSD Slots x 1 (up to 32 GB)

Expansion Slots
Up to 64



Control Logic


Language
C/C++, Python



Computer Interface


Buttons
Reset button



Inut / Output Interface


Rotary Switch
0 to 9



Ethernet Interface


10/100BaseT(X) Ports (RJ45 connector)
Auto negotiation speed

Magnetic Isolation Protection
1.5 kV (built-in)



Serial Interface


Console Port
RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

No. of Ports
1 x RS-232/422 or 2 x RS-485-2w

Connector
Spring-type Euroblock terminal

Serial Standards
RS-232/422/485 (software selectable)

Baudrate
1200 bps to 115.2 kbps

Flow Control
RTS/CTS

Parity
None, Even, Odd

Stop Bits
1, 2

Data Bits
7, 8



Serial Signal


RS-232
TxD, RxD, RTS, CTS, GND

RS-422
Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w
Data+, Data-, GND



System Power Parameters


Power Connector
Spring-type Euroblock terminal

No. of Power Inputs
1

Input Voltage
12 to 48 VDC

Power Consumption
1940 mA @ 12 VDC

Over-Current Protection
1 A @ 25°C

Over-Voltage Protection
55 VDC

Output Current
1 A (max.)



Fild Power Parameters


Power Connector
Spring-type Euroblock terminal

No. of Power Inputs
1

Input Voltage
12/24 VDC

Over-Current Protection
2.5 A @ 25°C

Over-Voltage Protection
33 VDC

Output Current
2 A (max.)



Physical Characteristics


Wiring
Serial cable, 16 to 28 AWG
Power cable, 12 to 26 AWG

Strip Length
Serial cable, 9 to 10 mm
Power cable, 12 to 13 mm

Housing
Plastic

Dimensions
60.3 x 99 x 75 mm (2.37 x 3.9 x 2.96 in)

Weight
207.7 g (0.457 lb)

Installation
DIN-rail mounting



Standards and Certification


EMC
EN 55032/24

EMI
CISPR 32, FCC Part 15B Class A

EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Shock
IEC 60068-2-27

Vibration
IEC 60068-2-6



MTBF


Standards
Telcordia SR332

Time
856,064 hrs



Environmental Limits


Operating Temperature
ioThinx 4533-LX: -20 to 60°C (-4 to 140°F)
ioThinx 4533-LX-T: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

Altitude
Up to 4000 m



Declaration


Green Product
RoHS, CRoHS, WEEE
