Advantech IPC-220

The current industrial automation market is trending towards increasingly compact form factors and intelligent designs that offer space savings and boost efficiency. Advantech’s IPC-220/240 is an ultra-compact industrial edge computer that features a wide operating temperature range, wide input power tolerance, and front-facing I/O for convenient access and easy deployment. Despite its compact size, the IPC-220/240 offers high expandability to support machine vision and motion control, making it ideal for industrial automation and equipment manufacturing applications. Moreover, with Advantech’s rapid and localized configuration services, the IPC-220/240 reduces the time-to-market for machine builders and accelerates the realization of Industry 4.0.


Ultra-Compact System with Card Expansion for Powerful Industrial IoT Application

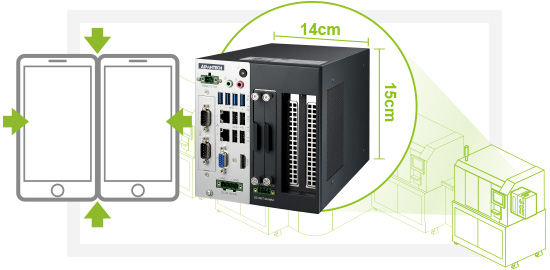

Designed to function as the intelligent edge for manufacturing equipment, IPC-220/240 is an ultra-compact modular system (140 x 230 x 150 mm/5.5 x 9 x 5.9 in for IPC-220 and 180 x 230 x 150 mm/7 x 9 x 5.9 in for IPC-240) equipped with 2/4 PCIe/PCI slots for integrating diverse add-on cards, such as I/O cards, motion cards, vision cards, and GPU cards to support machine control and vision applications, or provide artificial intelligence for automated optical inspection (AOI) operations.


Easy Deployment with Flexible Power Design and Front-Facing I/O

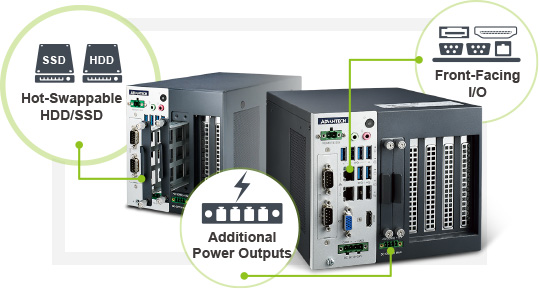

To ensure easy deployment for IoT installations with limited cabling space and complex power requirements, IPC-220/240 supports a wide power input range of 19 ~ 24 VDC and features front-facing I/O for easy access. The IPC-220/240 terminal can also support another device with the provision of 5 VDC/2A and 12 VDC/2A power output, simplifying in-field cabling requirements. Moreover, the system’s I/O interfaces, which include two GigaLAN, six USB 3.0, two USB 2.0, two serial ports, one Audio-In, and dual display outputs (HDMI and VGA), are all located in the front panel for easy access and space savings.

SPECIFICATIONS

Part Number	IPC-220-00A1	PCE-2029-00A1
Expansion Slot
Mini-PCIE	1 x PCIe x 16, 1 x PCIe x 4	1 x miniPCIe/mSATA
Front I/O Interface
USB2.0	-	4 + 2(internal)
USB3.0	-	4
Audio Jack	-	1xLine-out; 1x Mic-in
Serial Port	-	2xRS-232/422/485; 2xRS-232
Environment
Operating Shock	With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration	-
Operating Vibration	1Grms (with HDD), 3Grms (with SSD)	-
Ethernet
Interface	-	10/100/1000 Mbps
Controller	-	LAN1: Intel I219V, LAN2 : Intel I210AT
Graphics
Graphic Interface	-	HDMI + VGA
Chipset Integrated	-	Intel HD Graphic 530/510, support DirectX12
Miscellaneous
Control	-	Power Switch
Physical Characteristics
Dimensions (W x H x D)	140 x 150 x 231 (mm)	-
Weight	3.0kg(6.61lbs)	-
Power
Power Input	-	19~24VDC
Power Type	-	ATX/AT
Storage
CFast	-	-
HDD	2 x 2.5" SSD/HDD Easy-Swap Bay	-
WatchDog Timer
Interval	-	Programmable 1 ~ 255 sec/min
Output	-	System Reset
Memory
Max. Capacity	-	32GB (16GB per DIMM)
Socket	-	2 x 260-pin SO-DIMM
Technology	-	DDR4 2133/2400 MHz (without ECC)
Processor System
CPU	-	Intel Core i3/i5/i7(LGA1151)
Chipset	-	Intel H110
Core Number	-	4 / 2 core
BIOS	-	AMI 128 Mbit SPI Flash
Frequency	-	Based on Intel CPU spec
L3 Cache	-	8 MB/6 MB/4 MB/3 MB
Cooling
Air Filter	Yes	-
