MOXA A-TRM Series
Terminating resistor
Properties
Description
Further Information
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- Available in N-type or RP-SMA options

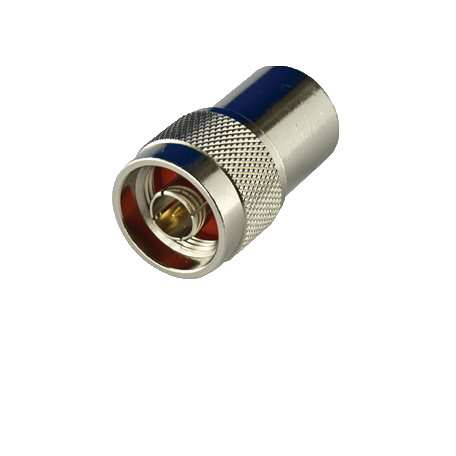

The A-TRM Series is a set of 50 ohms terminating resistors available with an N-type (male) or RP-SMA (male)
connector
connector
Specifications
Physical Characteristics
Warranty
Package Contents
Ordering Information
Physical Characteristics
| Frequency | A-TRM-50-NM: 0 ~ 6 GHz A-TRM-50-RM: 0 ~ 8 GHz |
| Connector Type | A-TRM-50-NM: N-type (Male) A-TRM-50-RM: RP-SMA (Male) |
| V.S.W.R. | 1,25 |
| Impedance | 50 Ohms |
| Return Loss | 28dB @ 3GHz |
Warranty
| Warranty Period | 1 year |
| Details | See www.moxa.com/warranty |
Package Contents
| Device | 1 x A-TRM Series Terminating Resistor |
Ordering Information
| Model Name | Impedance | Connector Type |
| A-TRM-50-NM | 50 Ohms | N-Type (Male) |
| A-TRM-50-RM | 50 Ohms | RP-SMA(Male) |
