Advantech ARK-1220F
Intel Atom E3940 QC SoC with isolated GbE, COM and DIO ports DIN-Rail Fanless Box PC
Properties
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- Intel Atom® E3940 Quad Core SoC turbo burst up to 1.8 GHz

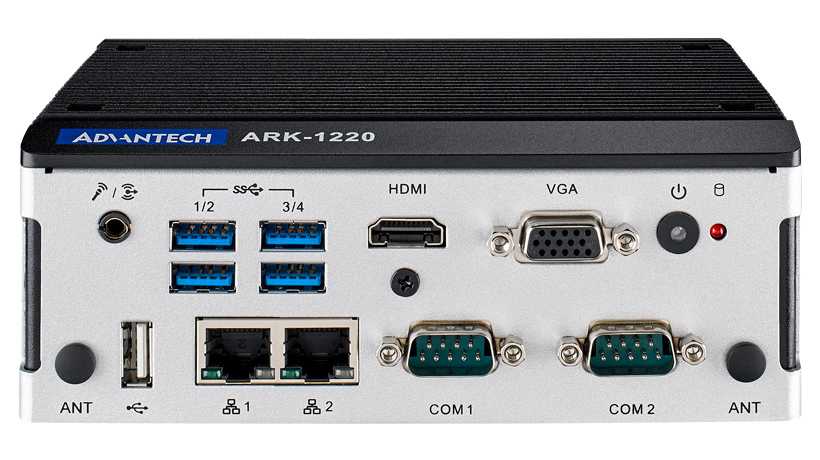

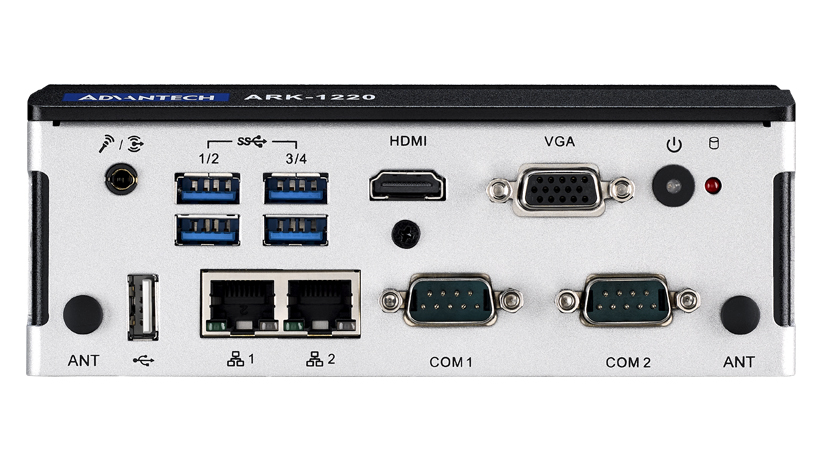

- DIN-Rail system with essential I/O ports on front-side bezel
- Isolated Intel GbE and COM with protection to 2.5K VDC

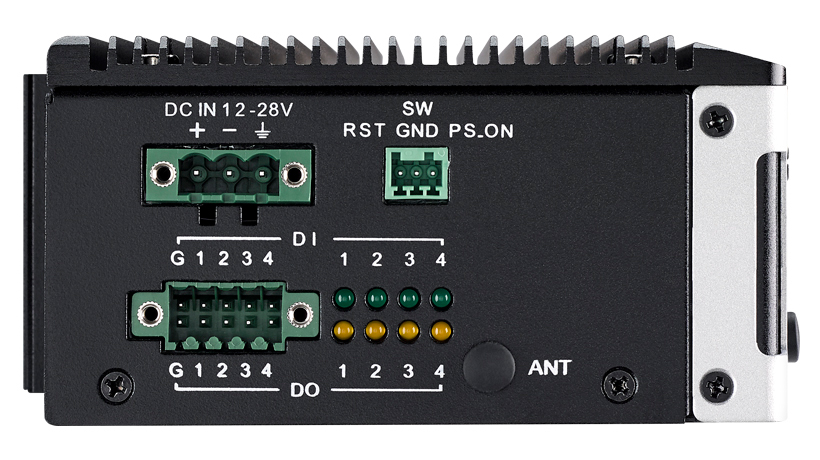

- Isolated 8 bit GPIO (4DI/4DO) with with protection to 2.5K VDC
- 4 x USB 3.0 and 1 x USB 2.0
- Dual independent displays with one 4K HDMI and one VGA
- 1 x full-size mPCIe with nano SIM holder and 1 x M.2 2230 for WIFI
- mSATA and 1 x 2.5" SATA storage device
- 12V ~ 28V wide range power input
ARK-1000 series features ultra-small and low power consumption designs that offer sufficient storage and PCIe expansion for space-limited applications
Intel Atom E3940 QC SoC with isolated GbE, COM and DIO ports DIN-Rail Fanless Box PC
Specifications
- Processor System
- CPU
Intel Atom E3940 Quad Core SoC
Frequency
1.6 GHz, turbo burst up to 1.8 GHz
Core Number
4
BIOS
AMI EFI 128 Mbit
Memory
- Technology
DDR3L 1866 Mhz
Max capacity
8GB
Socket
2 x 204-pin SO-DIMM, 2 x 4GB or 1 x 8GB memory
Graphics
- Chipset
Intel HD Graphics 500, CPU integrated
Graphic Engine
Gen9 Low Power; 18 Execution Units Media Codec
Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG
3D HW Acceleration: OpenGL 4.4, DirectX* 12, OpenCL* 2.0
HDMI
Up to 3840 x 2160 @ 30Hz
VGA
Up to 1920 x 1200 @ 60 Hz
Dual Display
HDMI + VGA
Ethernet
- LAN1
10/100/1000 Mbps Intel i210-IT GbE, support Wake On LAN
LAN2
10/100/1000 Mbps Intel i210-IT GbE, support Wake On LAN
Audio
- Interface
Realtek ALC888S, High Defination Audio, Mic-in, Line-out
I/O Interface
- Seriel Ports
1 x 2.5K VDC Isolated RS232/RS422/RS485
1 x 2.5K VDC Isolated RS422/RS485 (default RS485 for both ports)
USB Ports
4 x USD3.0, 1 x USB2.0
GPIO
8-bit Programmable DIO
Expansion
- Mini PCIe
1 x Full-size mPCIe with nano SIM holder
M.2
1 x M.2 2230 E key for WIFI module
Storage
- SSD/HDD
1 x 2.5" SATAIII Drive bay (compatible with 15mm height)
mSATA
1 x Full-size mSATA (*share with mPCIe slot)
Other
- WatchDog Timer
255 levels timer interval, setup by softwareTPMSLB9665XQ2.0 FW5.62
Software Support
- Microsoft Windows
Windows 10 Enterprice
Linux
Support by project
Power Requirement
- Power Type
ATX/AT
Power Input Voltage
12 ~ 28 VDC
Power Adaptor
AC to DC, 60W (Optional)
Power Consumption
- Typical
7.6W
Max.
19W
Mechanical
- Construction
Aluminum housing
Mounting
DIN-rail/Wall Mount
Dimensions (W x H x D)
60 x 158 x 114 mm (2.34" x 6.22" x 4.49")
Weight
1.5 kg (3.3lb)
Environment
- Operating Temperature
With extended temp. peripherals: -30 ~ 60 °C (-22 ~ 140 °F) with 0.7 m/s air flow
Storage Temperature
-40 ~ 85 °C (-40 ~ 185°F)
Relative Humidity
95% @ 40 °C (non-condensing)
Vibration during Operation
With SSD: 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
Shock during Operation
With SSD: 30 G, IEC-60068-2-27, half sine, 11 ms duration
EMC
Heavy industrial certificates, CE/FCC Class B
Safety
UL, CB, CCC and BSMI
