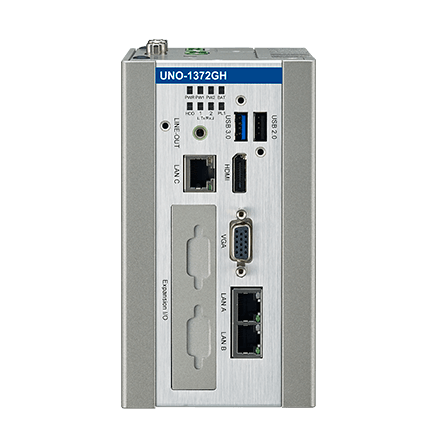

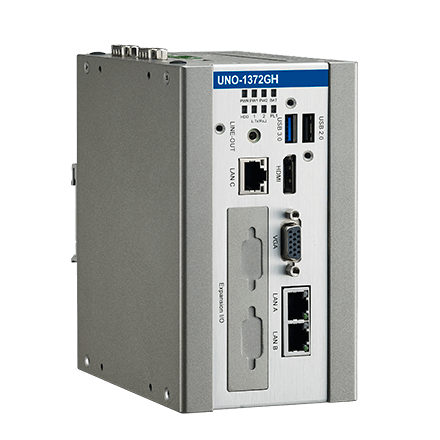

Advantech UNO-1372GH
Class I, Division 2 Certified Intel® Atom™ Quad-Core Control DIN-rail PC
Properties
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- UL listed for Hazardous Locations: Class I, Division 2
- Intel® Atom E3845 1.91GHz processor with 4GB DDR3L Memory
- 3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor, mSATA, 2 x mPCIe, 1 x SATA, 4 x DI, 4 x DO, 1 x Power Terminal
- Spark-free design with lockable I/O kit
- Dual Power Input for Avoiding Power Down Time
- Exchangeable RTC Battery with easy Access on the Top
- Digital I/O with Isolation Protection for Sensing and controlling
- Diverse system IO and Supports Fieldbus Protocol by iDoor Technology as a Protocol Gateway
- Supports MRAM by iDoor Technology
- LAN Redundancy (Teaming)
In hazardous locations, devices are under potential danger from flammable gases, combustible dust, or ignitable fibers, creating the potential for fire and explosions. The UNO-1372GH is designed to be safely operated in these locations and are UL listed for Hazardous Locations with Class I, Division 2, groups A, B, C, D T4A certification.
The UNO-1372GH is an Intel Atom DIN-rail PC which features an innovative iDOOR Technology for automation applications. It provides rich I/O include 3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor,8 x DIO, all of them can be locked with system by lockable kit to make sure spark-free in harsh environment.
Specifications
- General
- Certification
CE, FCC, UL, CCC, BSMI
Class I, Division 2, Groups A,B,C,D, Hazardous Location,
Temperature code: T4A, Ambient Temperature Range: -20°C - 60°C
Dimensions ( W x D x H )
85 x 139 x 152 mm (3.3" x 5.5" x 6.0")
Form Factor
Small Size
Enclosure
Aluminum Housing
Mounting
DIN-rail, Wallmount
Weight (Net)
1.6kg (3.5lbs)
Power Requirement
10~36VDC (Recommend 12/24 VDC)
Power Consumption
24W (Typical), 50W (Max)
OS Support
Microsoft® Windows 7/8, WES7, WIN10 Ent. LTSB, AdvLinux
System Hardware
- BIOS
AMI UEFI 128Mbit Flash BIOS
Watchdog Timer
Programmable 255 levels timer interval, from 1 to 255 sec
Processor
Intel Atom E3845 1.91GHz, 2MB L2 Cache
System Chip
Integrated Intel SoC Chipset
Memory
Built-in 4GB DDR3L 1333 MHz (Up to 8GB)
Graphics Engine
Intel® HD Graphics
Ethernet
LAN A, B: Intel® i210-IT GbE, 802.1Qav, 802.1AS, 802.3az
LAN C: Realtek RTL8111E GbE
LED Indicators
LEDs for Power, battery, LAN (Active, Status), COM (Tx/ Rx), HDD and Programmable LED
1 x mSATA
Storage
One drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)
Expansion
2 x Full-size mPCIe slot
I/O Interfaces
- Serial Ports
1 x RS-232, DB9, 50bps~115.2kbps
1 x RS-422/485, DB9, auto flow control, 50bps~115.2kbps
LAN Ports
3 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
USB Ports
3 x USB Ports (2 x USB2.0, 1 x USB 3.0)
Isolated DIO
4-ch digital input, 4-ch digital output (2500 VDC)
Displays
1 x VGA, supports 1920 x 1080 @ 60Hz 24bpp
1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp
Audio
Line-Out
Power Connector
1 x 4 Pins, Terminal Block to support dual power input
Environment
- Operating Temperature
- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry SSD)
Storage Temperature
- 40 ~ 85°C ( -40 ~ 185°F)
Relative Humidity
95% RH @ 40°C, non-condensing
Shock Protection
Operating, IEC 60068-2-27, 50G, half sine, 11ms
Vibration Protection
Operating, IEC 60068-2-64, 5Grms, random, 5 ~ 500Hz, 1 hr/axis
Ingress Protection
IP40
