Advantech UNO-1251G

The UNO-1251G is an Industrial IoT DIN-rail gateway. This gateway features dual LAN ports & expansible Wi-Fi/3G connectivity. There are also some user friendly design elements such as: a programmable OLED display to indicate the system status; and a front accessible microSD card/micro SIM slot. With WebAccess/HMI support, it is compatible with 450 types of PLC, controllers & I/O devices. User can easily access UNO-1251G through mobile devices by VNC. It is the ideal solution for automation control as a cloud enabled HMI platform.

Specifications

General


Certification
CE, FCC, CCC, BSMI, UL

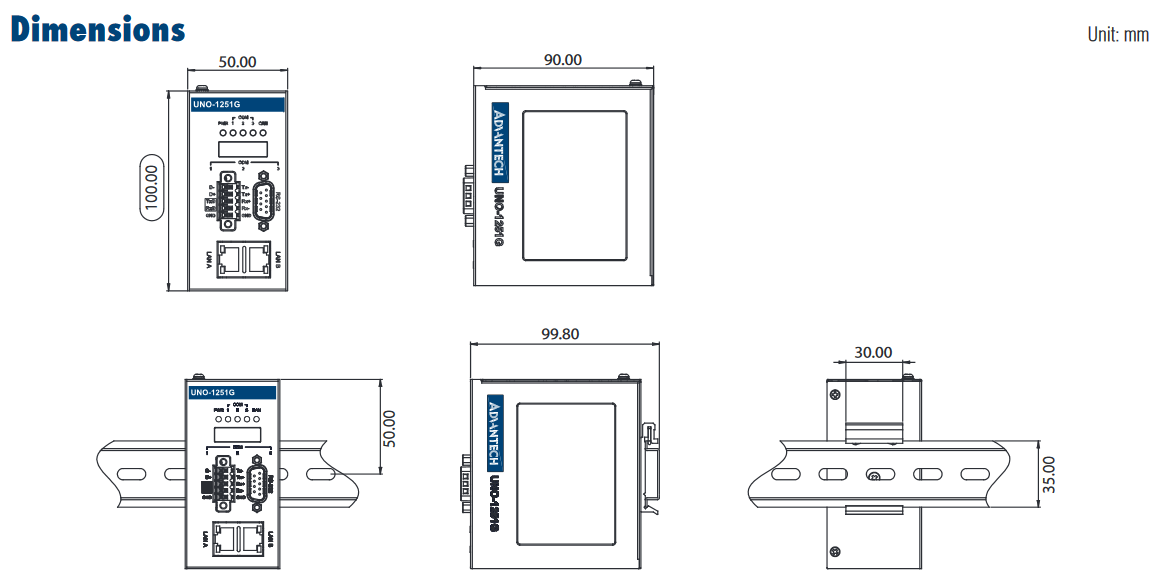

Dimensions ( W x D x H )
50 x 90 x 100 mm (1.97" x 3.54" x 3.94")

Form Factor
Micro Size

Enclosure
Aluminum Housing

Mounting
DIN-rail

Weight (Net)
0.4 kg (0.88 lbs)

Power Requirements
10~36 V DC

Power Consumption
5.3W(Typical), 20W(Maximum)

OS Support
Windows Embedded Compact7 (WEC7)/Embedded Linux (kernel v2.6.37)



System Hardware


Processor
RISC 32 bit, 600 MHz (ARM® Cortex™-A8)

Backup Memory
FRAM 128KB

Memory
Onboard DDR2 256MB 166MHz (Optional 512MB)

LED Indicators
LEDs for Power(PWR), COM1~3(Tx/Rx) and CAN(Tx/Rx)

Storage
Bootloader and image:
1 x microSD 1G (Built-in) (SDHC)
External storage:
1 x microSD card slot (SDHC)

Expansion
1 x Full-size mPCIe slot (USB2.0 signal only)

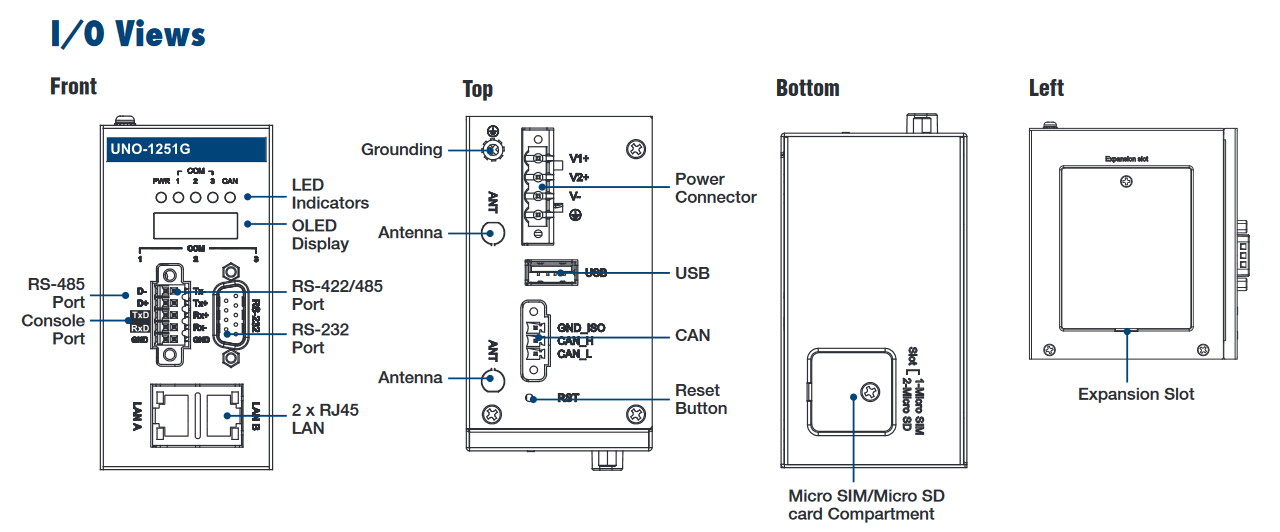

I/O Interfaces


Isolated Serial Ports
1 x RS485, terminal block, auto direction control, 300~115.2k bps
1 x RS422/485, terminal block, auto direction control (RS-485), 300~115.2k bps
1 x RS232, DB9, auto flow control 300~115.2k bps

CAN
CANbus, version 2.0A/B compliant (terminal block, 10k~500k bps)

LAN Ports
2 x RJ45, 10/100 Mbps

USB Ports
1 x USB 2.0

Power Connector
1 x 4 Pin, Terminal Block , supports dual power input

Grounding Protection
Chassis Grounding

SIM
1 x Micro SIM card slot



Environment


Operating Temperature
- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH

Storage Temperature
- 40 ~ 85°C ( -40 ~ 185°F)

Relative Humidity
10 ~ 95% RH @ 40°C, non-condensing

Shock Protection
Operating, IEC 60068-2-27, 50G, half sine, 11ms

Vibration Protection
Operating, IEC 60068-2-64, 3 Grms, random, 5 ~ 500Hz, 1 hr/axis

Application Software /SDK

• Modbus TCP Client/Server API
• Modbus RTU Master/Slave API
• CAN SDK
• Advantech CANopen protocol library
• FRAM API
• Watchdog SDK
• OLED programmable display API
• Supports WebAccess/HMI

Software Features

• FTP/Telent service
• Remote display technology
• VPN
• OpenGL
• Remote Access: DigAnywhere & VNC

ORDERING INFORMATION
UNO-1251G-A0AE	ARM Coretex A8, built-in 256MB Memory, 1G SLC MicroSD, WEC7
UNO-1251G-WA0AE	UNO-1251G-A0AE with WebAccess/HMI 1500 tags
Optional Accessories Adapters & Power cords:
PWR-247-CE	ADP A/D 100-240V 60W
1702002600	Power Cable US Plug 1.8 M
1702002605	Power Cable EU Plug 1.8 M
1702031801	Power Cable UK Plug 1.8 M
1700000596	Power Cable China/Australia Plug 1.8 M
Micro SD card:
96FMMSDI-2G-ET-AT	ATP 2G MICRO SD CARD I-GRD SLC(G)
3G module & antenna:
EWM-C109F601E	Wide-Temp 3.75G HSPA, Mini PCIe Card
1750006264	Coaxial cable for antenna
1750005865	Antenna L=10.9 cm 50 Ohm
Wi-Fi module & antenna:
EWM-W150H02E	802.11bgn / RT5390 1T1R
9656EWMG00E	Half-size miniPCIe to Full-size miniPCIe bracket set
1750006043	150 mm Coaxial cable for antenna
1750000318	Antenna
