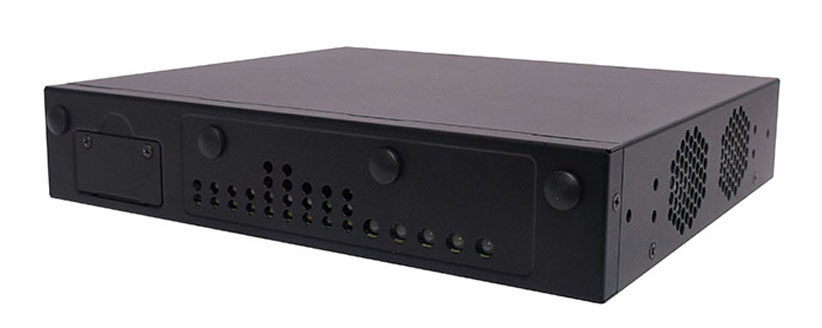

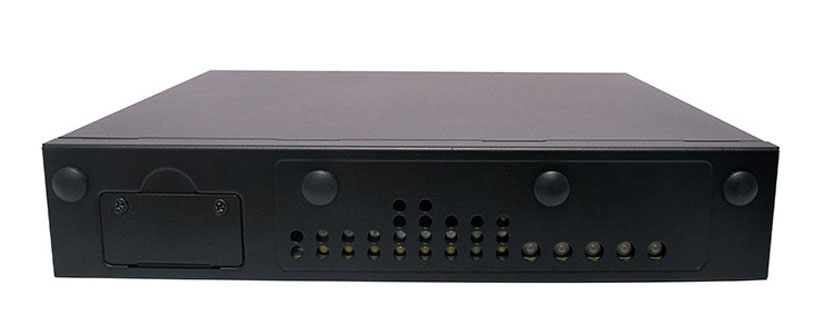

Lanner NCA-1516
5G/Wifi6 Ready Desktop Appliance with Intel Atom® C3000 CPU (Codenamed Denverton)
Properties
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- Intel® Atom C3000 CPU and Intel® QuickAssist Technology
- DDR4 1866/2133/2400 MHz, Max. 64GB
- 6x GbE RJ45 (w/ 2x PoE+ Option), 2x 10GbE SFP+
- 1x RJ45 Console, 2x USB 3.0, 1x Mini-PCIe, 3x M.2
- mPCIe Expansion Slot for Edge AI Accelerator (Intel Movidius)
- Support for mmWave & Sub-6GHz 5G
- Support for Dual Adapters (Optional)
The NCA-1516, a desktop network appliance powered by Intel® Atom® C3000, is capable of both mmWave 5G, Sub-6GHz 5G and its WIfi6 is both 2.4G and 5G compatible. Hardware performance is supercharged with Intel?s QuickAssist Technology and Intel® AES-NI. The NCA-1516 is equipped with ample network communication features and configurations for vCPE/uCPE and Edge security.
The NCA-1516 offers a mPCIe expansion slot that supports Intel Movidius Myriad X Vision Processing Unit (VPU). The Intel Movidius VPU creates a reliable hardware platform for developers to deploy a robust Edge AI solution for intelligent surveillance, traffic management, access control, retail and beyond.
Specifications
| Platform | |
| Form Factor | Desktop |
| Processor Options | Intel® Atom® C3000 |
| CPU Socket | 1 x Onboard |
| Chipset | SoC |
| Security Acceleration | Intel® QuickAssist Technology |
| BIOS | AMI SPI Flash BIOS |
| System Memory | |
| Technology | DDR4 1866/2133/2400MHz ECC/Non-ECC (By SKU) |
| Max. Capacity | 64GB |
| Socket | 2 x 260-pin SODIMM |
| Networking | |
| Ethernet Ports | 4 x GbE RJ45 Intel® i350 2 x GbE RJ45 Marvell 88E1543 (Optional PoE+ Support) 2 x SFP+ SoC Integrated MAC |
| Bypass | N/A |
| NIC Module Slot | N/A |
| LOM | |
| IO Interface | N/A |
| OPMA Slot | N/A |

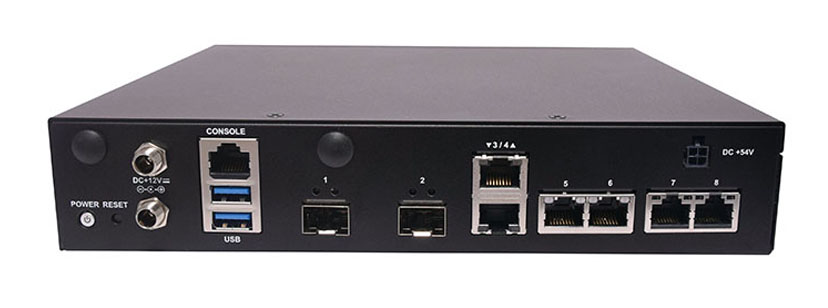

| I/O Interface | |
| Reset Button | 1 |
| LED | Power/Status/Storage |
| Power Button | 1 x ATX Power Switch |
| Console | 1 x RJ45 |
| USB | 2 x USB 3.0 |
| LCD Module | N/A |
| Display | N/A |
| Power Input | 2 x DC Jack (Optional 2nd DC Jack) |
| Storage | |
| HDD/SSD Support | N/A |
| Onboard Slots | 1 x Onboard EMMC 8G (By Request) |
| Expansion | |
| PCIe | N/A |
| mini-PCIe | 1 x Mini-PCIe (PCIe/USB2.0) |
| M.2 | 1x M.2 3052/3580 B Key (PCIe/USB 3.0) 1x M.2 3042 B Key (USB 3.0) 1x M.2 2242 B Key (SATA) |
| SIM Card Slot | 2 x Nano SIM |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | Yes |
| Cooling | |
| Processor | Passive CPU Heatsink |
| System | 2 x Cooling Fans with Smart Fan or Fanless (By Request) |
| Environmental Parameters | |
| Temperature | 0~40ºC Operating -20~70ºC Non-Operating |
| Humidity (RH) | 5~90% Operating 5~95% Non-Operating |
| System Dimensions | |
| (WxDxH) | 231 x 200x 44 mm |
| Weight | 1.2 kg |
| Package Dimensions | |
| (WxDxH) | 358 x 135 x 290 mm |
| Weight | 2.75 kg |
| Power | |
| Type / Watts | 60W 5A/12V PSU |
| Input | AC 100~240V @50~60 Hz |
| Certification | |
| Approvals and Compliance | RoHS, CE/FCC Class B, UL |
Order Information
| NCA-1516A | C3958, 2x DDR4 ECC SODIMM, 6x GbE RJ45 , 2x GbE SFP+ w/ LED, 60W Adapter |
| NCA-1516B | C3858, 2x DDR4 ECC SODIMM, 6x GbE RJ45 , 2x GbE SFP+ w/ LED, 60W Adapter |
| NCA-1516C | C3758, 2x DDR4 ECC SODIMM, 6x GbE RJ45 , 2x GbE SFP+ w/ LED, 60W Adapter |
| NCA-1516D | C3558, 2x DDR4 ECC SODIMM, 6x GbE RJ45 , 2x GbE SFP+ w/ LED, 60W Adapter |
| NCA-1516E | C3758R, 2x DDR4 ECC SODIMM, 6x 1GbE RJ45 , 2x 10G SFP+ w/ LED, 60W Adapter |
| NCA-1516F | C3558R, 2x DDR4 ECC SODIMM, 6x 1GbE RJ45 , 2x 10G SFP+ w/ LED, 60W Adapter |
