MOXA ioThinx 4500 Series (45ML) Modules

The 45ML series includes serial interface modules that can be used with the ioThinx 4500 Series head/CPU module, which has the communication bus installed on the left side. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.


Easy Tool-Free Installation and Removal

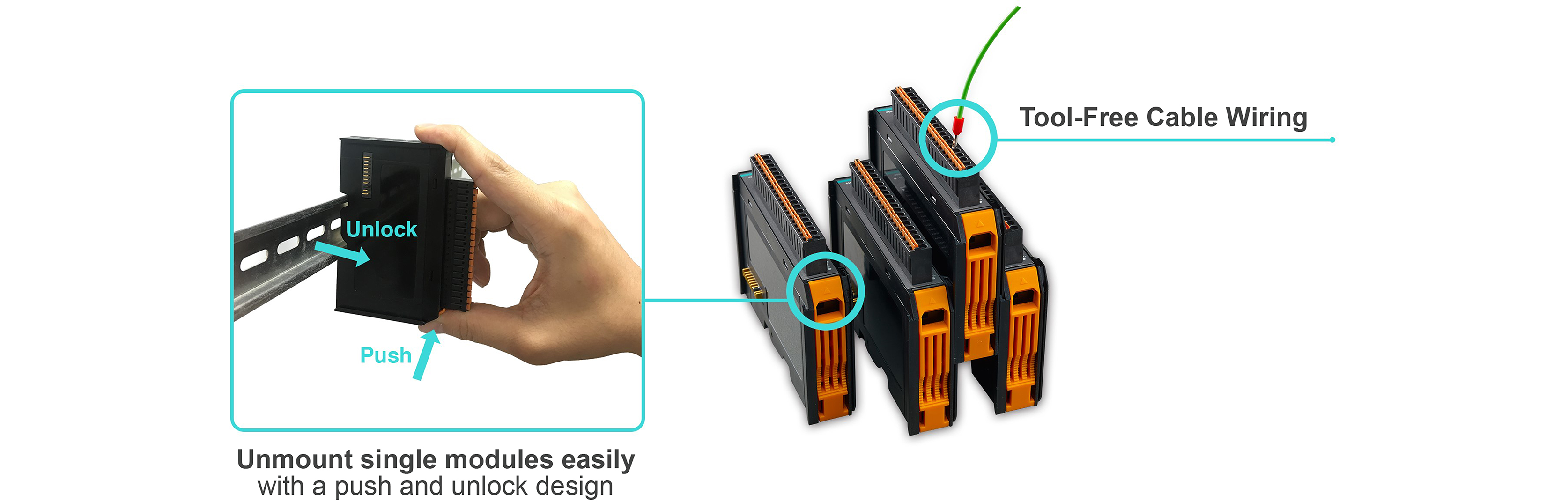

The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.

SPECIFICATIONS

Input/Output Interface


Isolation
3k VDC or 2k Vrms



Serial Interface


Connector
Spring-type Euroblock terminal

No. of Ports
45ML-5401 Series: 4

Serial Standards
45ML-5401 Series: RS-232, RS-422, RS-485-2w

Baudrate
45ML-5401 Series: 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps

Data Bits
45ML-5401 Series: 7, 8

Stop Bits
45ML-5401 Series: 1, 2

Parity
45ML-5401 Series: Even, None, Odd

Flow Control
45ML-5401 Series: RTS/CTS (RS-232 only), XON/XOFF

Pull High/Low Resistor for RS-485
45ML-5401 Series: 10 kilo-ohm

RS-485 Data Direction Control
45ML-5401 Series: ADDC® (automatic data direction control)



Serial Signals


RS-232
TxD, RxD, RTS, CTS, GND

RS-422
Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w
Data+, Data-, GND



Power Consumption


System Power
45ML-5401 Series: 74.1 mA @ 12 VDC
45ML-5401 Series: 37.05 mA @ 24 VDC

Field Power
45ML-5401 Series: 140.4 mA @ 12 VDC
45ML-5401 Series: 59.8 mA @ 24 VDC



Phisical Characteristics


Housing
Plastic

Dimensions
26.4 x 99 x 65.5 mm (1.04 x 3.9 x 2.58 in)

Weight
45ML-5401 Series: 115 g (0.254 lb)

Installation
DIN-rail mounting

Wiring
Serial cable, 18 to 24 AWG

Strip Length
Serial cable, 9 to 10 mm



Environmental Characteristics


Operating Temperature
Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

Altitude
Up to 2000 m



Standards and Certifications


EMC
EN 55032/35

EMI
CISPR 32, FCC Part 15B Class A

EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF

Shock
IEC 60068-2-27

Vibration
IEC 60068-2-6



Declaration


Green Product
RoHS, CRoHS, WEEE



MTBF


Time
45ML-5401 Series: 916,671 hrs

Standards
Telcordia SR332

ORDERING INFORMATION

Available Modules
45ML-5401	Operating Temp. -20 to 60°C
45ML-5401-T	Operating Temp. -40 to 75°C
