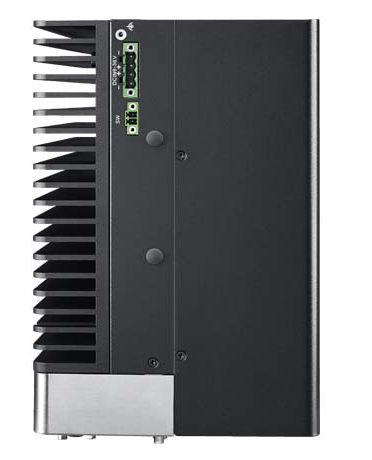

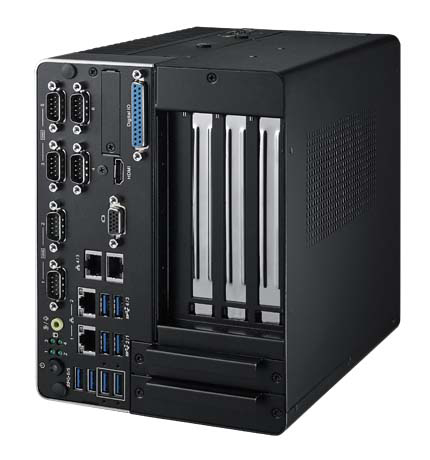

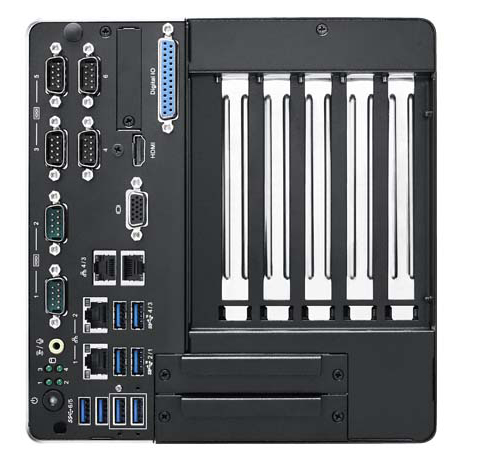

Advantech ARK-3532C

Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor Triple independent display: VGA + HDMI + Optional Display DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB 9-36VDC wide range power input Up to 4sets 2.5" hard drive bays, support Intel® SW RAID Support 4GbE, 8USB, 6COM,

Product Specifications

Processor


CPU
Intel Xeon W-1290TE/ Intel Core i9 10900E/ Intel Core i7 10700E/
Intel Core i5 10500E/ Intel Core i3 10100E/ Intel Celeron G5900E

L3 Cache
20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB

Core Number
10/ 10/ 8/ 6/ 4/ 2

Chipset
W480E



Memory


Technology
DDR4 2933MHz SO-SIMM

Max. Capacity
64 GB

Socket
2 x 260 pin SO-DIMM



Graphics


Chipset
Intel UHD Graphics 630

Graphic Engine
Direct x 12, OpenGL 4.4,
HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8,
HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9



Display


VGA
1920 x 1200 at 60Hz

HDMI
1

Triple Display
Yes



Ethernet


LAN
10/100/1000 Mbps



Other


Watchdog Timer
255 levels timer interval, setup by software



Expansion


Mini PCIe
1 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder) #1

M.2
1 x M.2 2230 E key for WIFI module



Storage


HDD
HDD 2 x 2.5" SATAIII 15mm height HDD bay support Intel SW RAID
(Up to 4 x 2.5" SATAIII HDD bays by optional AMK-A0035)

mSATA
mSATA 1 x mSATA socket (Share with Mini PCIe)



Software Development Kit


Operating System
Windows 10 (64bit)

Linux
by Project support



Power Requirement


Power Type
AT/ATX

Voltage
9~36V DC in



Power Consumption


Typical
30W

Max.
64.8W



Regulation


EMC
CE/FCC Class B, CCC, BSMI

Safety
CB, UL, CCC, BSM



Environment


Operational Temperature
With extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow,
with HDD: 0 ~ 40° C with 0.7m/s air flow

Temperature (Storage)
- 40 ~ 85° C (-40 ~185° F)

Relative Humidity
95% @ 40° C (non-condensing)

Vibration during Operation
With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock Protection
With CompactFlash disk: 30Grms, IEC 60068-2-27 , half sine, 11 ms duration

Humidity
Operating: 40° C @ 95% relative humidity, non-condensing
