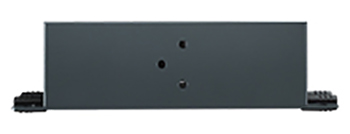

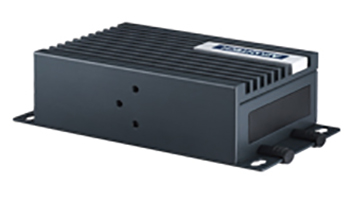

Advantech UNO-220

UNO-220 is designed for customers using Raspberry Pi (RPi) single-board computers (SBCs) in unique IoT applications. Featuring a system-image OS equipped micro SD card, an RPi 4 HAT I/O board, additional RS-232/485 GPIOs, and an RTC battery backup for precise time keeping; the UNO-220 industrial-grade chassis transforms RPi 4 into an intelligent gateway. UNO-220 features pre-finished mounting holes and attachment screws enabling plug-and-play assembly with separately purchased RPi 4 SBCs. This system provides developers with a complete RPi-ready industrial-grade gateway kit ideal for rapid prototyping and mass deployment.

Product Specifications

General


Certifications
CE, FCC

Enclosure
Aluminum Housing

Form factor
Micro Size

Mounting
Stand Mount, DIN-Rail (Optional)

Weight
0.5 kg

Power Consumption
15 W (Typical)

Dimension(W x D x H)
100x70x32mm (3.9x2.7x1.2 in)

OS Support
AdvRaspbian



Hardware


Watchdog Timer
Programmable 255 levels timer interval, from 1 to 255 sec

Hardware Security
N/A (TPM2.0 Optional)

Storage
1 x Micro SD slot (dummy)
(internal 8 GB SD card interchangeable with Raspberry Pi 4)



Environment


Operating Temperature
0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow

Relative Humidity
10 ~ 95% RH @ 40°C, non-condensing

Storage Temperature
20 ~ 60 °C (-4 ~ 140 °F

Ingress Protection
IP40



I/O Interface


GPIO*
GPI 0-3: VIH: 2 ~ 5V
VIL: 0 ~ 0.8V,
GPO 0-3: 0 ~ 5V

Serial Ports
1 x RS232/485 (5-pin terminal block),
automatic direction control,
300 ~ 115.2k bps

ORDERING INFORMATION

Available Modules
UNO-220-P4N1AE	Industrial Raspberry Pi gateway kit with 1 x RS-232/485, 4 x GPIO, 8 GB SD card, and Raspbian OS
UNO-220-P4N2AE	Industrial Raspberry Pi 4 Gateway Kit with POE function, TPM, 1 x RS-232/485, 8 x GPIO, 8 GB SD Card, and AdvRaspbian OS
UNO220P4N22101-T	UNO-220-P4N2AE without SD card, Quick LT
Optional Accessories
UNO-200-DMKAE	Optional DIN-rail kit
Adapter and power cord
XUNO-FSP015-DPAN3	15W 5V USB-Type C connector
1702002600	Power cable, US plug, 1.8 m (industrial grade)
1702002605	Power cable, EU plug, 1.8 m (industrial grade)
1702031801	Power cable, UK plug, 1.8 m (industrial grade)
1700000596	Power cable, China/Australia plug, 1.8 m (industrial grade)
