MOXA ThingsPro Edge Series

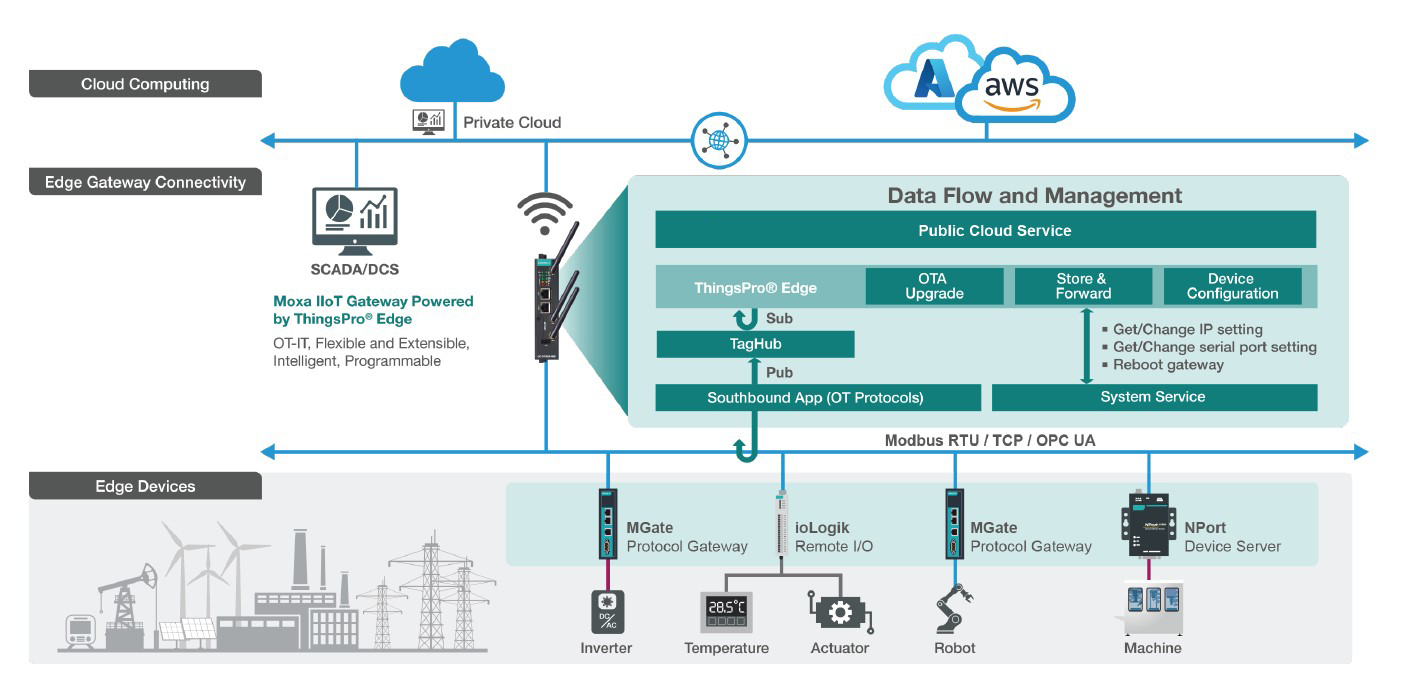

ThingsPro Edge is an IIoT gateway software that helps transform your edge computer into a secure and reliable IIoT gateway to suit your business needs. System administrators on the operation technology (OT) side can use its intuitive web GUI to ensure continuous operation while IT developers can use RESTful APIs to configure, monitor, and effectively control IIoT gateway devices. ThingsPro Edge also provides:

• Modbus polling engine with easy-to-use web-based UI for data acquisition from end devices deployed in industrial field sites
• Simplified transfer of Modbus device data to a MQTT broker in cloud applications
• Supports configurable data transmission for telemetry data upload to cloud. Leverages message groups, custom payload, and JSON-based configurable scheme, to meet the demands of cloud applications.
• A network manager that handles field device connectivity to a WAN

Integration With Public and Private Cloud Platforms

• Supports Azure IoT Device, AWS IoT Core, Sparkplug, and MQTT client
• Supports remote device management via cloud portals such as Azure Direct Method, enabling device reboots and configuration updates
• Supports MQTT input and output topics for invoking RESTful APIs

Streamlined Sensor-to-cloud Data Transportation

• Modbus master to acquire data from edge devices and publish tagged data to cloud connectivity applications
• Caching of device-to-cloud messages in a specified location and sending the messages to the cloud based on predefined policies
• Customized message formats to publish acquired data to cloud platforms based on the needs of your applications and systems

Device Management

• Dashboard overview to monitor tag data, hardware resource consumption, and device configurations such as GPS settings and cellular strength signal
• Supports keep-alive check and default route priority to ensure continuous network connectivity
• Supports the Wi-Fi access point mode to remotely connect to devices for troubleshooting
• Supports Network Address Translation (NAT) for connected devices to access the Internet via the IIoT gateway
• Supports import and export of system configuration to create backups and golden samples

Secure Design and Robust OTA Upgrade

• Secure Boot function and built-in Trusted Platform Module (TPM) to enhance the security of your IIoT gateways
• Over-the-air (OTA) upgrades to keep software and device firmware up-to-date
• Resume capability that ensures the integrity of the upgrade packs and a roll-back mechanism to recover the gateway from failed installations
• Firewall to manage inbound traffic based on predefined rules

Batch Provisioning

ThingsPro Proxy (TPP) for batch configuring and provisioning of IIoT gateways. TPP is a Windows-based utility, which can be download from the Moxa website and install in a Windows 10 environment.

• Supports ThingsPro Edge installation
• Effortlessly provisioning of devices including software upgrade, cloud enrollment, and device configuration

Information

Series	Model	Revision	Firmware Version	Supported TPE Version
UC-8200 Series	UC-8210-T-LX	1.0.0/1.0.1	1.3	2.2.1-3369
	UC-8210-T-LX-S	1.0.0/1.0.1	1.3	2.2.1-3369
	UC-8220-T-LX	1.0.0/1.0.1	1.3	2.2.1-3369
	UC-8220-T-LX-US-S	1.0.0/1.0.1	1.3	2.2.1-3369
	UC-8220-T-LX-EU-S	1.0.0/1.0.1	1.3	2.2.1-3369
	UC-8220-T-LX-AP-S	1.0.0/1.0.1	1.3	2.2.1-3369
UC-8100A-ME-T	UC-8112A-ME-T-LX	1.0.2/1.0.3	1.5	2.2.1-3369
	UC-8112A-ME-T-LX-AP	1.0.2/1.0.3	1.5	2.2.1-3369
	UC-8112A-ME-T-LX-US	1.0.2/1.0.3	1.5	2.2.1-3369
	UC-8112A-ME-T-LX-EU	1.0.2/1.0.3	1.5	2.2.1-3369
UC-3100	UC-3101-T-US-LX	3.0.0	1.4	2.2.0-3366
	UC-3101-T-EU-LX	3.0.0	1.4	2.2.0-3366
	UC-3101-T-AP-LX	3.0.0	1.4	2.2.0-3366
	UC-3111-T-US-LX	3.0.0	1.4	2.2.0-3366
	UC-3111-T-EU-LX	3.0.0	1.4	2.2.0-3366
	UC-3111-T-AP-LX	3.0.0	1.4	2.2.0-3366
	UC-3121-T-US-LX	3.0.0	1.4	2.2.0-3366
	UC-3121-T-EU-LX	3.0.0	1.4	2.2.0-3366
	UC-3121-T-AP-LX	3.0.0	1.4	2.2.0-3366
UC-2100	UC-2112-LX	1.1.0	1.9	2.2.0-3366
	UC-2112-T-LX	1.1.0	1.9	2.2.0-3366
UC-8100	UC-8112-LX	3.1.1	3.4	2.2.0-3366
