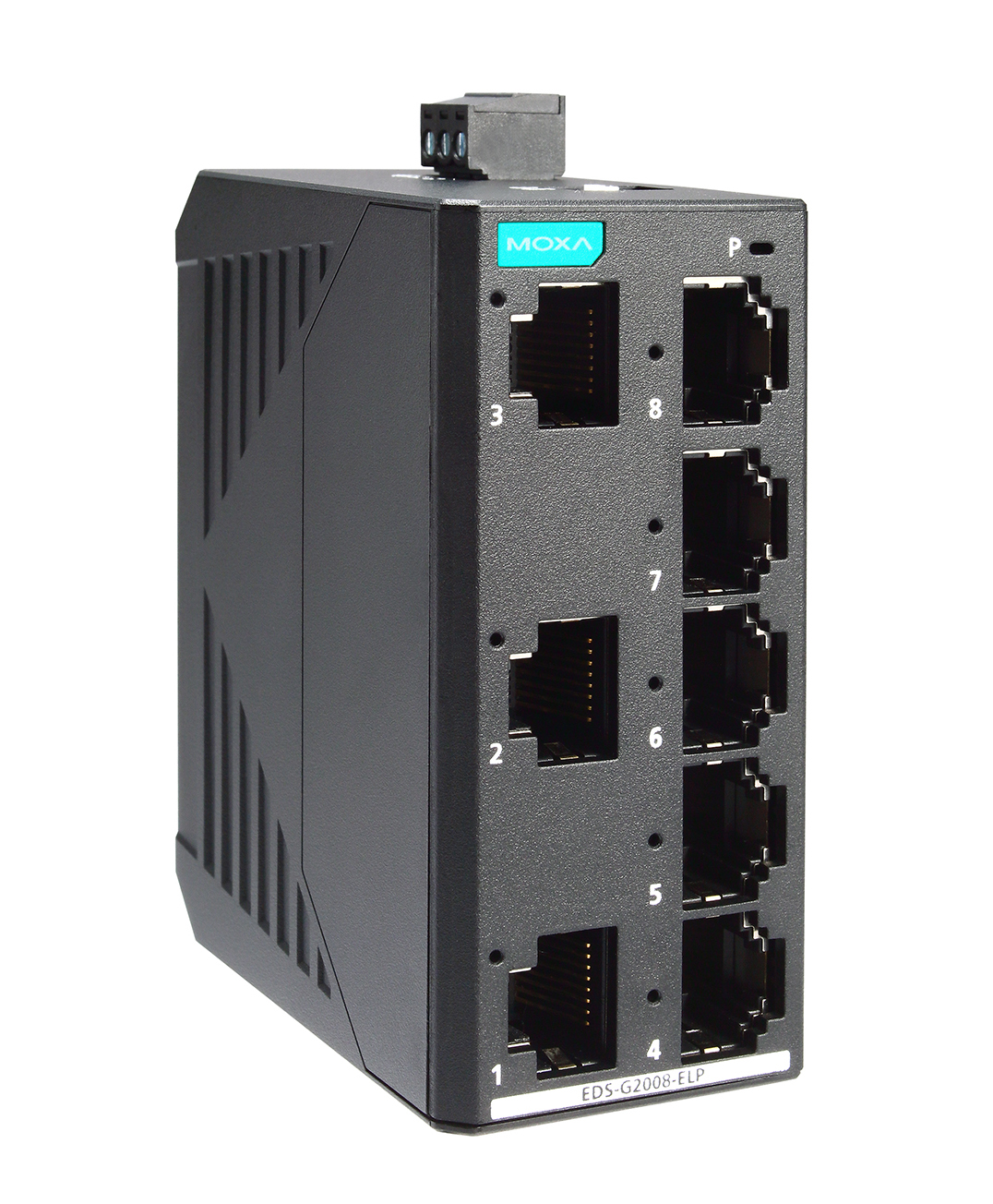

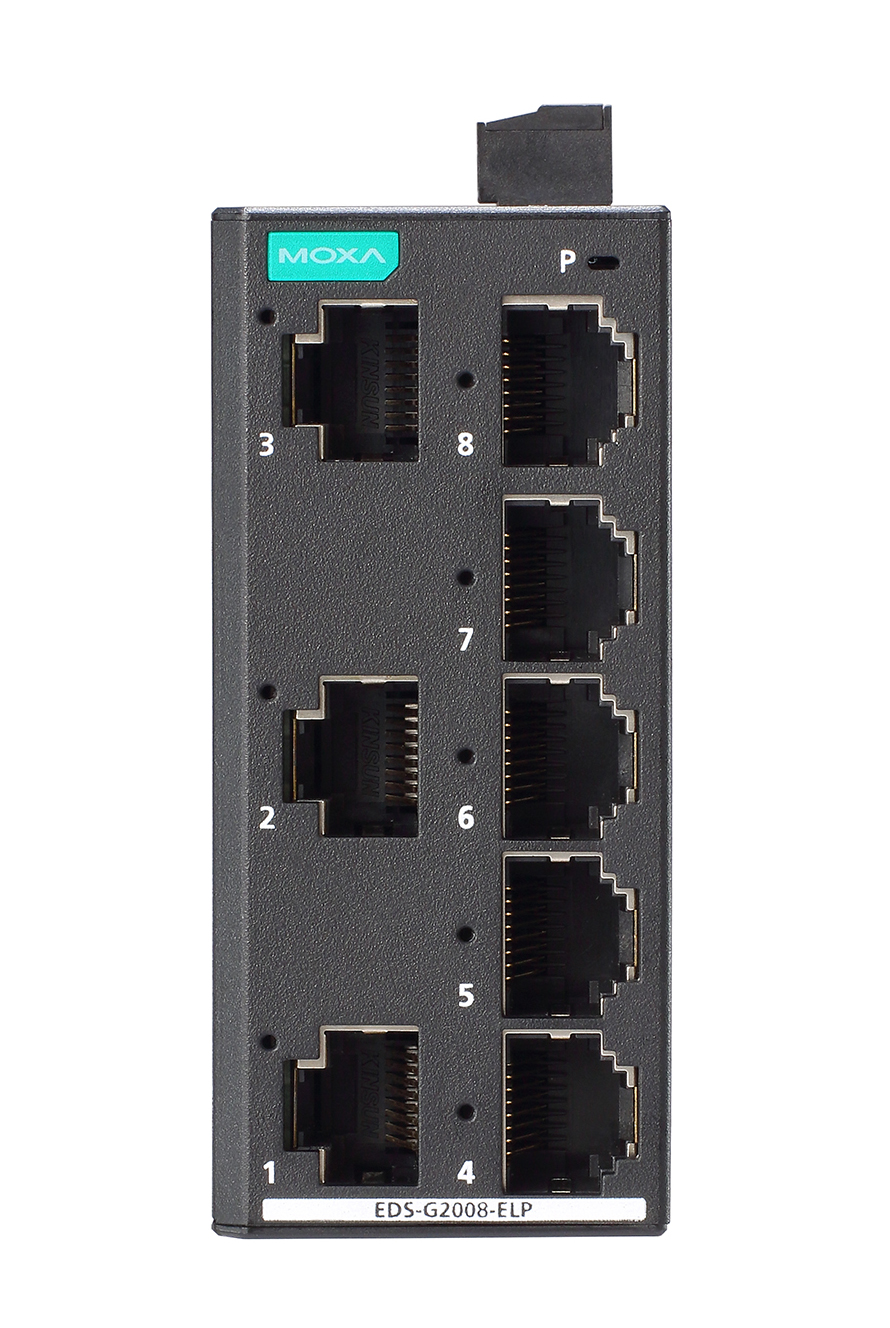

MOXA EDS-G2008-ELP

The EDS-G2008-ELP Series of industrial Ethernet switches have eight Gigabit Ethernet ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-G2008-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.

The EDS-G2008-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-G2008-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-G2008-ELP Series has a standard operating temperature range of -10 to 60°C.

Specifications

Ethernet Interface


10/100/1000BaseT(X) Ports (RJ45 connector)
8
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed

Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service



Switch Properties


Processing Type
Store and Forward

MAC Table Size
4 K

Packet Buffer Size
1.5 Mbits



DIP Switch Configuration


Ethernet Interface
Quality of Service (QoS), Broadcast Storm Protection (BSP)



Power Parameters


Connection
1 removable 3-contact terminal block(s)

Input Current
0.33 A (max.)

Input Voltage
12/24/48 VDC

Operating Voltage
9.6 to 60 VDC

Overload Current Protection
Supported

Reverse Polarity Protection
Supported



Physical Characteristics


Dimensions
36 x 81 x 65 mm (1.42 x 3.19 x 2.56 in)

Installation
DIN-rail mounting
Wall mounting (with optional kit)

Housing
Plastic

Weight
140 g (0.31 lb)



Environmental Limits


Ambient Relative Humidity
5 to 95% (non-condensing)

Operating Temperature
-10 to 60°C (14 to 140°F)

Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)



Standards and Certifications


Safety
UL 61010-2-201
EN 62368-1 (LVD)

EMC
EN 55032/35
EN 61000-6-2/-6-4

EMI
CISPR 32, FCC Part 15B Class A

EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Shock
IEC 60068-2-27

Vibration
IEC 60068-2-6

Freefall
IEC 60068-2-32



MTBF


Time
3,404,784 hrs

Standards
Telcordia (Bellcore), GB

Package Contents

Device
1 x EDS-G2008-ELP Series switch

Documentation
1 x quick installation guide
1 x warranty card

Ordering Information

Model Name	10/100/1000BaseT(X) Ports      (RJ45 Connector)	Housing	Operating Temp.
EDS-G2008-ELP	8	Plastic	-10 to 60°C

Accessories (sold separately)

Power Supplies
DR-120-24	120W/2.5A DIN-rail 24 VDC power supply with universal 88 to 132 VAC or 176 to 264 VAC input by switch,     or 248 to 370 VDC input, -10 to 60°C operating temperature
DR-4524	45W/2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC or 120 to 370 VDC input, -10 to 50° C operating temperature
DR-75-24	75W/3.2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC or 120 to 370 VDC input, -10 to 60°C operating temperature
MDR-40-24	DIN-rail 24 VDC power supply with 40W/1.7A, 85 to 264 VAC, or 120 to 370 VDC input, -20 to 70°C operating temperature
MDR-60-24	DIN-rail 24 VDC power supply with 60W/2.5A, 85 to 264 VAC, or 120 to 370 VDC input, -20 to 70°C operating temperature
Wall-Mounting Kits
WK-18	Wall-mounting kit, 1 plate (18 x 120 x 8.5 mm)
Rack-Mounting Kits
RK-4U	19-inch rack-mounting kit
