Advantech IMC-762 Series
Slide-In Modular Media Converter
10/100Mbps to Fiber Series
Properties
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- SNMP manageable
- OAM IEEE802.3ag/ah (operation, administration, and management)
- Supports per-port, bi-directional bandwidth control
- Supports powerful LinkLoss, FiberAlert and Loopback troubleshooting functions
- All management traffic remains isolated from the remote LAN
- The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
The IMC-760 series of intelligent media converters connect a host/remote Ethernet network over a fiber optic or CAT5 copper connection. It combines media conversion with an advanced-feature set for network management and troubleshooting, including OAM (operation, administration, and management). Administrators can observe the end-points over the fiber segment between them as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a cost-effective solution.
The SNMP software, iView2, allows for remote configuration and alerts administrators to any potential problems on the long-haul fiber run, providing vital information on link conditions and reporting data on traffic statistics. With iView2, the central location can manage all host/remote pairs installed in the IMC-71x series with the single IP address of the chassis.
Specifications
| Technical | |
| IEEE 802.3 | |
| IEEE 802.3u | |
| Bi-directional bandwidth control | |
| 802.3ag/ah OAM (Operation, Administration & Management) | |
| Y.1731 | |
| Read/Write IEEE 802.1Q VLAN-tags | |
| AutoCross for MDI/MDIX | |
| Includes Hot-swappable Architecture | |
| Management | |
| SNMP V1 and V2c compatible | |
| GUI-based iVew2 software for remote management and upgrades | |
| IEEE 802.3x flow control | |
| Supports DHCP and TFTP clients | |
| Supports loopback test modes (MAC swap) | |
| Supports LinkLoss, FiberAlert and Link Fault Pass Through | |
| Environment | |
| Operating Temperature | 0 to +50 °C (+32 to +122 °F) |
| Storage Temperature | -25 to +70 °C (-13 to +158 °F) |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| 0 ~ 10,000 ft. altitude | |
| MTBF | 1.6 million hours |
| Mechanical | |

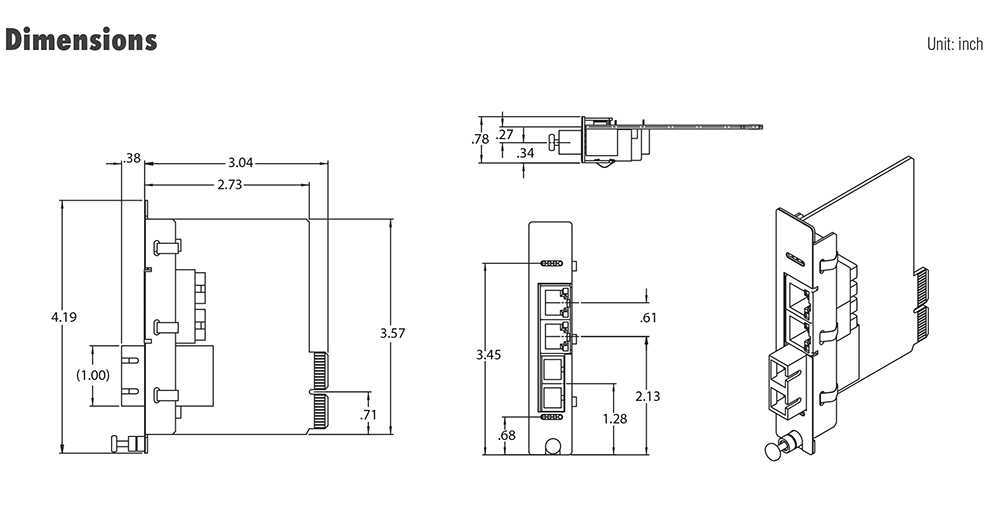

| Dimensions (H x W x D) | 10.74 x 2.0 x 7.05 cm (4.19 x 0.78 x 2.75 in) |
| Weight | 0.11 kg (0.30 lbs) |
| Certifications | |
| FCC Class A, CE, CSA, CB | |
| UL/cUL | |
Ordering Information
| Part Number | Also Known As | Ethernet Speed | Optical Mode | Wavelength | Distance | Optical Connector |
|---|---|---|---|---|---|---|
| IMC-762-SFP | 856-14500 | 10/100 Mbps | Various | - | Various | SFP |
| IMC-762-SST | 856-14043 | 10/100 Mbps | Single-Strand | 1310T/1550R | 20 km | SC |
| IMC-762-SSR | 856-14044 | 10/100 Mbps | Single-Strand | 1550T/1310R | 20 km | SC |
| IMC-762-SSET | 856-14045 | 10/100 Mbps | Single-Strand | 1310T/1550R | 40 km | SC |
| IMC-762-SSER | 856-14046 | 10/100 Mbps | Single-Strand | 1550T/1310R | 40 km | SC |
