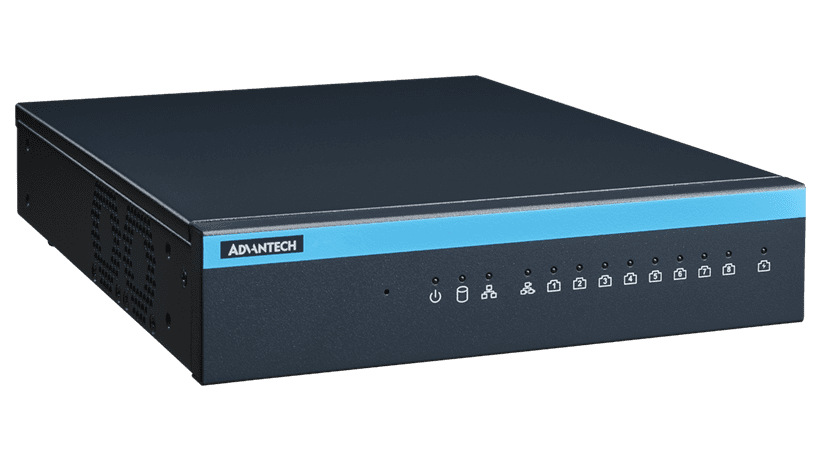

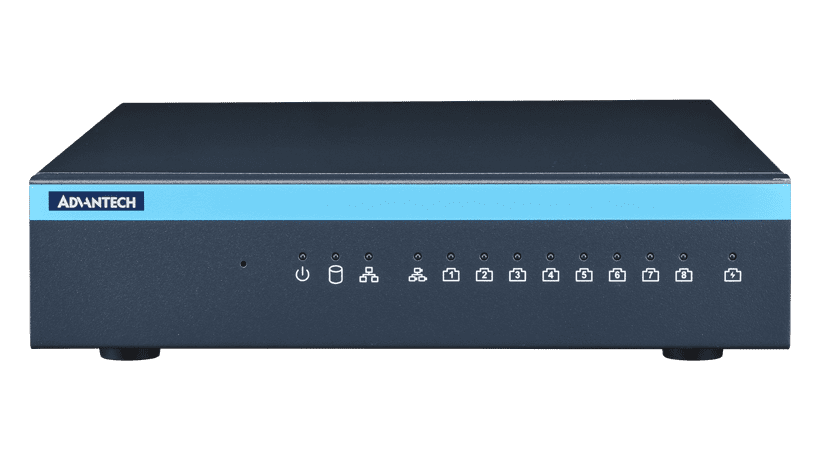

Advantech MIC-717-OX Series

The MIC-717-OX is compact and compatible with any connected video stream, supporting 8x PoE, 2 x 1 GbE RJ-45, and 1 x 3.5" SATA HDD for efficient video streaming and storage. Additionally, based on NVIDIA accelerated computing, Advantech's iService bridges the MIC-717-OX and Metropolis stack, allowing the management of all AI inference results at the edge. This solution is ideal for the retail and safety and security industries, particularly for AI edge deployments with advanced analytics.

Recognizing the need for large-scale device deployment in these industries, Advantech has collaborated with Allxon to provide remote management services to overcome maintenance challenges such as OTA updates, AI model updates, and board-support-package (BSP) management.

Advantech MIC-717-OX is a comprehensive AI NVR solution for the retail and safety and security market, offering:

1. High-performance hardware with 8-channel video input and storage.
2. Integration with Metropolis Microservices for Jetson for an easy AI development pipeline.
3. Support for iService cloud solution with a customized GUI for managing AI results.
4. Remote management for large-scale deployments.

Specifications

	MIC-717-OX	MIC-717-OX
Processor System
CPU Model	Jetson Orin NX 16GB	Jetson Orin NX 8GB
AI Performance	100 TOPS	70 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU	8-core Arm ® Cortex®-A78AE v8.2 64-bit CPU    2 MB L2 + 4 MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU    1.5 MB L2 + 4 MB L3
Memory Capacity	16 GB 128-bit LPDDR5 102.4 GB/s	8 GB 128-bit LPDDR5 102.4 GB/s

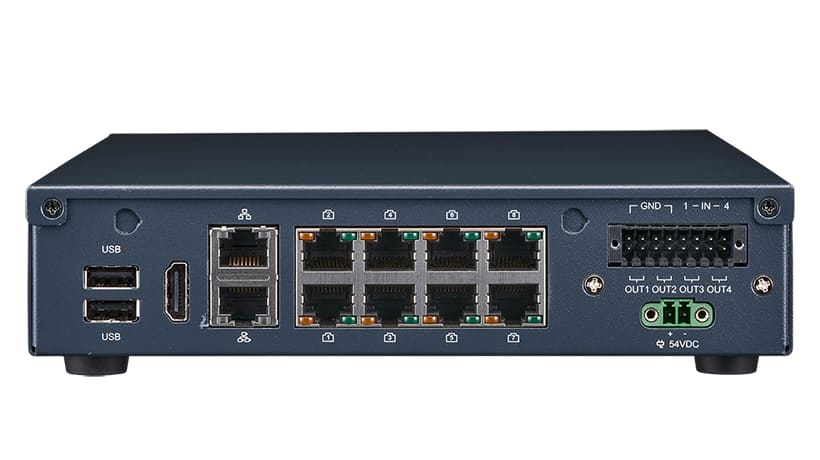

I/O
Ethernet	2 x 10/100/1000 Mbps
Display	HDMI (max. resolution 3840 x 2160 @ 60 Hz)
USB	1 x USB 3.0 ((Internally used for recovery mode) 2 x USB 2.0
Digital I/O	4-ch DI, 4-ch DO
PoE + Ports	8 x RJ-45 (10/100 Mbps + PoE / total power: 123.2 W)
Expansion
M.2	1 x M.2 3042 (B-Key, signal: USB)
SIM	1 x Nano SIM slot
TPM	1 x TPM 2.0
Storage
M.2	1 x M.2 2280 (M-Key, NVMe, signal: PCIe x4)
HDD/SSD	1 x 3.5" HDD or 1 x 2.5" SSD
Power
Power Input	54 V DC, 4.26 A
Power Supply	Adapter (external)
Environment
Operating Temperature*	0 to 50°C (32 to 122°F)
Operating Humidity	95% relative humidity @ 40°C (104°F), non-condensing
Vibration	3 Grms @ 5 to 500 Hz, random, 1 hr/axis
Shock	10G / 11ms
Mechanical
Dimensions (W x D x H)	254.5 x 195.0 x 44.45 mm (10.0 x 7.67 x 1.75 in)
Weight	1.14 kg (2.5 lb)
Installation	Desktop / wallmount
BSP
Jetpack	Above 5.1
Certifications
	UL, cUL, CE, UKCA, RoHS, Reach (SVHC)
Safety
	UL/CSA/IEC/EN 62368-1

Ordering Information

Part Number	NVIDIA Module	NVIDIA Module Memory	NVIDIA Module Emmc	NVMe**
MIC-717-OX3A1	Orin NX	8 GB	N/A	128 GB
MIC-717-OX4A1	Orin NX	16 GB	N/A	128 GB

** The system BSP will be pre-installed in a 128GB NVMe M.2 SSD.



Packing List

Packing List	Descripton	Q'ty
1960102775T002	Wall Mount Kit	2
1652007963-01	DIO Terminal Block	1
1930004905	HDD Screw	4
1700032684-01	M cable SATA 22P/SATA 7P+1x4P-2.5 20cm 90/180 6G	1
1700023588-01	M Cable USB-A 4P(M)/USB-A 4P(M) 120cm	1
1930005626	Screw M4*5L S/S D=8.0 H=1.6 + ST Ni	4
1652002209	Power terminal block	1
