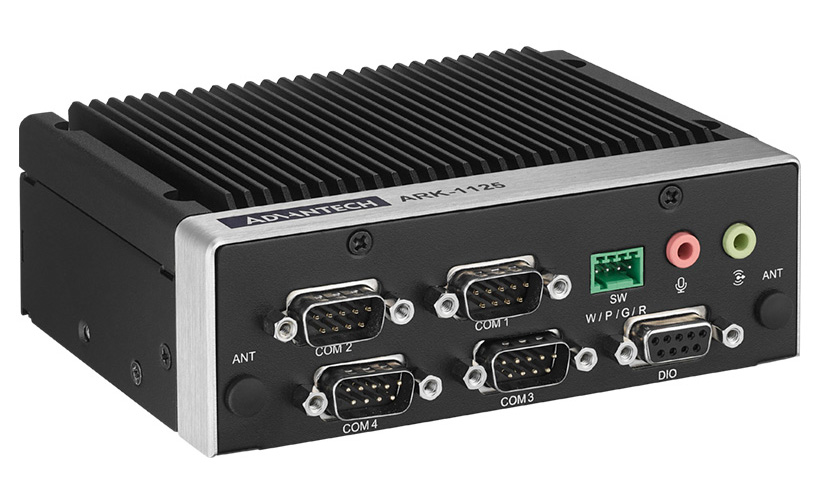

Advantech ARK-1125C Series
Intel® Atom® Processor x7211E DC SoC with Four Serial Ports, HDMI, GbE, GPIO, Remote Switch, USB x4
Properties
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- Intel® Atom® Processor x7211E Dual Core SoC
- DDR5-4800 SO-DIMM memory support up 16G
- Four Serial Ports
- M.2 E Key, B Key and M Key for storage and wireless module installation
- TPM for system security by option
- -30 ~ 60 °C extended operating temperature
- 12V lockable DC jack power input
- Advantech DeviceOn support
Intel® Atom® Processor x7211E DC SoC with Four Serial Ports, HDMI, GbE, GPIO, Remote Switch, USB x4
Specifications
ARK-1125C-S0A1/ARK-1125C-S0A1U
- Processor System
- CPU
Intel® Atom® Processor x7211E
Frequency
1.0GHz, Max Turbo Frequency up to 3.2GHz
Core Number
2
BIOS
AMI EFI 256 Mbit
Memory
- Technology
DDR5 4800 MHz
Max capacity
16G
Socket
1x 262-pin SO-DIMM
Graphic
- Chipset
Intel ® UHD Graphics
HDMI
4096 x 2160@60Hz
Ethernet
- LAN1
Intel i226-LM, 2.5GbE, support Wake On LAN
Audio Interface
Realtek ALC888S, High Definition Audio, Mic-in and Line-out
I/O Interface
- Serial Ports
4x RS232/422/485 (default RS-232) with auto flow control
USB Ports
2x USB3.2, 2x USB2.0
GPIO
8-bit Programmable DIO
Expansion
- M.2
3x, 1x M.2 2230 E key (PCIe x1),
1x M.2 2280 B key with nano SIM holder (PCIe x1),
1x M.2 2242 M key (SATA, PCIe x1)
TPM
SLB9672XU2.0 FW15.22
Storage
- NVMe
3x, 1x M.2 2242 M key (PCIe x1, SATA shared with NVMe),
1x M.2 2230 E key (PCIe x1) and 1x M.2 2280 B key (PCIe x1)
Software Support
- Microsoft
Windows Windows 10 Enterprise
Linux
Ubuntu
Power Requirement
- Power Type
AT/ATX
Power Input Voltage
12VDC
Minimum Power Input
12V, 5A
Power Adapter
AC to DC, DC12 V/5 A, 60 W with lockable DC Jack
Power Consumption
- Typical (OS idle mode)
10.05 W
Max (Full loading)
19.72 W
Mechanical
- Construction
Aluminum housing
Mounting
DIN-Rail/Wall/VESA Mounting Kits
Dimensions (W x H x D)
133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71") without wall mount kit
Weight
0.7 kgs
Environment
- Operating Temperature
With extended temperature peripherals: -30 ~ 60 °C (-22 ~ 140 °F) with 0.7m/s air flow
Storage Temperature
-40 ~ 85 °C (-40 ~ 185°F)
Relative Humidity
95% @ 40 °C (non-condensing)
Vibration during Operation
3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis (with Wall Mount)
Shock during Operation
30 G, IEC-60068-2-27, half sine, 11 ms duration (with Wall Mount)
Certification
- EMC
CE/FCC Class B, CCC, BSMI, UKCA
Safety
CB, UL, CCC, BSMI, UKCA
