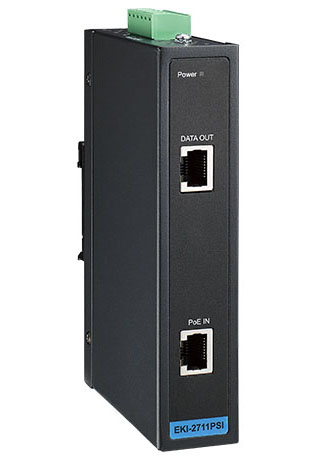

Advantech EKI-2711PSI

1GE PoE Splitter, IEEE 802.3af/at, -40~75?

Advantech EKI-2711PSI
  • PropertiesProperties
  • DescriptionDescription
  • Further InformationFurther Information
  • PDFPDF
  • Supports 10/100/1000 Base-TX for PoE in and Data out
  • IEEE 802.3af/at compliant split power/data from PoE equipment
  • Power isolation and short circuit protection for power output
  • Auto disconnection for over power voltage input
  • Provides EFT protection 3,000V DC for power line
  • Supports 6,000 V DC Ethernet ESD protection
  • Supports output power up to 25W at 24 V DC
  • Provides slim size and DIN-rail & wall-mount plates with IP30 metal mechanism
  • Supports operating temperatures from -40 to 75°C

PoE splitter is powered by PoE and can split PoE input into individual power output and data output. This device can easily connect legacy devices like IP cameras or WiFi Access Points to a PoE network architecture and also work as a power supply to power up devices where power is beyond coverage as alternative power source to save cabling deployment cost. EKI-2711PSI plays the role of powered device (PD) and splits power from PoE to Ethernet devices. In this case, both power and data can be transmitted up to 328 feet (100m) with one single Ethernet CAT5 cable from power source equipment (PSE) with the power up to 25 watts at 24VDC .

ProdGrafik


Specifications

    Communications

      Standard
      IEEE 802.3, 802.3u, 802.3af/at, 802.3ab,

      LAN
      10/100/1000 Base-TX

      Transmission Distance
      Up to 100 m

      Transmission Speed
      up to 1000 Mbps



    Interface

      Connectors
      PoE IN: RJ-45 DATA OUT: RJ-45
      6-pin removable screw terminal (power output)

      LED Indicators
      System Power (green)



    Power

      Power Consumption
      max. 30 W

      Power Input
      44~57 V DC

      Power Output
      max. 25 W @ 24 V DC



    Mechanism

      Dimensions (W x H x D)
      30 x 140 x 95 mm (1.18" x 5.51" x 3.74")

      Enclosure
      IP30, Metal shell with solid mounting kits

      Mounting
      DIN-rail, Wall



    Protection

      Overload current
      Present



    Environment

      Operating Temperature
      -40 ~ 75°C (-40 ~ 167°F)

      Storage Temperature
      -40 ~ 85°C (-40 ~ 185°F)

      Operating Humidity
      5 ~ 95% (non-condensing)

      Storage Humidity
      5 ~ 95% (non-condensing)



    Certifications

      EMI
      CE/FCC

      EMS
      EN 61000-4-2
      EN 61000-4-3
      EN 61000-4-4
      EN 61000-4-5
      EN 61000-4-6
      EN 61000-4-8

      Shock I
      EC 60068-2-27

      Freefall
      IEC 60068-2-32

      Vibration
      IEC 60068-2-6

      Patent
      http://www.advantech.com/legal/patent
