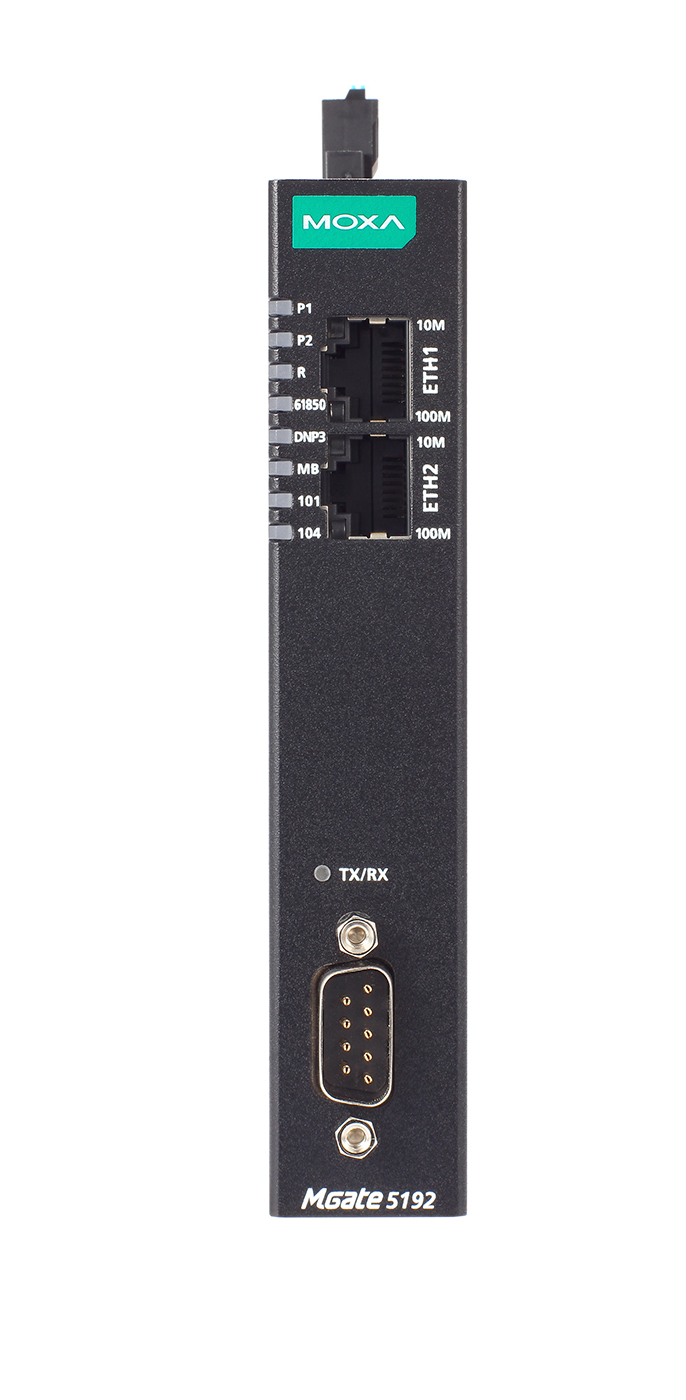

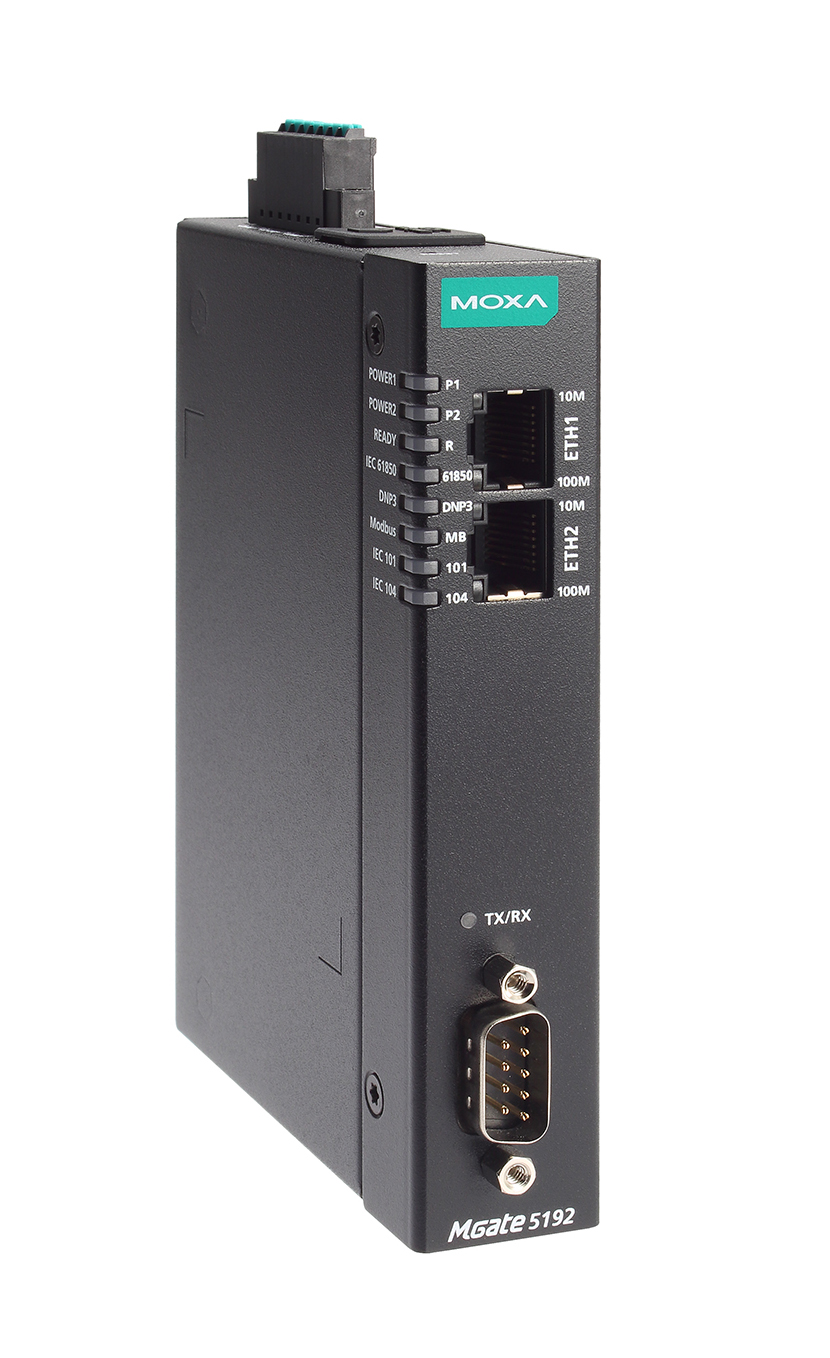

MOXA MGate 5192

The MGate 5192 is an industrial protocol gateway for converting IEC 61850 MMS to Modbus RTU/ASCII/TCP, DNP3 serial/TCP/UDP, IEC 60870-5- 101, or IEC 60870-5-104 communications. To integrate existing IEC 61850 devices, such as IEDs or relays, into a Modbus, DNP3, IEC 101, or IEC 104 network, use the MGate 5192 as an IEC 61850 MMS client to collect and exchange data with Modbus RTU/ASCII/TCP, DNP3 serial/TCP/UDP, IEC 60870-5-101, or IEC 60870-5-104 SCADA/devices. All models are protected by a rugged and compact metal housing, are DIN-rail mountable, and offer built-in serial isolation. The rugged design is suitable for industrial applications such as power substation and renewable energy-related applications.

Easy Configuration

The MGate 5192 gateways are provided with a web console to make configuration easy without having to install an extra utility. In addition, HTTPS encryption of communication ensures higher network security. In most data-acquisition applications, configuration of devices with Modbus commands can be time-consuming and increase costs. The MGate 5192 gateways provide offline configuration via a CSV file to help complete the Modbus settings quickly. The MGate gateways provide software-configurable pull high/low and termination resistor settings for RS-485 2-wire to reduce efforts by eliminating the need to open the chassis.

Easy Troubleshooting

The MGate 5192 gateways provide a variety of maintenance functions to reduce troubleshooting time and cost, including LED indicators, protocol diagnostics, traffic monitor, and tag view. These tools help you capture and check data to easily identify the root cause of issues, especially during the installation stage. The MGate gateways also come with status monitoring and fault protection functions. The status monitoring function notifies a SCADA system when a IEC 61850 device gets disconnected or does not respond, in which case the process SCADA gets the status of each end device and then issues alarms to notify operators. The fault protection function keeps the latest data without sending output data to the IEC 61850 devices. When a SCADA gets disconnected, the end devices keep the last operation and do not go offline.

Specifications

10/100BaseT(X) Ports (RJ45 connector)
2
Auto MDI/MDI-X connection

Magnetic Isolation Protection
1.5 kV (built-in)

Industrial Protocols
IEC 61850 MMS Client
Modbus TCP Server
IEC 60870-5-104 Server
DNP3 TCP/UDP Outstation

Configuration Options
Web Console (HTTPS)
Device Search Utility (DSU)

Management
ARP
DHCP Client
DNS
HTTP
HTTPS
SMTP
SNMP Trap
SNMPv1/v2c/v3
TCP/IP
UDP

MIB
RFC1213, RFC1317

Time Management
NTP Client

Authentication
Local database

Encryption
HTTPS
AES-128
AES-256
SHA-256

Security Protocols
SNMPv3
SNMPv2c Trap
HTTPS (TLS 1.3)

No. of Ports
1

Connector
DB9 male

Serial Standards
RS-232/422/485

Baudrate
300 bps to 921.6 kbps

Data Bits
7, 8

Parity
None
Even
Odd
Space
Mark

Stop Bits
1, 2

Flow Control
RTS Toggle (RS-232 only)
RTS/CTS

RS-485 Data Direction Control
Automatic Data Direction Control (ADDC)

Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
software configurable

Terminator for RS-485
120 ohms
software configurable

Isolation
2 kV (built-in)

RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422
Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w
Data+, Data-, GND

RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND

Industrial Protocols
Modbus RTU/ASCII Server
IEC 60870-5-101 Server
DNP3 Serial Outstation

Mode
MMS Client

Max. No. of Server Connections
32

Max. No. of Data Objects
5000 points

Mode
Server

Functions Supported
1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Client Connections
16

Max. No. of Data Tags
5000 tags

Mode
Server

Functions Supported
1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Client Connections
1

Max. No. of Data Tags
5000 tags

Mode
Outstation

Objects Supported
Binary inputs
Analog inputs
Counters
Frozen counters
Binary outputs
Analog outputs

Max. No. of Client Connections
1

Protocol Security Secure Authentication
v5

Max. No. of Objects
5000 points

Mode
Outstation

Objects Supported
Binary inputs
Analog inputs
Counters
Frozen counters
Binary outputs
Analog outputs

Max. No. of Client Connections
1

Max. No. of Objects
5000 points

Mode
Server (balanced/unbalanced)

Objects Supported
Single point
Double point
Step position
Bit string of 32 bit
Measured value (normalized)
Measured value (scaled)
Measured value (floating)
Integrated totals

Max. No. of Client Connections
1

Max. No. of Information Objects
5000 points

Mode
Server

Objects Supported
Single point
Double point
Step position
Bit string of 32 bit
Measured value (normalized)
Measured value (scaled)
Measured value (floating)
Integrated totals

Max. No. of Client Connections
32

Max. No. of Information Objects
5000 points

microSD Slot
Up to 32 GB (SD 2.0 compatible)

Input Voltage
12 to 48 VDC

Input Current
455 mA (max)

Power Connector
Spring-type Euroblock terminal

Contact Current Rating
Resistive load: 2 A @ 30 VDC

Housing
Metal

IP Rating
IP30

Dimensions
25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)

Weight
294 g (0.65 lb)

Operating Temperature
-40 to 75°C (-40 to 167°F)

Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

Safety
EN 61010-2-201

UL
61010-2-201

EMC
EN 61000-6-2/-6-4

EMI
FCC Part 15B Class A

EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V/m
IEC 61000-4-8 PFMF: 100 A/m

Shock
IEC 60068-2-27

Vibration
IEC 60068-2-6
IEC 60068-2-64

Power Substation
IEEE 1613
IEC 61850-3

International Approval
UKCA
KC

Time
1,240,821 hrs

Standards
Telcordia SR332

Device 1 x MGate 5192 Series gateway
Documentation 1 x quick installation guide
1 x warranty card
