Icron Raven 3301-ECO
Product is End of Life : 2025-07-11
1-Port USB 3 5Gbps, 100m CAT 5e Extender System
Replacement product:We will find a suitable replacement product for your requirements - please contact our sales department.
Properties
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- Supports all USB 3, 2, and 1.1 devices simultaneously up to 5Gbps
- Extends USB 3 up to 100m over CAT 5e or better cabling
- Power the LEX (Local Extender) at the hos
- The REX (remote extender) can power a single USB device up to 15W (5V 3A)
- Supports All USB Transaction types (Control, Bulk, Interrupt, ISO)
- No USB Hub tiers consumed (hubless)
- Transparent USB Extension
- True plug and play, no software drivers required
- Works with all major operating systems: Windows®, macOS?, Linux® and ChromeOS
The Icron Raven 3301-ECO is a low power and simple system for extending USB 3. Featuring a single USB-C port, support for CAT 5e or better cabling, and no built- in USB hubs, it?s ideal for extending remote USB 3 devices such as conference cameras, touch controllers, all-in-one devices and more.
The Raven 3301-ECO supports all USB transaction types including ISO, all previous USB specifications like USB 2, and can extend up to 100m point-to-point with DC power applied at the remote end.
Specifications
| Mechanical Data | ||
|---|---|---|
| Specification | LEX (Local Extender) | REX (Remote Extender) |

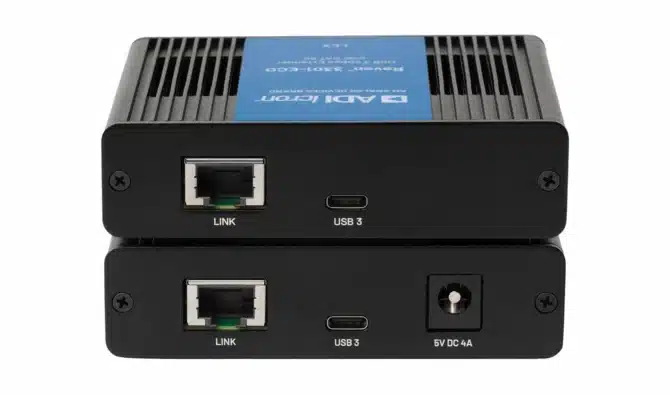

| USB Connector | 1x USB-C Receptacle | |
| Link Connector | 1x RJ45 Ethernet Link | |
| Power Input | N/A | 5V DC 4A Barrel Jack |
| Dimensions (WxDxH) | 100mm x76.0mm x 25.4mm (3.9'x3.0'x 1.0') | |
| Weight | 210g (0.46lbs.) | |
| Enclosure Material | Black Anodized Aluminum | |
| Range | ||
| Point-to-Point | 100m CAT 5e UTP Cable or better | |
| Compliance | ||
| Certifications | FCC (Class A), CE, RCM, UKCA, IEC/UL/cUL, ICES-003 Issue 7 | |
| USB Support | ||
| USB Bandwidth | 5Gbps | |
| USB Transactions | All (Control, Interrupt, Bulk, Isochronous) | |
| Device Compatibility | All USB Device types and classes | |
| Host Compatibility | OHCI, UHCI, EHCI, xHCI | |
| Available Current at REX | Supplies 3A (5V, 15W) | |
| Maximum Devices | Up to 31 (downstream) | |
| Environmental | ||
| Temperature Range | 0°C to 40°C (32°F to 104°F) Operating -20°C to 70°C (-4°F to 158°F) Storage |
|
| Relative Humidity | 20-80% Operating, 10-90% Storage, non-condensing | |
Ordering Information
| Part # | Name | Description |
|---|---|---|
| 00-00481 | Icron USB 3 Raven 3301-ECO -NA | 1-Port USB 3 100m CAT 5e Extender System, Black, 100-240V Power Adapter - NA |
| 00-00482 | Icron USB 3 Raven 3301-ECO -EU | 1-Port USB 3 100m CAT 5e Extender System, Black, 100-240V Power Adapter - EU |
| 00-00483 | Icron USB 3 Raven 3301-ECO -UK | 1-Port USB 3 100m CAT 5e Extender System, Black, 100-240V Power Adapter - UK |
| 00-00484 | Icron USB 3 Raven 3301-ECO -AU | 1-Port USB 3 100m CAT 5e Extender System, Black, 100-240V Power Adapter - AU |
| 00-00485 | Icron USB 3 Raven 3301-ECO -JP | 1-Port USB 3 100m CAT 5e Extender System, Black, 100-240V Power Adapter - JP |
| 10-00536 | USB Mounting Kit - Black | USB Extender Mounting Kit (Black) Each kit includes: 2 brackets, 4 locking washers and 4 (M2.5x8mm) Phillips raised cheese head screws (Order: 1 kit per local or remote extender; 2 kits per system) |
