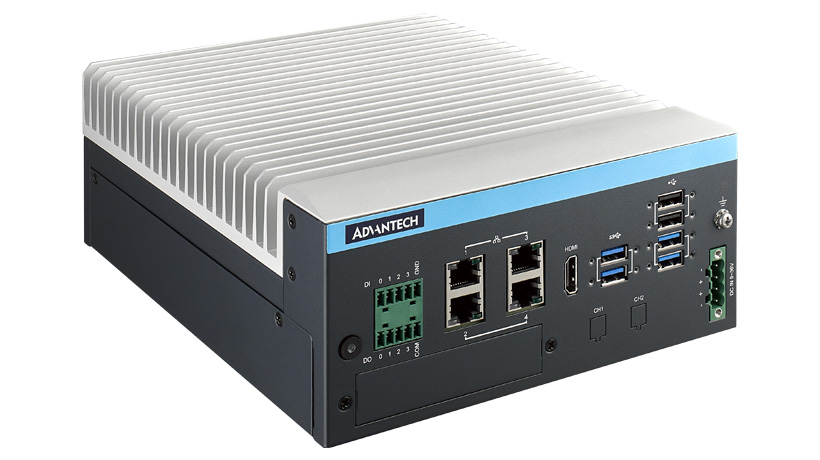

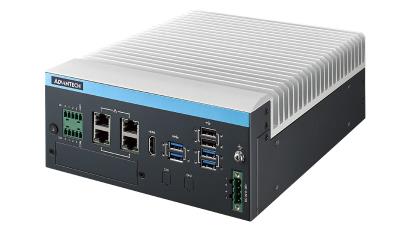

Advantech MIC-733-AO
AI Inference System Based on NVIDIA® Jetson AGX Orin
Properties
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- Compact fanless design
- Embedded with NVIDIA® Jetson AGX Orin up to 275 TOPS
- Supports 4 x GbE (optional PoE), 4 x USB 3.2 Gen 2 (10 Gbit/s)
- Supports 2 x mPCIe, 2 x Nano SIM slots
- Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified devices
AI Inference System Based on NVIDIA® Jetson AGX Orin
Specifications
| NVIDIA® Jetson AGX Orin | |||
|---|---|---|---|
| MIC-733-AO5A1 | MIC-733-AO6A1 | ||
| Processor | NVIDIA Jetson Series | AGX Orin 32G | AGX Orin 64G |
| CPU | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 |
12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3 |
|
| GPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores, Maximum Operating Frequency: 930 MHz |
2048-core NVIDIA Ampere GPU with 64 Tensor Cores] Maximum Operating Frequency: 1.3GH |
|
| Al Performance Reference | Up to 200 TOPs | Up to 275 TOPs | |
| Memory | 32GB 256-bit LPDDR5 DRAM | 64GB 256-bit LPDDR5 DRAM | |

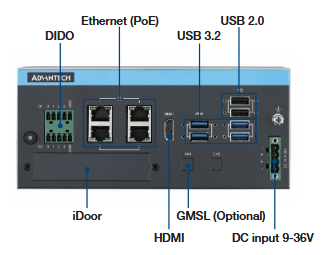

| I/O | Ethernet | 4 x 10/100/1000 Mbps (Optional PoE support, IEEE 802.3af/at) | |
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) | ||
| USB | External: 2 x USB 2.0, 4 x USB 3.2 Gen 2 Internal: 1 x USB 2.0 |
||
| Digital I/O | 4-ch DI, 4-ch DO | ||
| Power Switch | 1 x Power ON/OFF Button | ||
| Serial Ports | 2 x RS-232/422/485 (On-board pin header) | ||
| OTG USB | 1 x Micro USB | ||
| Expansion | iModule (Optional) | 1 x PCIe x8 (MIC-75M10-00A2) | |
| Mini PCIe | 2 x mPCIe (Signal: PCIe+USB)/td> | ||
| SIM | 2 x Nano SIM slots | ||
| M.2 | 1 x M.2 3052 (B-Key, Signal: USB) | ||
| TPM (Optional) | 1 x TPM 2.0 | ||
| GMSL (Optional) | 2-ch GMSL2.0 with FAKRA connectors | ||
| iDoor (Optional) | 1 x iDoor bracket reserve | ||
| Storage | M.2 | 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) | |
| SD Card | 1 x Micro SD slot | ||
| Power | Mode | AT/ATX (Default AT) | |
| Input Voltage | 9 ~ 36 VDC, 16-4A | ||
| Environment | Operating Temperature | -10 ~ +60 °C with 0.7 m/s airflow (MaxN mode) | |
| Operating Humidity | 95% @ 40 °C (non-condensing) | ||
| Vibration | 3Grms @ 5 ~ 500 Hz, random, 1 hr/axis | ||
| Shock | 10G / 11 ms | ||
| Mechanical | Dimensions (W x D x H) | Core Module: 192 x 230 x 87 mm (7.55" x 9.05" x 3.43") Plus MIC-75M10: 192 x 230 x 111 mm (7.55" x 9.05" x 4.37") |
|
| Weight | 4.5 kg (9.9 lb) | ||
| Installation | Desktop / Wall mount | ||
| BSP | Jetpack | Above 5.0 | |
| Certifications | UL/CB/CE/FCC/BSMI/CCC (No RED certification) | ||
Ordering Information
| Part Number | NVIDIA Module | Memory | eMMC |
|---|---|---|---|
| MIC-733-AO5A1 | AGX Orin | 32 GB | 64 GB |
| MIC-733-AO6A1 | AGX Orin | 64 GB | 64 GB |
Optional
| Part Number | Description |
|---|---|
| 96PSA-A230W24P4-3 | Adaptor A/D, 100-240V, 230W, 24V |
| 96PSA-A150W19P4-4 | Adaptor A/D, 100-240V, 150W, 19V |
| 1702002600 | Power Cord (USA) UL/CSA, 3-pin, 10A, 125V, 1.83 M, 180 D |
| 1700029019-01 | Power Cord (PSE/BSMI), 3-pin, 7A, 125V, 1.8 M, DAC-ST01 |
| 1702002605 | Power Cord (EU) 2-pin, 10/16A, 220V, 1.83 M, 90 D |
| 1960065854N021 | PCM series module bracket for supporting idoor cover fixing |
| MIC-75M10-00A2 | iModule (1 x PCIe x8) |
| 98RV710AL00 | Allxon OOB module |
| 98917330010 | Add-on 4 ports PoE Module |
| PCA-TPMSPI-00A1 | TPM 2.0 Module by SPI interface |
| 1700019968 | F Cable 2x10P-2.0/D-SUB 9P(M)x2 15CM for On-board serial ports pin header extension |
| 1960068789T008 | IDOOR COMX2 Cover for On-board serial ports pin header extension |
| MIC-FG-4G2C1 | 4CH GMSL2 frame grabber with FAKRA |
