Advantech WISE-4250-S214

The WISE-4250 series is a wireless IoT solution designed for industrial applications. This Ethernet-based device is compatible with various I/O and sensors and integrates data acquisition, processing, and publishing functions. It supports real-time P2P communication between devices, enabling edge intelligence without a central controller, making it ideal for applications requiring rapid response and distributed control. Furthermore, a watchdog timer and smart roaming ensure stable device operation in any environment. The WISE- 4250 also prioritizes data security, with a data logger, data recovery function, WPA3/TLS1.3 encryption, and IP whitelisting to prevent data loss and unauthorized access. Best of all, it supports MQTT, Modbus, and RESTful APIs, enabling you to easily publish data to various cloud platforms for data-driven decision-making.

• WLAN Standard
  IEEE 802.11a/b/g/n/ac


• Modulation
  802.11b : CCK(11, 5.5Mbps), DQPSK(2Mbps), BPSK(1Mbps)
  802.11a/g/n/ac : OFDM


• Transmit Power 2.4 GHz
  802.11b: 16.0 dBm ±2dBm
  802.11g: 14.0 dBm ±2dBm
  802.11n: 12.0 dBm ±2dBm
  5 GHz
  802.11a: 13.0 dBm ±2dBm
  802.11n: 10.0 dBm ±2dBm
  802.11ac: 8.0 dBm ±2dBm


• Wireless Security
  X.509 (TLS1.2/1.3), WPA2/WPA3 Personal and Enterprise


• Antenna Connector: RP-SMA
  Gain (Peak): 2.4G 3.64 dBi / 5G 5.65 dBi


• Connectors
  Plug-in-and-play I/O and sensor modules


• Watchdog Timer
  System (1.6 second) and Communication (programmable)


• Certification
  CE, FCC, IC, TELEC, NBTC

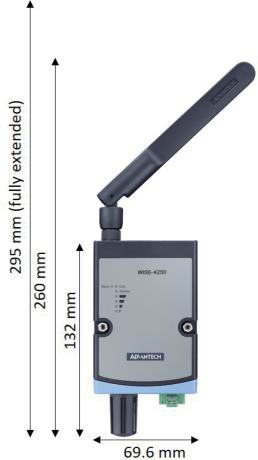

• Dimensions (W x H x D)
  70 x 102 x 38 mm


• Enclosure
  PC


• Mounting
  DIN 35 rail, wall, stack, and pole


• Power Input
  10 ~ 50 VDC


• Power Consumption
  1.6W @ 24 VDC


• RTC Accuracy
  ±2 second/day


• Cloud
  Dropbox, WebAccess, iSensing MQTT, IFTTT, Azure, AWS, Azure MQTT, Line messaging API


• Reliability Test
  IEC60068-2-64 Vibration broadband random test
  Package Drop Test


• Support wireless P2P (Peer to Peer) with AES-128 encryption and UDP protocol


• Support MQTT data recovery function


• Support smart roaming function and 802.11k/v/r


• Supports User Defined Modbus Address


• Power Reversal Protection


• Supports Data Log
  10000+ samples with SNTP/RTC sync time stamp


• Supported Protocols
  Modbus/TCP, TCP/IP, SNMP V2, SNTP, UDP, DHCP, HTTP(S), and MQTT


• Supports RESTful API Client/Server in JSON format


• Supports Web Server in HTML5 with JavaScript & CSS3


• Supports System Configuration Backup and User Access Control

• Operating Temperature
  -25 ~ 70°C (-13~158°F)


• Storage Temperature
  -40 ~ 85°C (-40~185°F)


• Operating Humidity
  10 ~ 85% RH (non-condensing)


• Storage Humidity
  0 ~ 60% RH (non-condensing)

Standard (Technology)
WIFI

Frequency Band
IEEE 802.11 a/b/g/n/ac 2.4/5 (GHz)

Certification
CE, FCC, RoHS, TELEC, NBTC

Watchdog Timer
1.6 s

LED Indicators
Status, Line-power, Wireless Com, Initial/Normal, Signal Strength

Power Consumption
1.2 W @ 24 VDC

Operating Temperature
-25~70 °C (-13~158 °F)

Relative Humidity
20~95% RH (non-condensing)

Vibration Protection
2 Grms, random

Storage Temperature
-40~85 °C (-40~185 °F)

Storage Humidity
0~95% RH (non-condensing)

Isolation Voltage
3,000 VDC

Input Voltage
10~50 VDC

Weight (Net)
160 g

Mounting
DIN 35 rail, Wall, Pole

Antenna
1x SMA hole on the top

Channels
4

Input Range
±0.15V, ±0.5V , ±1V, ±5V, ±10V, ±20 mA, 0~20 mA, 4~20 mA

Sampling Rates(S/s)
10 Hz (sum)

Burn-out Detection
Yes (4~20 mA only)*

Resolution(Bits)
16-bit

Channels
4

Counting Range
32-bit

Max. Input Frequency
200 Hz
