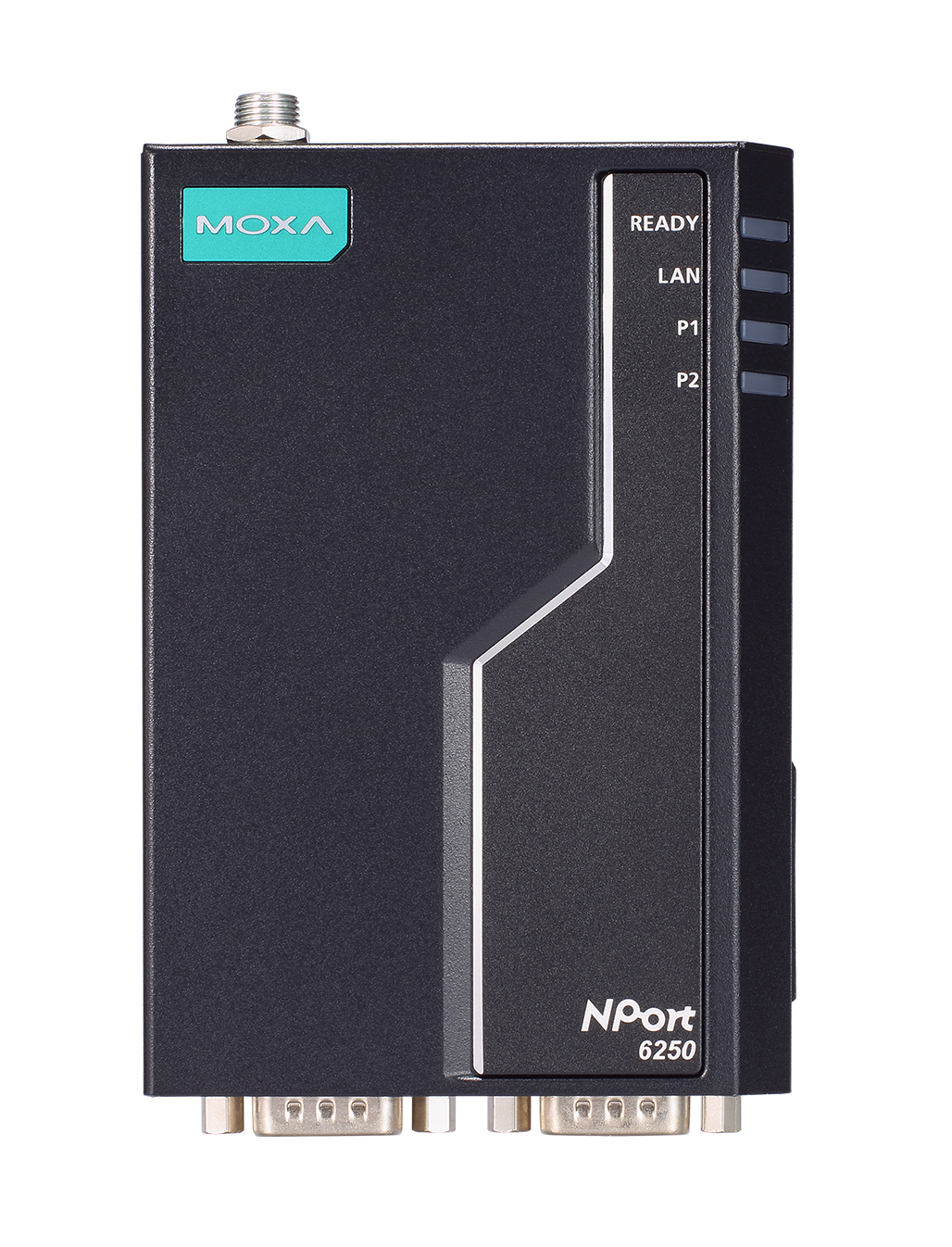

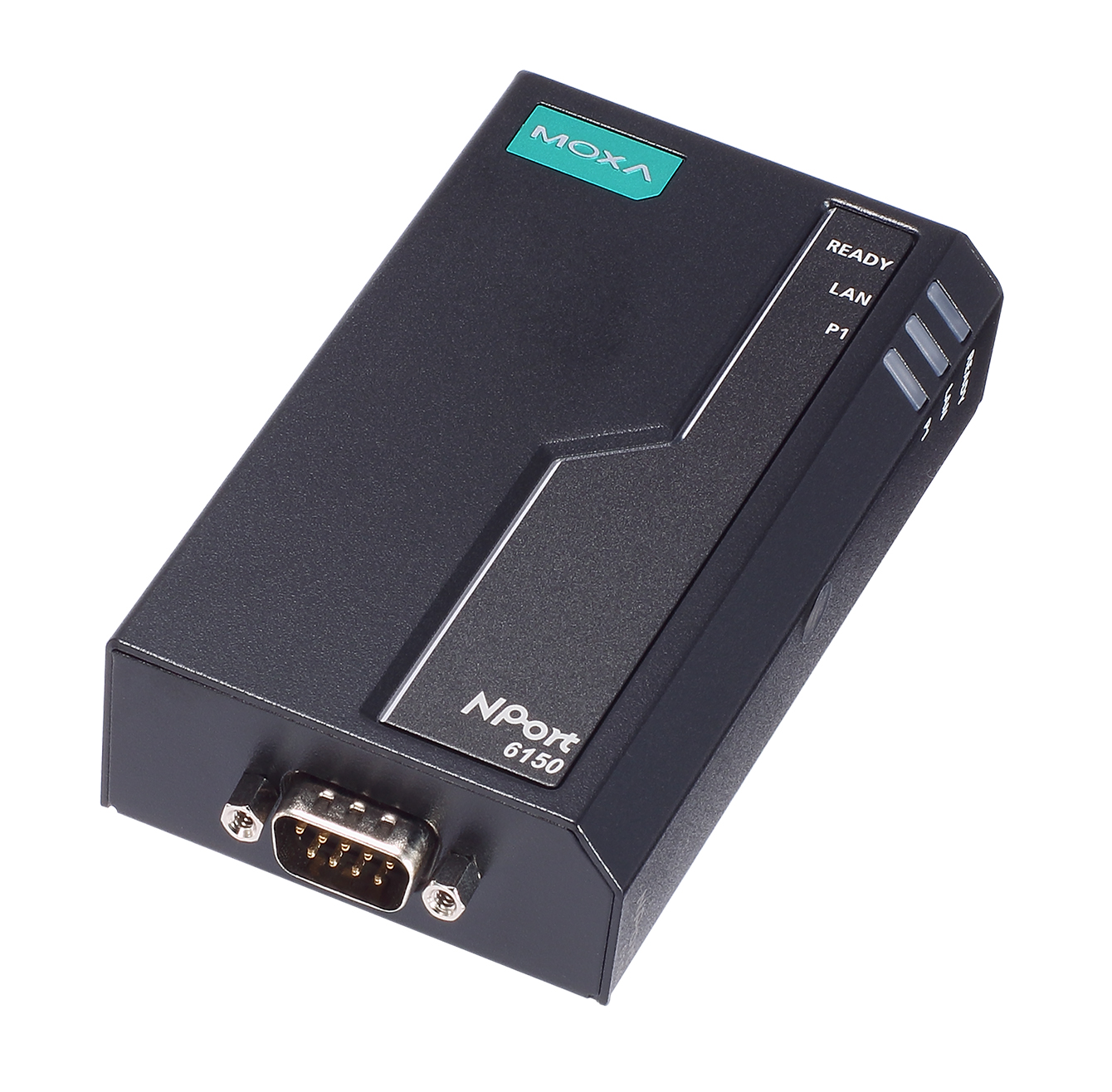

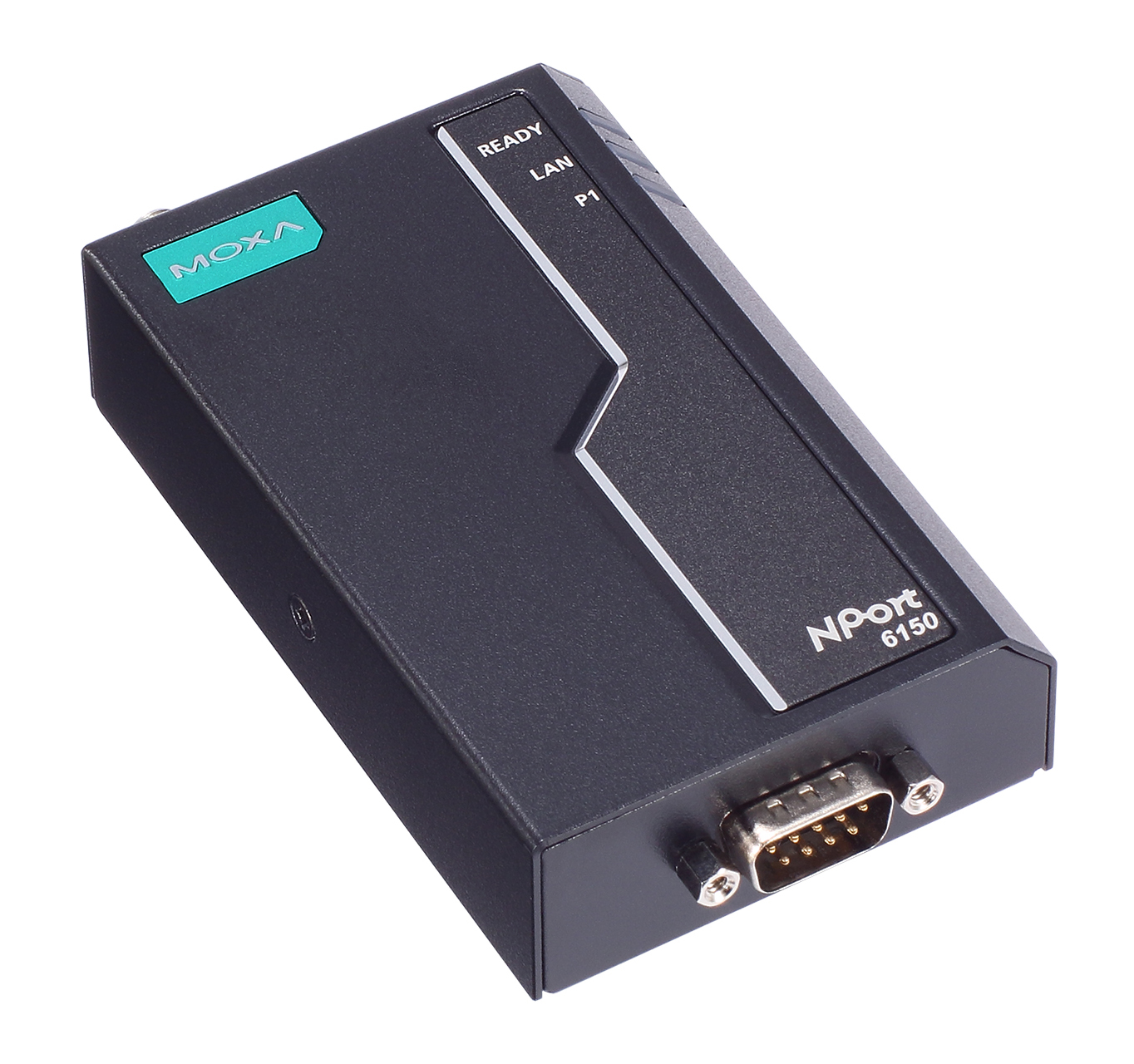

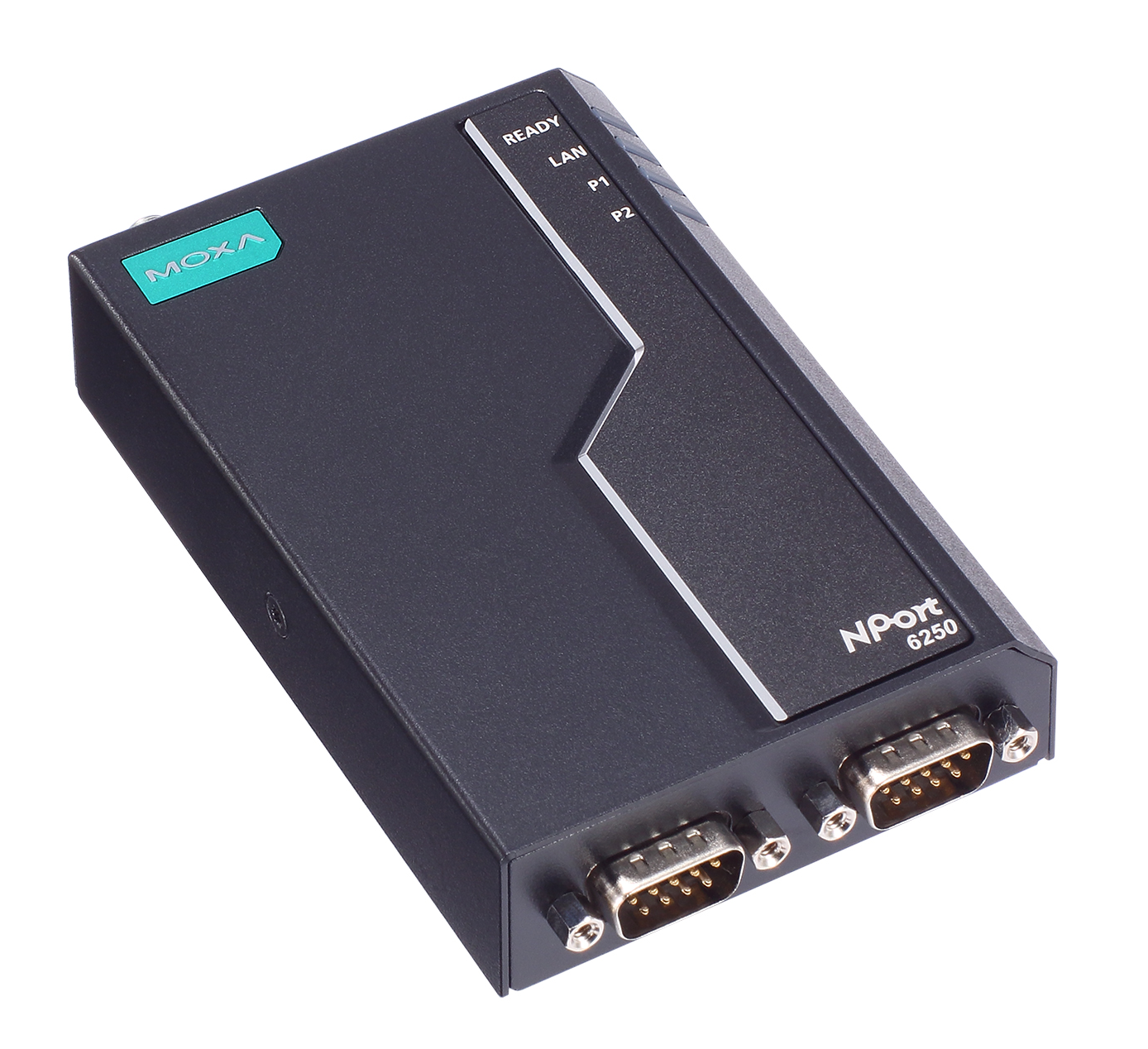

MOXA NPort 6100-G2/6200-G2 Series
2nd Gen 1/2-port RS-232/422/485 secure terminal servers
Properties
Description
Further Information
Similar products
Print this page
Request Price
show my notes
PDF
Properties
Description
Further Information
PDF
- Data encryption with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
- Supports SSL certificate signing by RSA-4096 / ECC-521
- Secure Boot only allows Moxa-authorized firmware to run on devices
- Side-mount installation option and two-sided LEDs to meet all installation scenarios and enable system downsizing
- Easy RS-485 configuration of serial interfaces with software-adjustable pull high/low resistor and terminator
Moxa has leveraged IEC 62443-4-1 secure development lifecycle process to develop a new generation of secure terminal servers. The NPort 6100- G2/6200-G2 Series secure terminal servers follow the IEC 62443-4-2 design and guidelines to securely connect your legacy serial devices to industrial networks. In addition, the user experience is enhanced based on Moxa's 35 years of experience in the serial-connectivity field by providing versatile installation means for different space requirements and an easy troubleshooting tool for maintenance.
Secure Data Transmission
For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6100-G2/6200-G2 secure terminal servers support the TLS and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6100-G2/6200-G2, you can be rest assured that serial data is transmitted securely over both private and public networks.
Easy Provisioning With Side-mount and Software-configurable Pull High/low Resistors and Terminator
In line with the trend for smaller systems and easier setup, the NPort® 6100-G2/6200-G2 secure terminal servers support side-mount installation and two-sided LEDs to fit in a variety of installation scenarios with the added benefit of reduction in the system size. The software-configurable pull high/low resistors and terminator function eliminate the requirement to open the chassis to adjust the pull high/low resistors or terminators, making it convenient for operators to install the devices at field sites.
Easy Troubleshooting With One-click Log Collection
At the maintenance stage, system errors may require you to call for help. Device vendors might take a long time to troubleshoot issues because they need to collect information and then hold discussions with the technical support team. The NPort 6100-G2/6200-G2 comes with a one-click log collection function to enable logging of data, which can provide all the data that a technical support team needs to quickly troubleshoot system issues.
Specifiation
| Memory | |
|---|---|
| SD Slot | NPort 6200-G2 models: microSD card Up to 2 TB (high speed, 25 Mbps) |
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | 1 Auto MDI/MDI-X connection |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Ethernet Software Features | |
| Configuration Options | Web Console (HTTP/HTTPS) Windows Utility Device Search Utility (DSU) MCC Tool Serial Console |
| Management | ARP DHCP Client DNS HTTPS ICMP IPv4/IPv6 SMTP SMTPS SNMPv1/v2c/v3 SNTP TCP/IP UDP WINS |
| Windows Real COM Drivers | Windows 11, 10, 8.1, 8, and 7 Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2 |
| Linux Real TTY Drivers | Kernel versions 6.x, 5.x, and 4.x |
| Fixed TTY Drivers | macOS versions: 14, 13, 12, and 11 |
| Arm®-based Platform Support | Windows 11 Linux kernel 6.x, 5.x, and 4.x macOS 14, 13, 12, and 11 |
| Virtual Machine | VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x) VMware Fusion (Windows on macOS 14, 13, 12, and 11) Parallels Desktop (Windows on macOS 14, 13, 12, and 11) |
| Time Management | SNTP Client |
| MIB | MIB-II RFC1213, RFC1317 Private MIB |
| Unicast Routing | RIPV1/V2 Static Route |
| Security Functions | |
| Root of Trust | Secure Boot True Random Number Generator (TRNG) Security Screws |
| Authentication | Local database RADIUS TACACS+ |
| Encryption | AES-128 AES-256 ECC-256 ECC-384 ECC-521 HMAC RSA-1024 RSA-2048 RSA-3072 RSA-4096 SHA-256 SHA-384 |
| Security Protocols | HTTPS (TLS 1.2) SNMPv3 SSHv2 |
| Serial Interface | |
| Connector | DB9 male |
| No. of Ports | NPort 6150-G2 models: 1 NPort 6250-G2 models: 2 |
| Serial Standards | RS-232 RS-422 RS-485 |
| Secure Operation Modes | Reverse SSH Secure Pair Connection Secure Real COM Secure TCP Client Secure TCP Server SSH |
| Standard Operation Modes | Disabled Pair Connection SLIP PPP Real COM Reverse Terminal RFC2217 TCP Client TCP Server Terminal UDP |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Flow Control | None RTS/CTSDTR/DSR RTS Toggle XON/XOFF |
| Parity | None, Even, Odd, Space, Mark |
| RS-485 Data Direction Control | Automatic Data Direction Control (ADDC) |
| Terminator for RS-485 | 120 ohms |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms (software-configurable) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Power Parameters | |
| Input Current | 12 to 48 VDC, 160 mA (max.) |
| Input Voltage | 12 to 48 VDC |
| Reliability | |
| Automatic Reboot Trigger | Built-in WDT |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions (with ears) | NPort 6150-G2 models: 64 x 111.8 x 25 mm (2.52 x 4.4 x 0.98 in) NPort 6250-G2 models: 76.3 x 122.4 x 25 mm (3 x 4.82 x 0.98 in) |
| Weight | Product with package: NPort 6150-G2: 228 g (0.50 lb); 437 g (0.96 lb) NPort 6150-G2-T: 228 g (0.50 lb); 302 g (0.67 lb) NPort 6250-G2: 278 g (0.61 lb); 487 g (1.07 lb) NPort 6250-G2-T: 278 g (0.61 lb); 352 g (0.78 lb) |

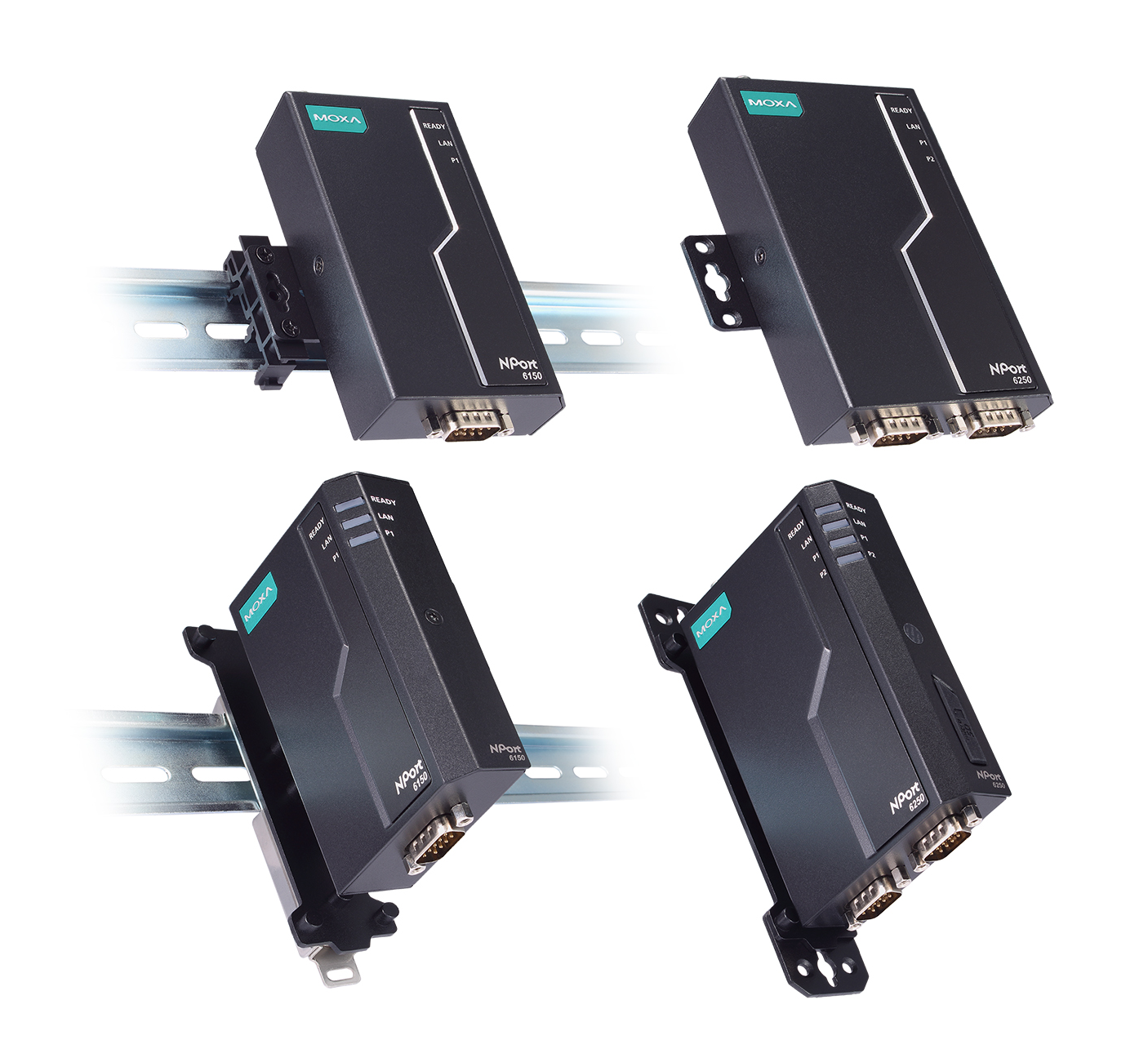

| Installation | Desktop DIN-rail mounting (with optional kit) Wall mounting (with optional kit) Side-panel mounting (with optional kit) |
| Environmental Limits | |
| Operating Temperature | Standard models: -10 to 60°C (14 to 140°F) Standard models with power adapter (in the box): 0 to 40°C (32 to 104°F) Wide temp. models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF IEC 61000-4-11 |
| Traffic Control | NEMA TS2 |
| Vibration | IEC 60068-2-6 |
| Package Drop Test | ISTA 1A |
| Safety | IEC 62368-1 UL 62368-1 EN 62368-1 |
| International Approval | KC |
| Declaration | |
| Green Product | RoHS, CRoHS, WEEE |
| MTBF | |
| Time | NPort 6150-G2/6150-G2-T: 3,843,653 hrs NPort 6250-G2/6250-G2-T: 3,351,651 hrs |
| Standards | Telcordia Standard SR-332 Telcordia SR-332 Issue 4 |
| Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Package Contents | |
| Device | 1 x NPort 6100-G2/6200-G2 Series terminal server |
| Power Supply | 1 x power adapter, suitable for your region (except for -T models) |
| Installation Kit | 1 x wall-mounting kit (WK-32-01) |
| Documentation | 1 x quick installation guide 1 x warranty card |
Ordering Information
| Model Name | Ethernet Interface |
No. of Serial Ports | SD Card Support | Operating Temp. | Power Supply Included |
|---|---|---|---|---|---|
| NPort 6150-G2 | RJ45 | 1 | - | -10 to 60°C | ✔ |
| NPort 6150-G2-T | RJ45 | 1 | - | -40 to 75°C | - |
| NPort 6250-G2 | RJ45 | 2 | Up to 2 TB (high speed, 25 Mbps) |
-10 to 60°C | ✔ |
| NPort 6250-G2-T RJ45 | RJ45 | 2 | Up to 2 TB (high speed, 25 Mbps) |
-40 to 75°C | - |
Accessories (sold separately)
| Cables | |
| CBL-F9M9-20 | DB9 female to DB9 male serial cable, 20 cm |
| CBL-F9M9-150 | DB9 female to DB9 male serial cable, 1.5 m |
| Connectors | |
| ADP-RJ458P-DB9F | DB9 female to RJ45 connector |
| Mini DB9F-to-TB | DB9 female to terminal block connector |
| LB-DB9F-G-01 | Serial loopback DB9 adaptor |
| DIN-Rail Mounting Kits | |
| DK-115-01 | DIN-rail mounting kit with 1 plate (89 x 19 mm), 3 M3 x 5 mm screws and SK-115-01 side-mounting kit |
| DK-43-01 | DIN-rail mounting kit with 2 plates (42.5 x 19.3 mm), 4 M3 x 6 mm screws ( black) |
| Wall-Mounting Kits | |
| WK-32-01 | Wall-mounting kit with 2 plates (32 x 29.5 mm), 4 M3 x 6 mm screws |
| Side-mounting Kits | |
| SK-115-01 | Side-mounting kit with T-shaped mounting bracket (81.2 x 115.0 mm), 4 M3 x 6 mm screws |
| Power Cords | |
| CBL-PJ21NOPEN-BK-30 | w/Nut CBL-PJ21NOPEN-BK-30 w/Nut |
| Power Adapters | |
| PWR-12050-AU-S1 | Locking barrel plug, 12 VDC, 0.5 A, 100 to 240 VAC, AU plug, 0 to 40°C operating temperature |
| PWR-12050-CN-S1 | Locking barrel plug, 12 VDC, 0.5 A, 100 to 240 VAC, CN plug, 0 to 40°C operating temperature |
| PWR-12050-EU-S1 | Locking barrel plug, 12 VDC, 0.5 A, 100 to 240 VAC, EU plug, 0 to 40°C operating temperature |
| PWR-12050-KR-S1 | Locking barrel plug, 12 VDC, 0.5 A, 100 to 240 VAC, KR plug, 0 to 40°C operating temperature |
| PWR-12050-UK-S1 | Locking barrel plug, 12 VDC, 0.5 A, 100 to 240 VAC, UK plug, 0 to 40°C operating temperature |
| PWR-12050-USJP-S1 | Locking barrel plug, 12 VDC, 0.5 A, 100 to 240 VAC, US/JP plug, 0 to 40°C operating temperature |
| PWR-12150-AU-SA-T | Locking barrel plug, 12 VDC, 1.5 A, 100 to 240 VAC, AU plug, -40 to 75°C operating temperature |
| PWR-12150-CN-SA-T | Locking barrel plug, 12 VDC, 1.5 A, 100 to 240 VAC, CN plug, -40 to 75°C operating temperature |
| PWR-12150-EU-SA-T | Locking barrel plug, 12 VDC, 1.5 A, 100 to 240 VAC, EU plug, -40 to 75°C operating temperature |
| PWR-12150-UK-SA-T | Locking barrel plug, 12 VDC, 1.5 A, 100 to 240 VAC, UK plug, -40 to 75°C operating temperature |
| PWR-12150-USJP-SA-T | Locking barrel plug, 12 VDC 1.5 A, 100 to 240 VAC, US/JP plug, -40 to 75°C operating temperature |
