Raritan Dominion KX III G2

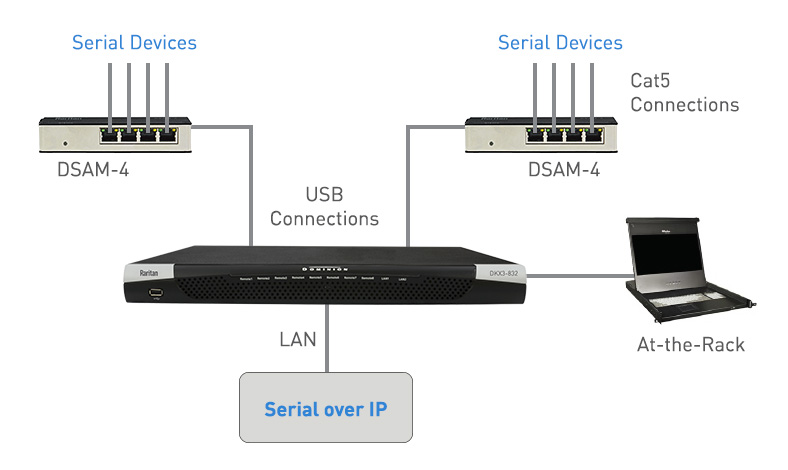

The Dominion KX III G2 is Raritan's flagship, enterprise-class KVM-over-IP switch that provides up to 8 users with BIOS-level, remote management of up to 64 servers in a single switch. With industry-leading video performance, security, and reliability, the Dominion KX III G2 outperforms the competition. With standard features such as DVI/HDMI/DisplayPort/USB-C digital video, VGA analog video, virtual media, audio, smart card/CAC with smart card/CAC/PKI login to KX III G2, and mobile access, the Dominion KX III G2 is suitable for both general computer and dynamic broadcast applications. Manage up to 8 serial devices with the DSAM modules. KX III G2 Client SDK and API to integrate and automate.

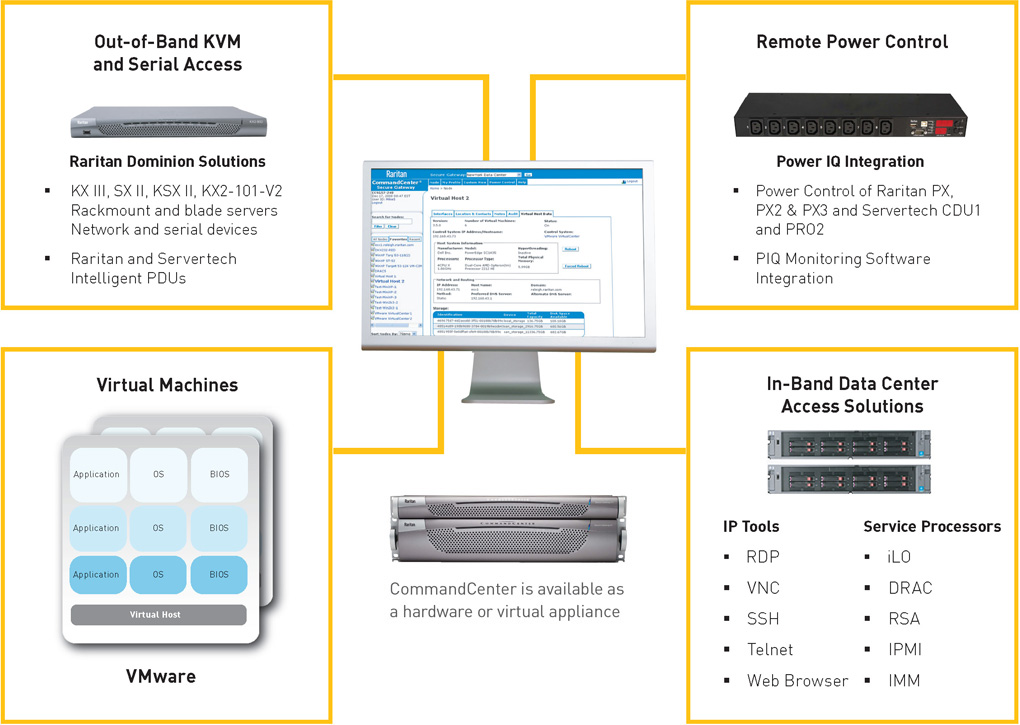

KX III G2 is ideal for Server Rooms, Healthcare IT environments, Test Labs, and the Largest Enterprise Data Centers. It offers high performance, Java-free, remote management of servers, workstations and serial devices. Deploy individually, or with Raritan's CommandCenter Secure Gateway.

For broadcast, control rooms, labs and studios, the KX III and KX IV Enhanced User Station provide high-performance, KVM-over-IP access in two self-contained, low-maintenance appliances. The productive user interface supports multiple 1080p and 4K video sessions at 30 FPS with low latency, simultaneous access to multiple servers, three or four monitors, audio, and virtual media. The ultra performance Dominion KX IV Enhanced User Station supports the KX IV 101, 4K video resolution, up to 4 monitors, and has 3 times the performance of the KX III Enhanced User Station. The Enhanced User Stations integrate with CommandCenter to support centralized login and access for large deployments.

The KX III G2 Software Development Kit (SDK) and Application Programming Interface (API) are available free of charge for automation purposes and custom application development. This includes the Management API, which provides access to control and manage the device features.

• Browser-based, Java-free BIOS-level access and control
• Java-free universal virtual media for remote admin tasks
• Remote booting via CD, DVD, USB, internal and remote drives, and images
• Remote power control for Raritan rack PDUs
• Perfect mouse synchronization without changing server ouse settings
• Play and record digital audio
• Chinese and Japanese language support

• Connect via LAN, WAN, modem or internet
• Manage centrally via CC-SG; or standalone
• Mobile access on iOS devices directly or via CC-SG
• External telephone for emergency access
• Native Windows and HTML5 KVM clients support Windows, iOS, Linux, and Mac users
• Multi-browser access for Internet Explorer, Chrome, and Firefox

• Models with 64 ports
• CIMs available for USB, USB-C, and USB with virtual media
• CIMs supporting analog VGA video, HDMI, USB-C, and DisplayPort Video
• Support for Dell, HP, and Cisco servers
• Tiering support for up to 1,024 servers *Coming Soon
• Scales to thousands of servers with Raritan's CommandCenter
• Java-free KVM Clients for Windows, iOS, Linux, and Mac
• Integrate and automate with our SDK & API

Secure And Reliable

• Uses FIPS 140-2-certified cryptographic module
• Smart card / CAC authentication ? local and remote
• Direct KX III G2 login via smart cards, CAC, and PKI
• 256-bit AES encryption
• Dual power supplies and dual Gigabit Ethernet with failover
• All data encrypted, including video transmissions and virtual media
• Secure Linux-based appliance
• Local or centralized authentication via LDAP, AD, and RSA SecurID via RADIUS
• Dual-stack networking: IPv4 and IPv6
• Configurable user and group permissions
• User-configurable TCP ports
• Supports strong password protection
• Customizable security banner
• Utilize existing digital security certificates
• SNMP v2 and v3 management, Syslog, Email alerts
• Configurable TLS versions
• IEEE 802.1X authentication

Optimized For Dynamic Video Applications

• Broadcast, entertainment, and gaming
• Military and government
• Security and surveillance
• Scientific, aviation, weather, transportation
• Industrial, manufacturing and factory
• Command and control, operations centers

• 1920x1200 HD Analog & Digital video
• Up to 60 FPS HD Video with audio
• HDMI Local Port provides fast GUI performance
• High-quality video with low bandwidth and low 50 msec latency
• Full-screen video display and flexible video scaling
• Dual monitor support
• Dual video cards with extended desktop
• Supports 1920x1080, 1920x1200 and 1600x1200 remote video resolutions
• High (24-bit) color palette support

• Two hardware appliances for broadcast studios, labs, and control rooms
• Productive, easy-to-use, multi-monitor user interface
• Simultaneously view and control 8 or more servers and IP sessions
• Can even work across 4, 6, 9, or more monitors
• RDP, VNC, VMware, web links, and SSH access
• Use standalone or with CommandCenter

1. Users over the network are simultaneous. Up to 8 users can view/control a single server with PC Share®
2. All models have dual power supply, dual LAN, and support Virtual Media and Absolute Mouse Synchronization.
3. For more information on required CIMs, please see the KX III G2 CIM Guide

Dominion KX III KVM-over-IP Clients

Dominion KX III G2 has three software-based KVM-over-IP Clients: AKC, HKC, and VKC. Users interact with these Clients to access and control remote servers. AKC is a full-featured, Java-free Client, used on Windows. HKC is our Java-free, browser-based Client for Linux, iOS and Mac platforms. VKC is the original full-featured, Java-based KVM Client for all platforms.

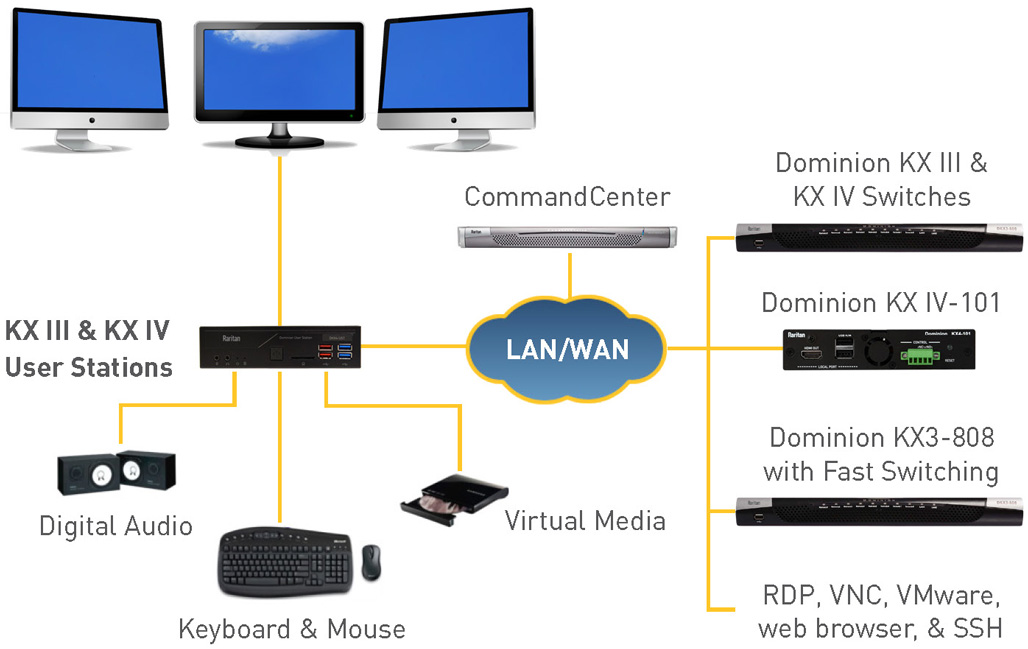

The KX III Enhanced User Station provides high-performance, KVM-over-IP access for broadcast, control rooms and studios. This Linux-based, hardware appliance supports two 1080p video sessions at 30FPS with 50ms latency.

A CIM is a "server dongle" that connects a PC, server or workstation to the KX III via a Cat5/6 cable. There are multiple types of CIMs to support the different types of computer ports (USB, PS/2, VGA, HDMI, DVI, DisplayPort, serial) and to perform features such as virtual media. Use the table below to locate the appropriate CIM. For more detailed information, consult the KX III G2 CIM Guide.
